Descriere

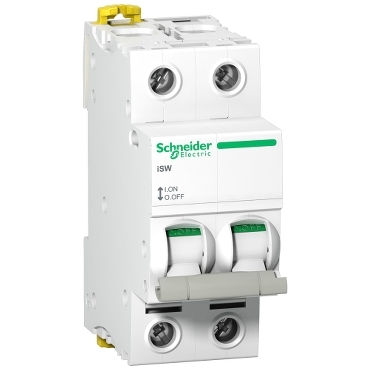

Separator iSW, 2P, 63 A, 415 V
Documente
Fisa tehnica
Specificatii
| Electrical | |
| Rated current | 63 A |
| Rated voltage | 240 V |
| Rated switching capacity | 5 kA |
| Voltage type | AC |
| Short-circuit breaking capacity (Icw) | 1.26 kA |
| Number of poles | 2 |
| Min. rated voltage | 415 V |
| Max. lamp power | - |
| Measurements | |
| Built-in depth | 75.5 mm |
| Width in number of modular spacings | 2 |
| Model/type | |
| With signal lamp | No |
| Switching function | Off switch |
| Lamp type | - |
| Other | |
| Imprint/indication | Other |
| Lamp socket | - |
| Colour | |
| Colour calotte | Grey |
| Connection | |
| Number of contacts as normally open contact | 2 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Approval/certification | |
| Forced segregation according to DIN VDE 0113 | Yes |
| Protection | |
| Degree of protection (IP) | IP20 |
| Package 1 | |
| volume | 248,4 cm3 |
| weight | 167 g |
| length | 9,2 cm |
| width | 3,6 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480531095 |
| Package 2 | |
| volume | 1672 cm3 |
| weight | 1,058 kg |
| length | 22 cm |
| width | 9,5 cm |
| qmax | 6 |
| qmin | 6 |
| um | BX |
| gtin | 13606480531092 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 12,078 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 66 |
| qmin | 66 |
| um | CT |
| gtin | 43606480531093 |
| Package 4 | |
| weight | 109,352 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 528 |
| qmin | 528 |
| um | PF |
