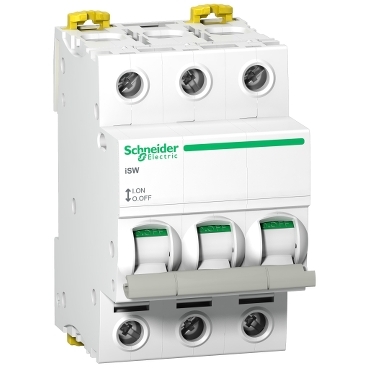

Specificatii
| Electrical | |
| Rated current | 63 A |
| Rated voltage | 240 V |
| Rated switching capacity | 5 kA |
| Short-circuit breaking capacity (Icw) | 1.26 kA |
| Voltage type | AC |
| Number of poles | 3 |
| Min. rated voltage | 415 V |
| Max. lamp power | - |
| Measurements | |
| Built-in depth | 75.5 mm |
| Width in number of modular spacings | 3 |
| Model/type | |
| With signal lamp | No |
| Switching function | Off switch |
| Lamp type | - |
| Other | |
| Imprint/indication | Other |
| Lamp socket | - |
| Colour | |
| Colour calotte | Grey |
| Connection | |
| Number of contacts as normally open contact | 3 |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Approval/certification | |
| Forced segregation according to DIN VDE 0113 | Yes |
| Protection | |
| Degree of protection (IP) | IP20 |
| Package 1 | |
| volume | 391,875 cm3 |
| weight | 250,8 g |
| length | 9,5 cm |
| width | 7,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480531101 |
| Package 2 | |
| volume | 1870 cm3 |
| weight | 1,059 kg |
| length | 22 cm |
| width | 10 cm |
| qmax | 4 |
| qmin | 4 |
| um | BX |
| gtin | 13606480531108 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 12,096 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 44 |
| qmin | 44 |
| um | CT |
| gtin | 43606480531109 |
| Package 4 | |
| weight | 108,768 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 352 |
| qmin | 352 |
| um | PF |
Accesorii

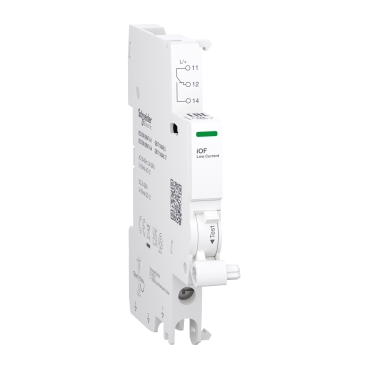

Acti9 A9A, Contact auxiliar low level, iOF, 1 C/O, 2mA-100mA, 24-250V C.A., 24-220V C.C.
Cod: A9A26914
Schneider Electric
Acti9 A9A, Contact auxiliar low level, iOF, 1 C/O, 2mA-100mA, 24-250V C.A., 24-220V C.C.
Cod: A9A26914
Schneider Electric
