Descriere

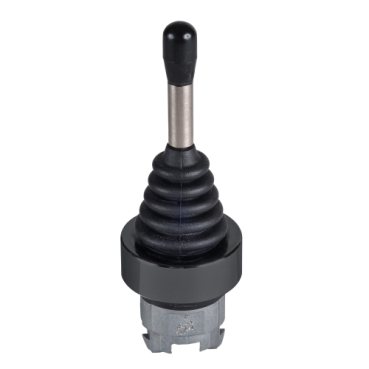

Cap de Controler cu Maneta de Comanda, Ø22, Bidirectional, Revenire cu Arc
Documente
Fisa tehnica
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| With retraction in 0-position | Yes |
| With front ring | Yes |
| Electrical | |
| Rated operation current Ie at AC-21, 400 V | 10 A |
| Connection | |
| Number of normally open contacts per actuation direction | 4 |
| Number of make-and-break contacts per direction | 0 |
| Number of normally closed contacts per actuation direction | 0 |
| Colour | |
| Colour front ring | Black |
| Options | |
| Coder | No |
| Analogue output signal configurable | No |
| Locking in 0-position | No |
| Setting/control | |
| Number of switch positions | 2 |
| Number of actuation directions | 2 |
| Measurements | |
| Joy stick length | 54 mm |
| Centre mounting, hole diameter | 22.5 mm |
| Material | |
| Material front ring | Metal |
| Protection | |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | Other |
| Package 1 | |
| volume | 160,888 cm3 |
| weight | 58 g |
| length | 9,1 cm |
| width | 5,2 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110823523 |
