Descriere

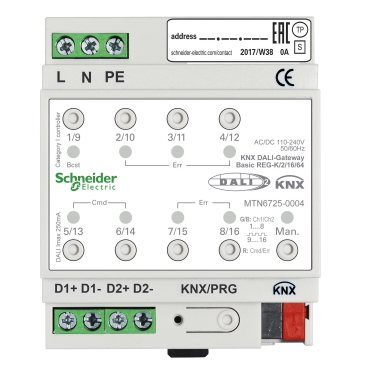

Gateway-ul KNX DALI conecteaza bus la 2 iesiri DALI Gateway-ul este un dispozitiv de control de categoria I DALI cu o sursa de alimentare DALI integrata pentru ECG-uri Dispozitivul este un controler unic conform EN 62386 ed/1 si ed/2
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Options | |
| Updateable | Yes |
| Visualization | No |
| Radio frequency bidirectional | No |
| Provider dependent | No |
| Communication | |
| Radio interface | No |
| IR interface | No |
| Bus system radio frequency | No |
| Bus system KNX-RF (Radio Frequency) | No |
| Bus system Powernet | No |
| Other bus systems | Other |
| Bus system KNX | Yes |
| Bus system LON | No |
| Protocol | Other |
| Electrical | |
| Operating voltage | 100 V |
| Voltage type | - |
| Power consumption | - |
| Model/type | |
| Model | Light system interface/DALI |
| Number of channels | - |
| Web-Server | No |
| Demounting protection | No |
| With LED indication | Yes |
| Measurements | |
| Width in number of modular spacings | 4 |
| Protection | |
| Degree of protection (IP) | IP20 |
| Other | |
| Max. number of devices per channel | - |
| Mounting/installation | |
| Mounting method | DRA (DIN-rail adaptor) |
| Package 1 | |
| volume | 1734,054 cm3 |
| weight | 228 g |
| length | 15,9 cm |
| width | 13,3 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489484057 |
| Package 2 | |
| volume | 72000 cm3 |
| weight | 6,984 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 28 |
| qmin | 28 |
| um | CT |
| gtin | 53606489484052 |
