Descriere

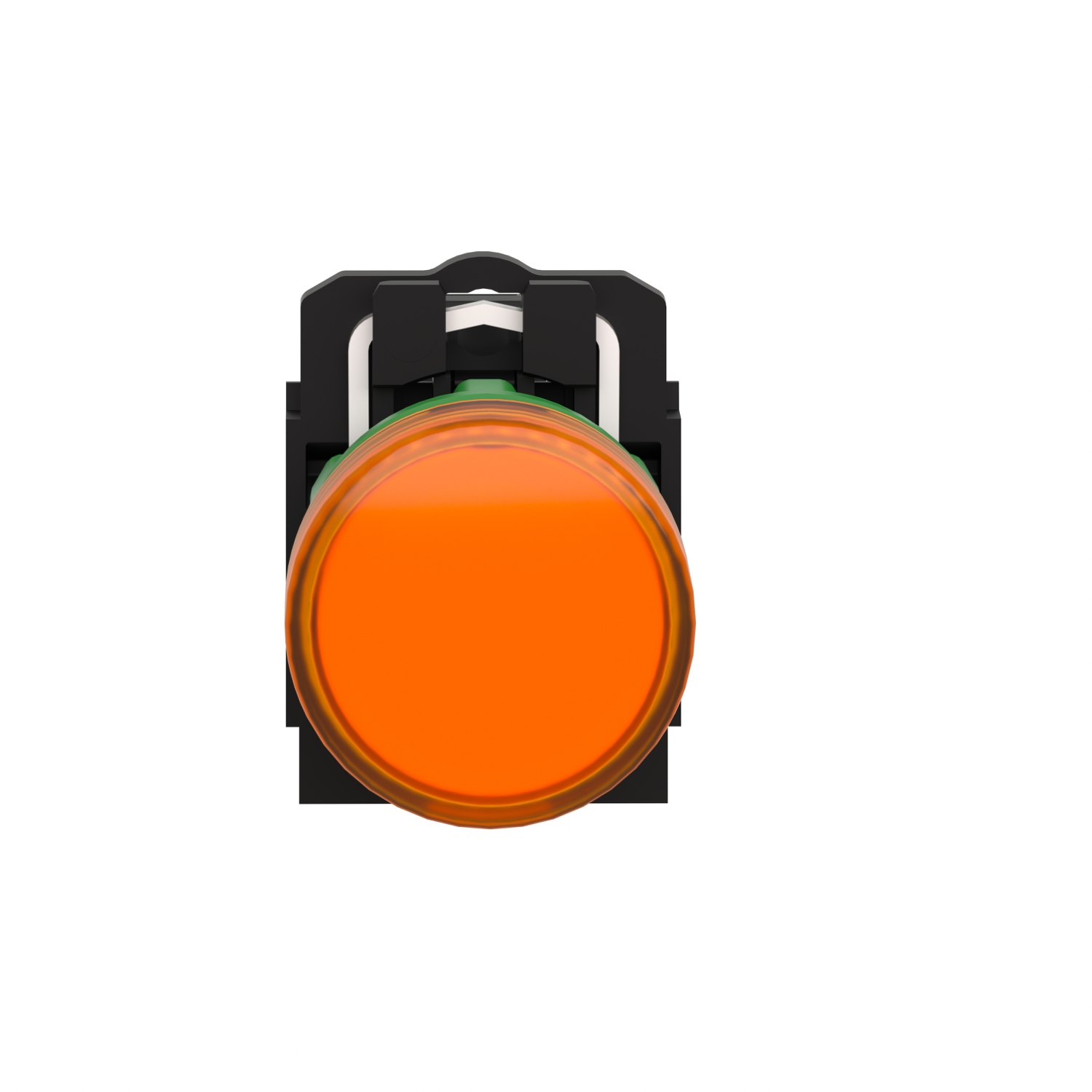

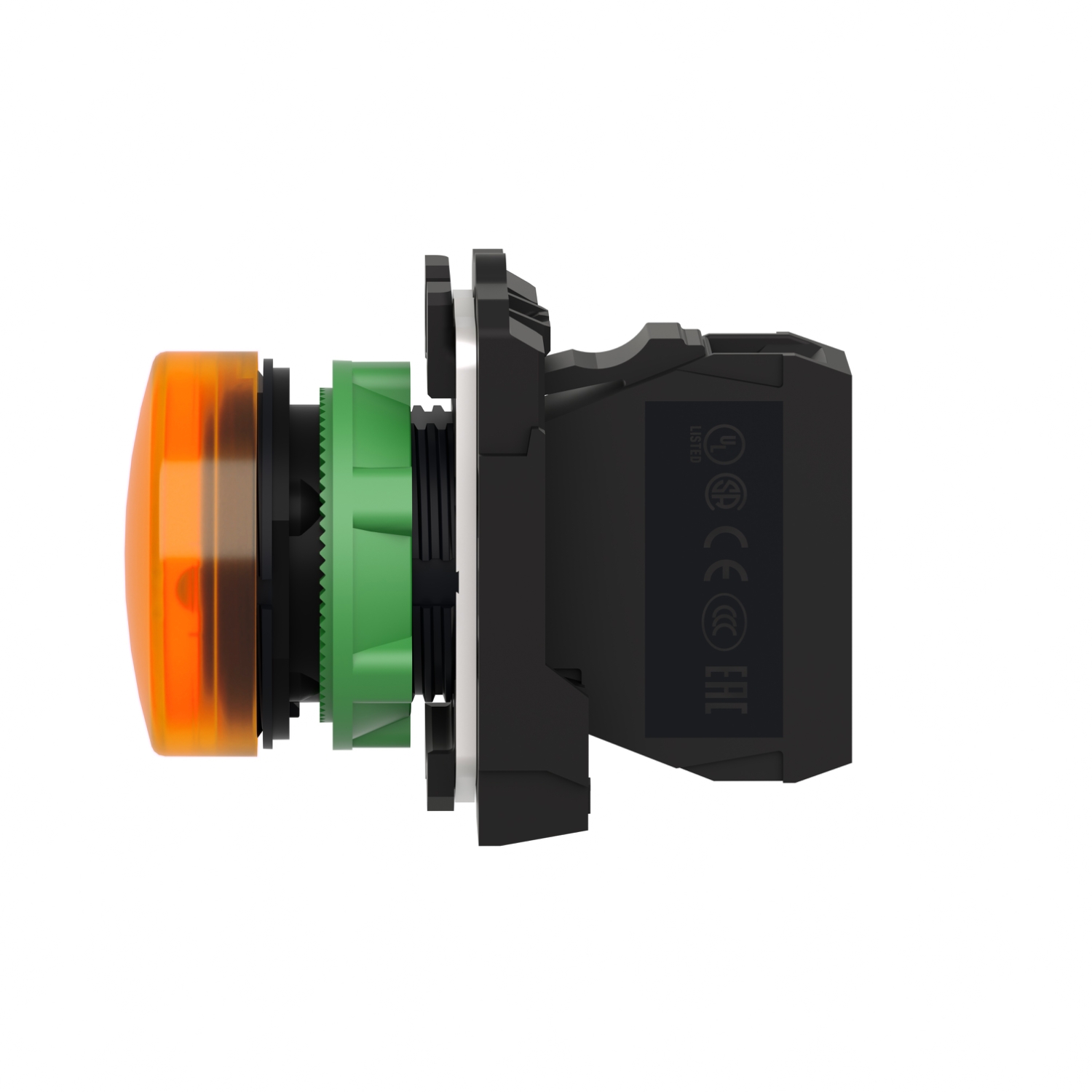

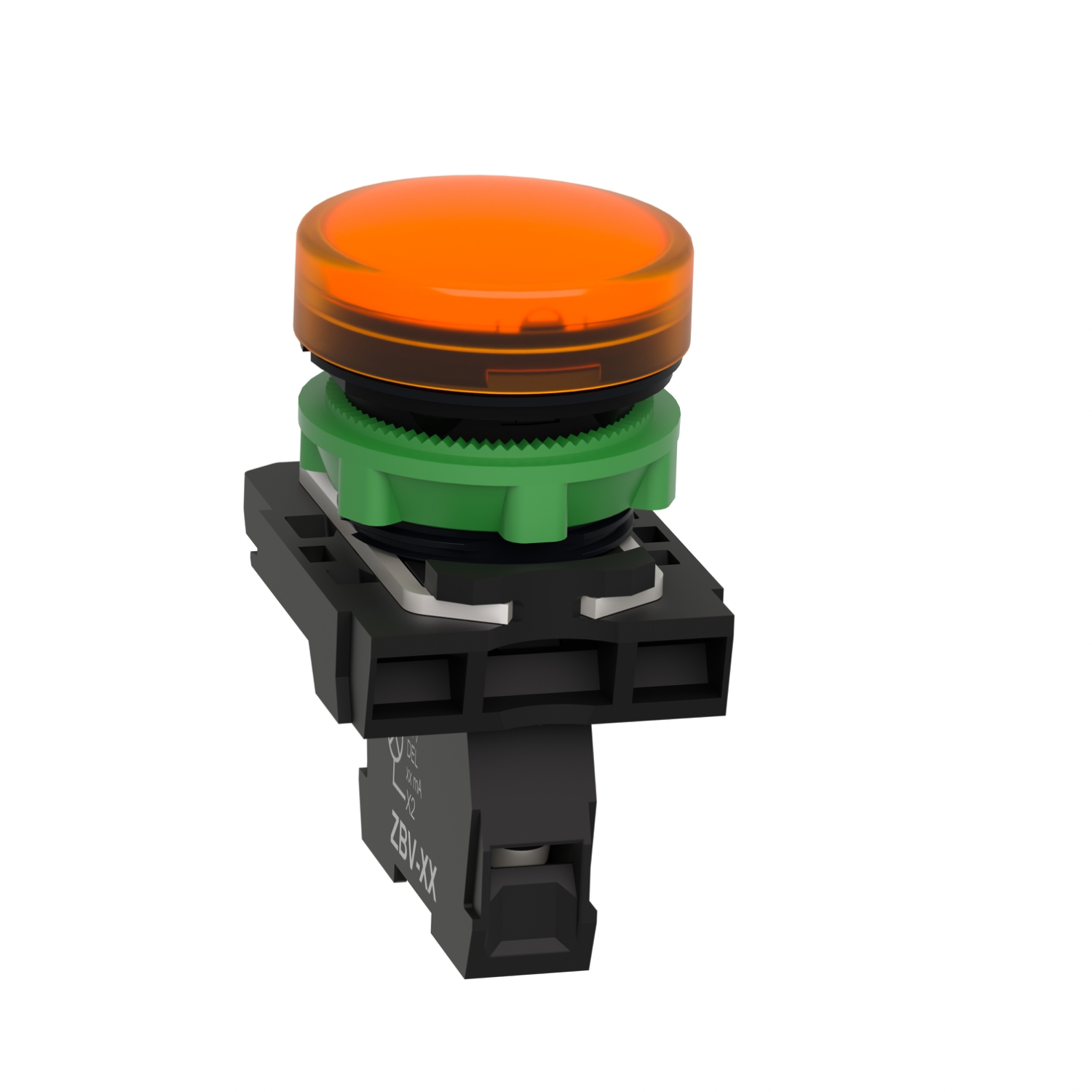

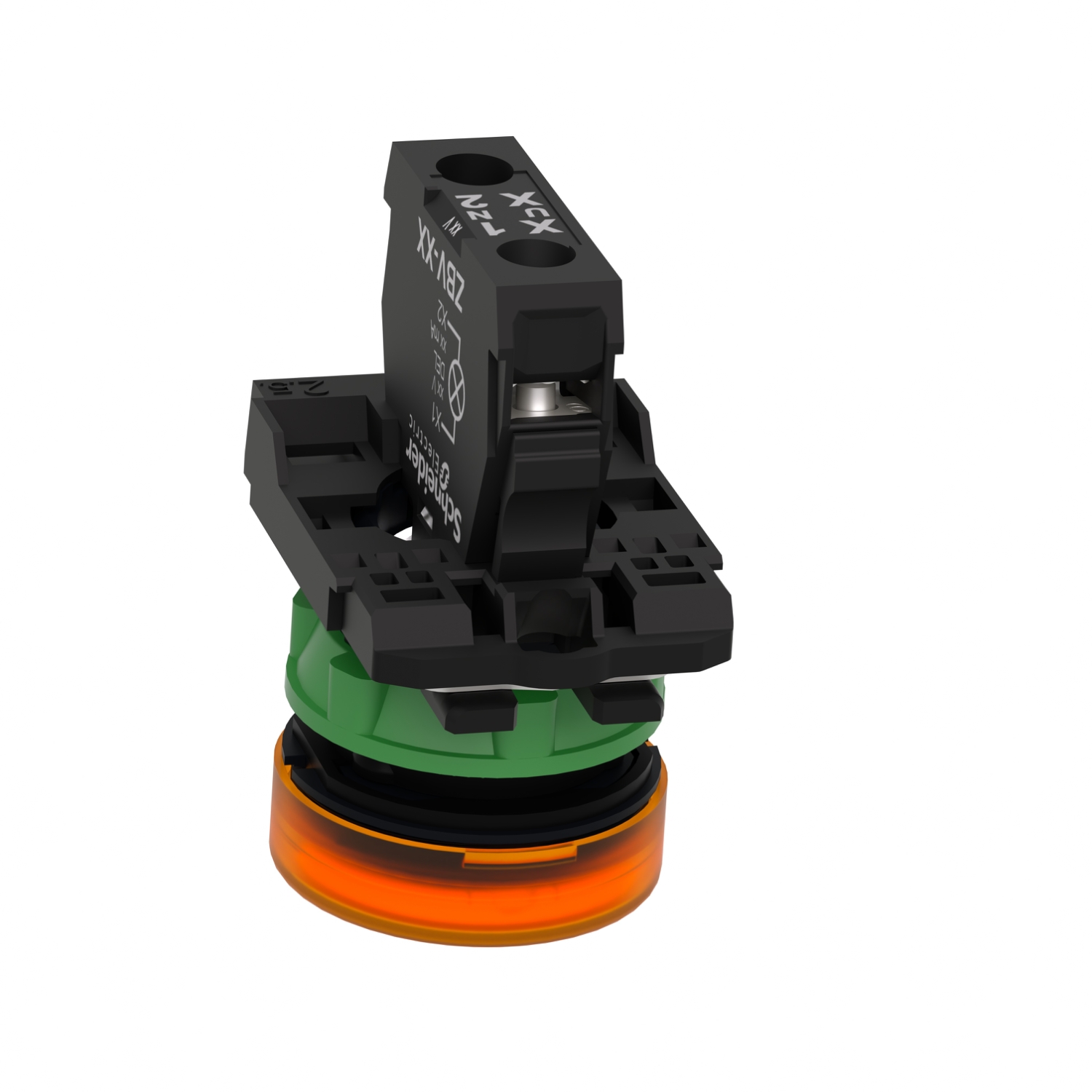

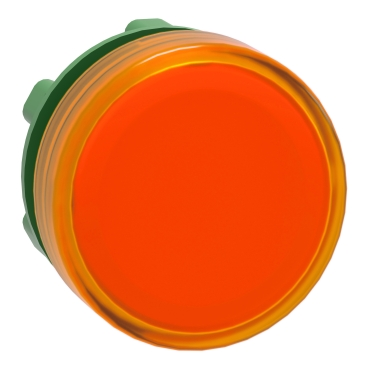

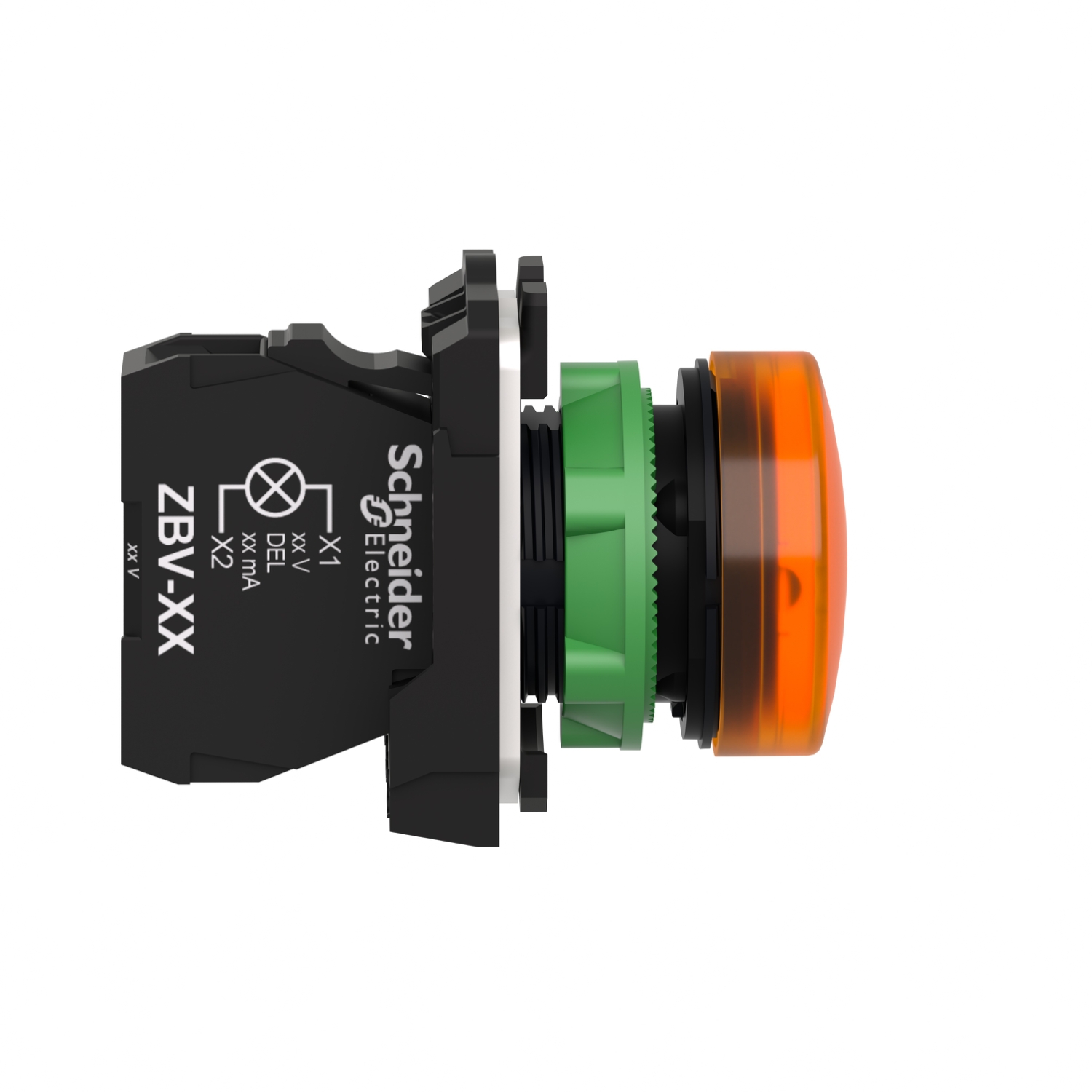

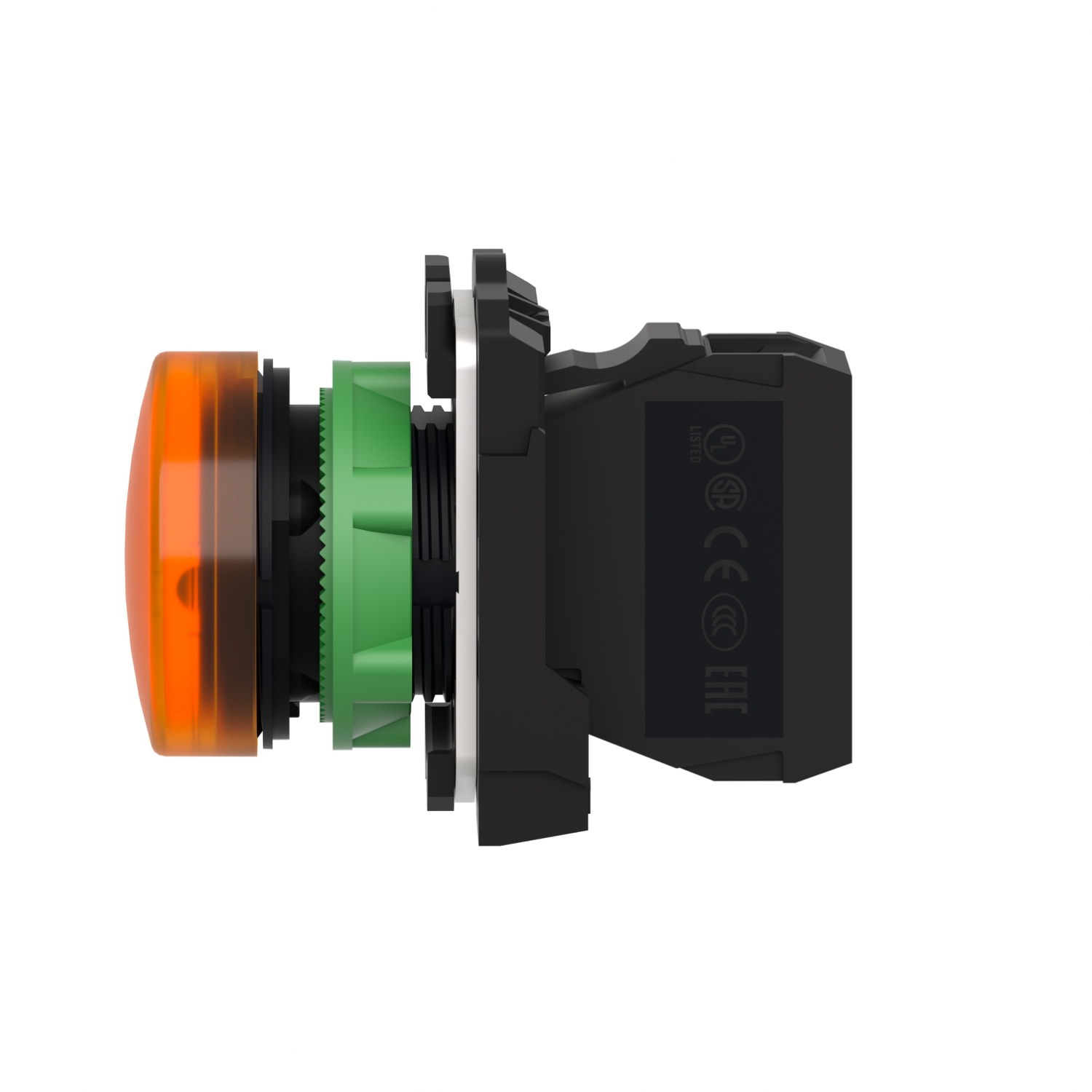

Lampa pilot rotund Ø 22, portocaliu, Led Integ., 230, 240 V, Borne Clema-surub
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| With light source | Yes |
| Number of indicator lights | 1 |
| Type of lamp socket | LED |
| Construction type lens | Round |
| With front ring | No |
| Type of lens | Flat |
| Colour | |
| Colour lens | Orange |
| Colour front ring | Black |
| Electrical | |
| Rated operating voltage Ue | 230 V |
| Voltage type | AC/DC |
| Connection | |
| Type of electric connection | Screw connection |
| Measurements | |
| Width opening | - |
| Hole diameter | 22.5 mm |
| Height opening | - |
| Material | |
| Material front ring | Plastic |
| Protection | |
| Degree of protection (IP) | IP66 |
| Degree of protection (NEMA) | 13 |
| Package 1 | |
| volume | 161,568 cm3 |
| weight | 36 g |
| length | 5,4 cm |
| width | 3,4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110903874 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 5,802 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 150 |
| qmin | 150 |
| um | CT |
| gtin | 43389110903872 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 56,292 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 1200 |
| qmin | 1200 |
| um | PF |
