Descriere

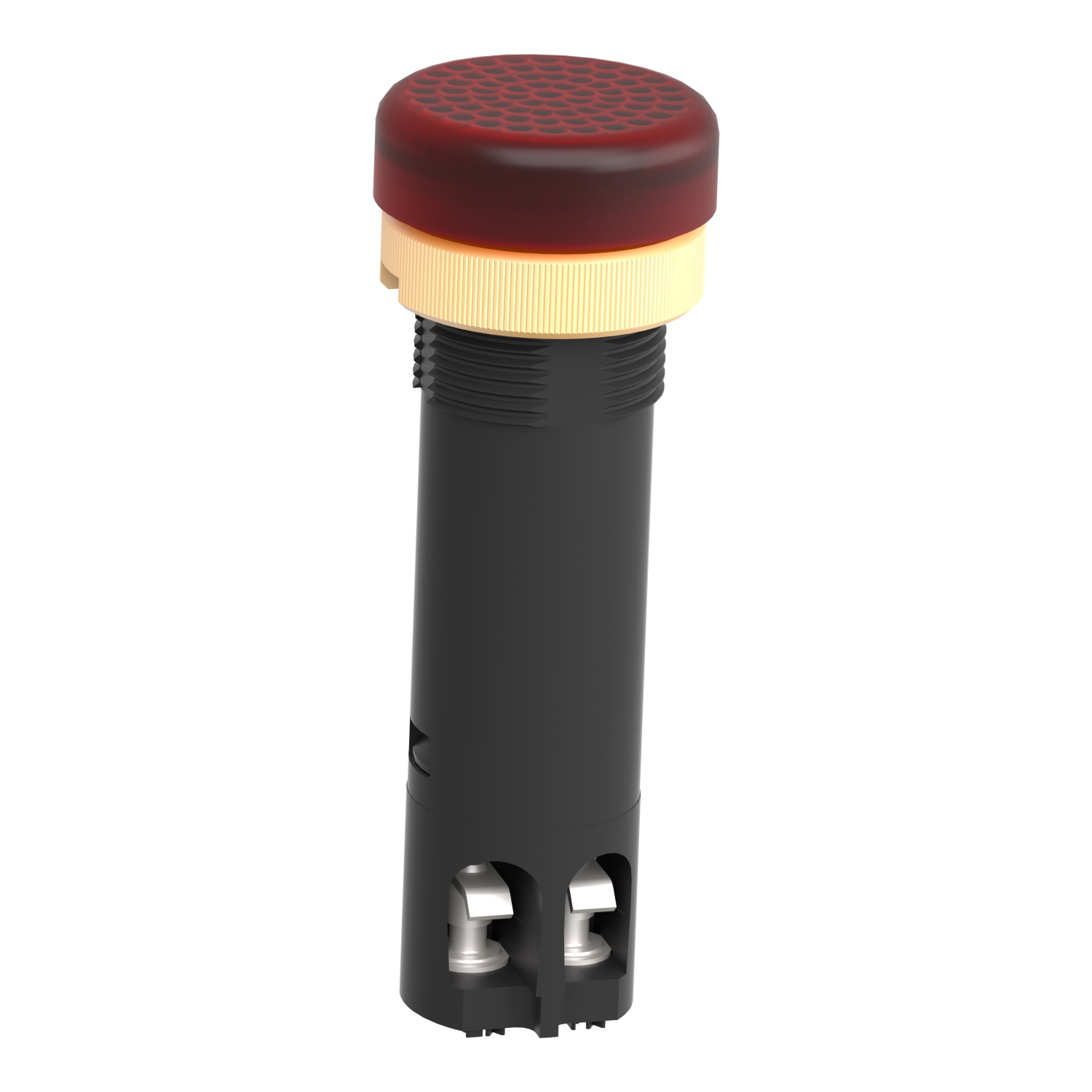

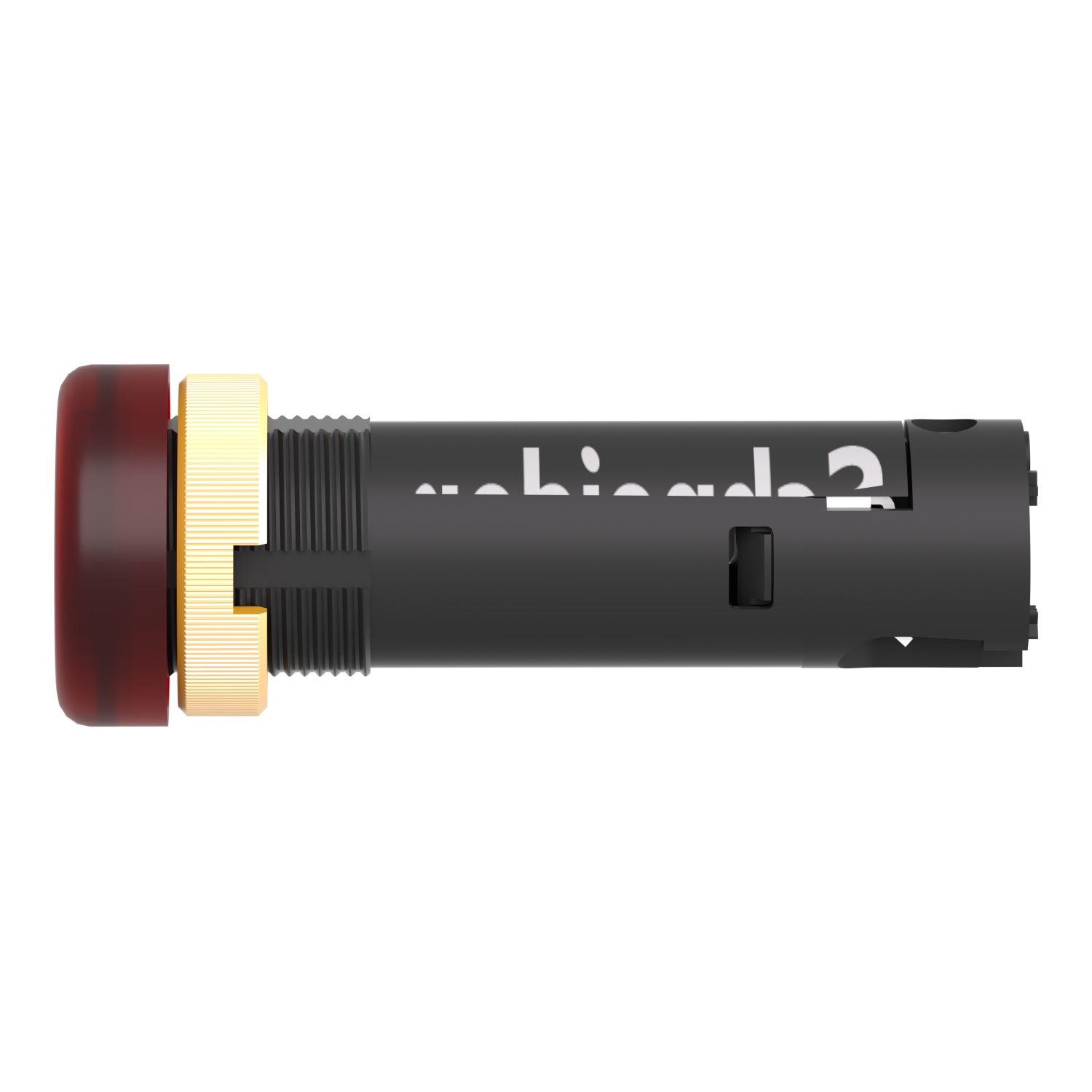

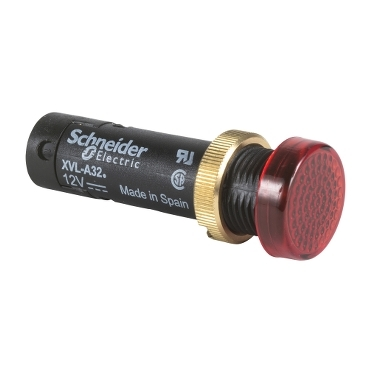

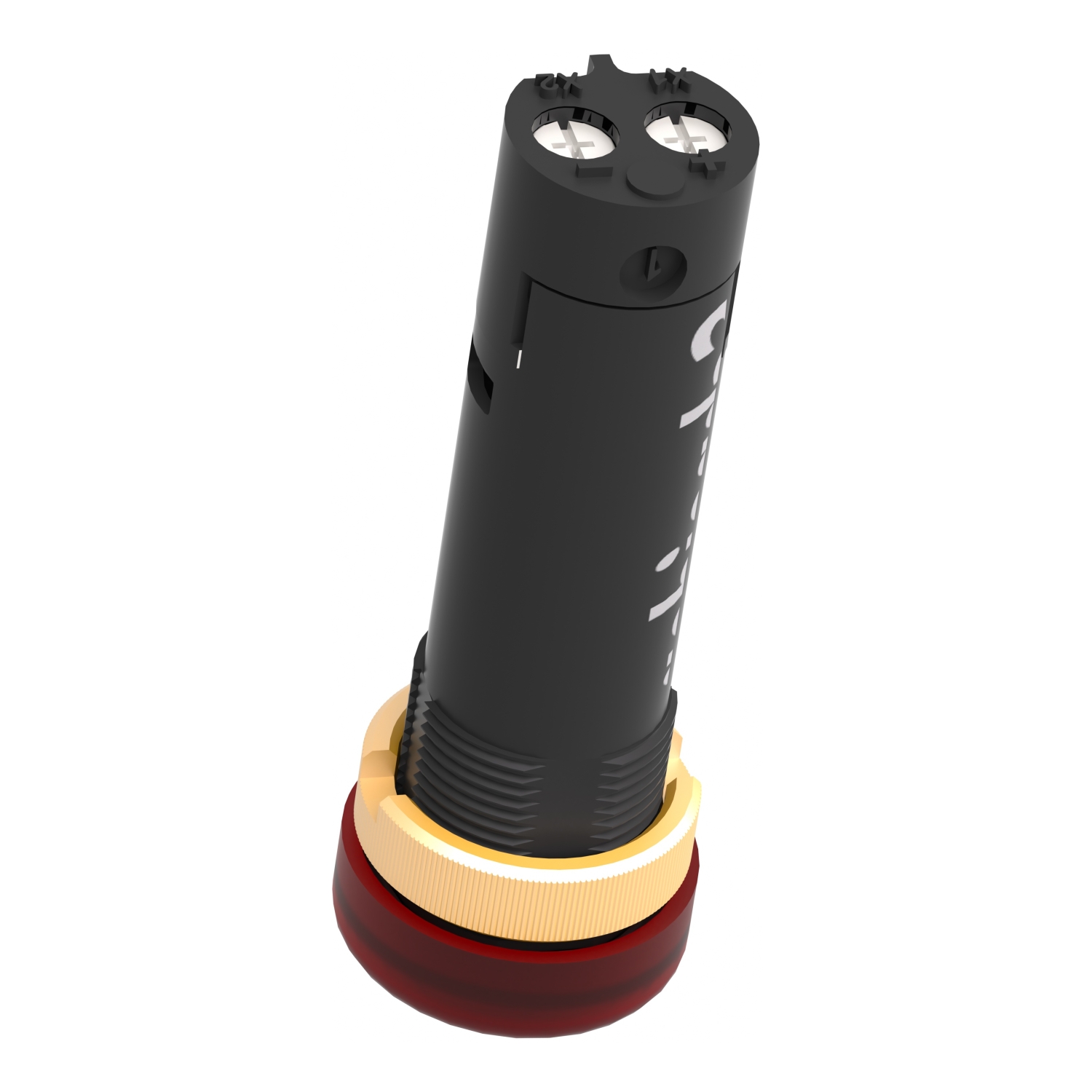

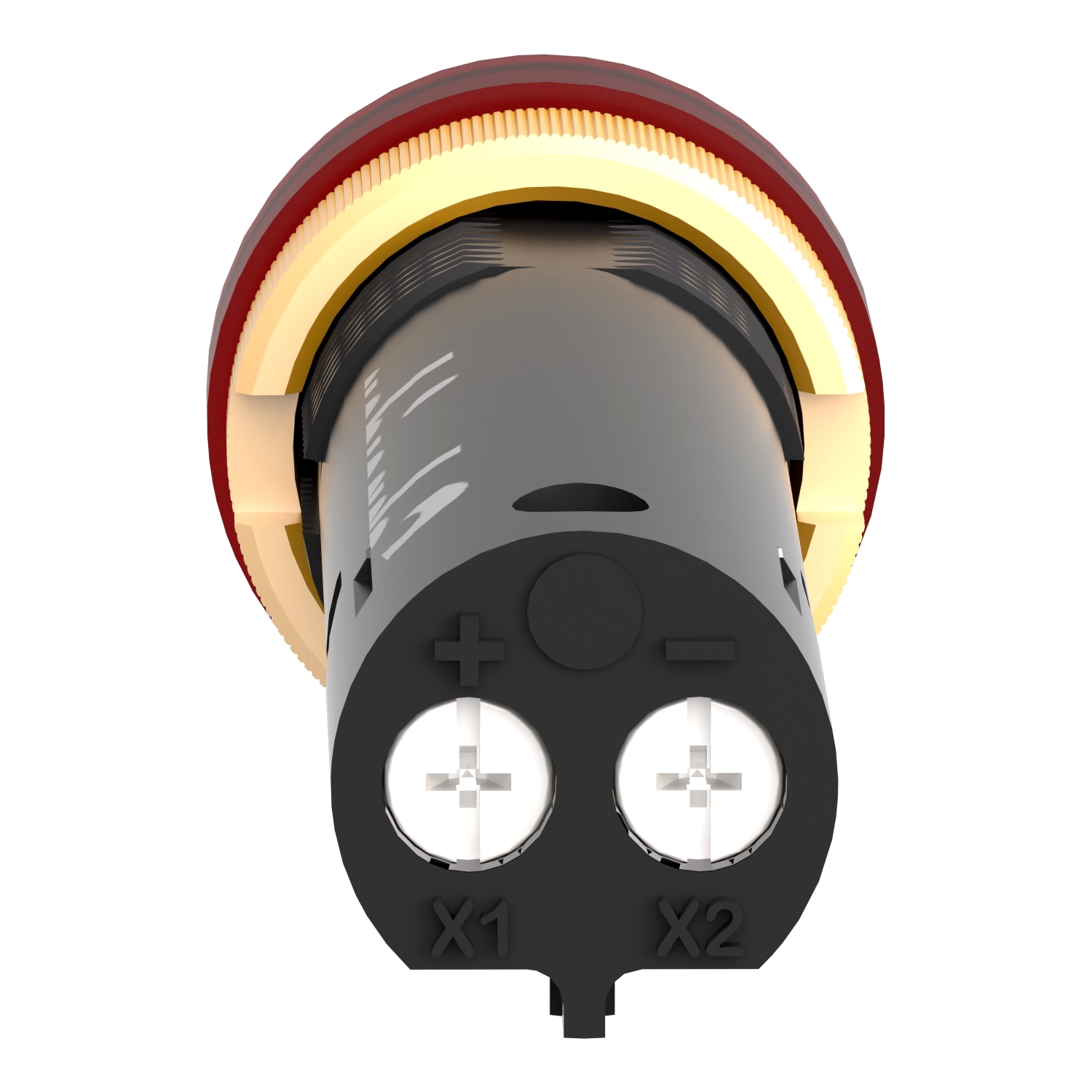

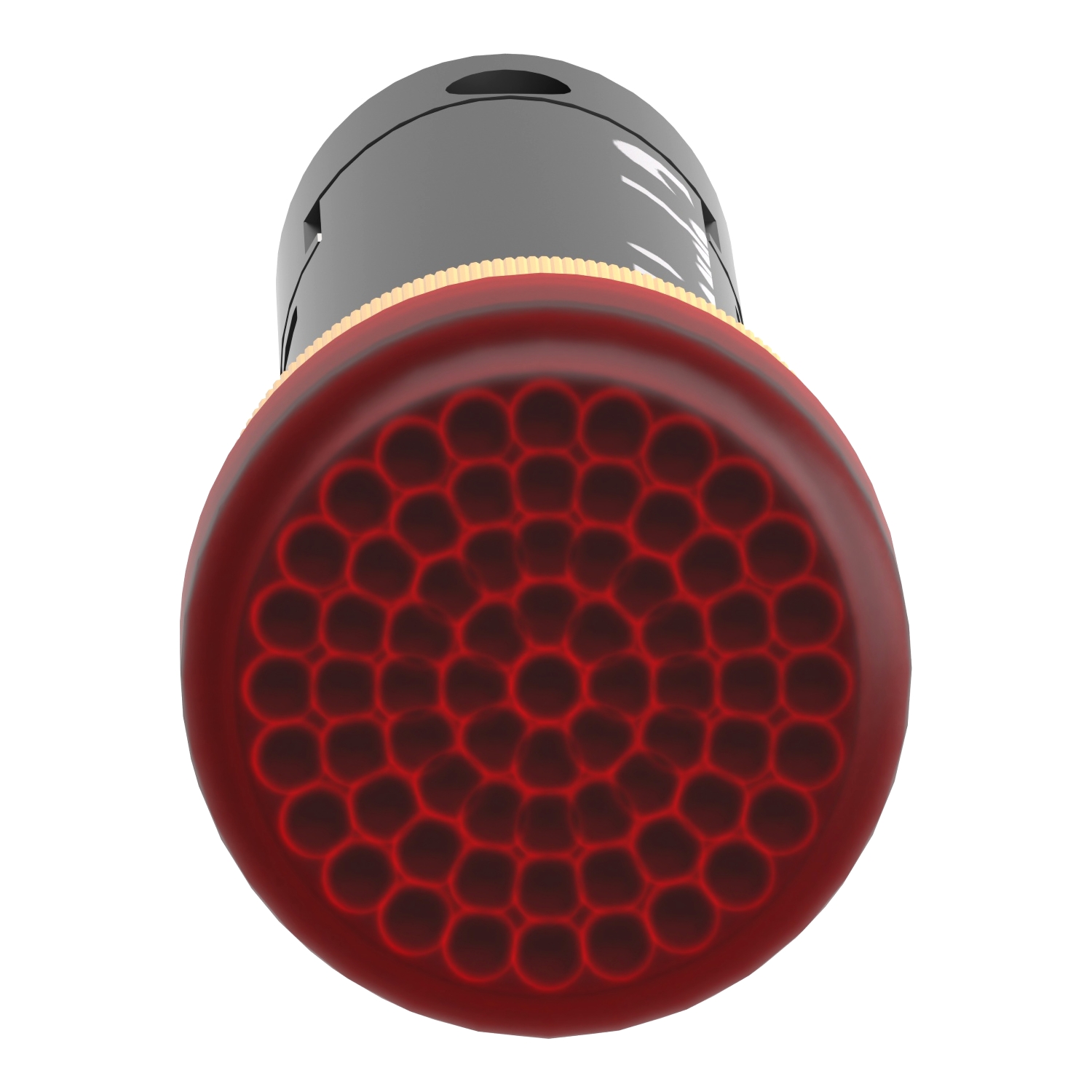

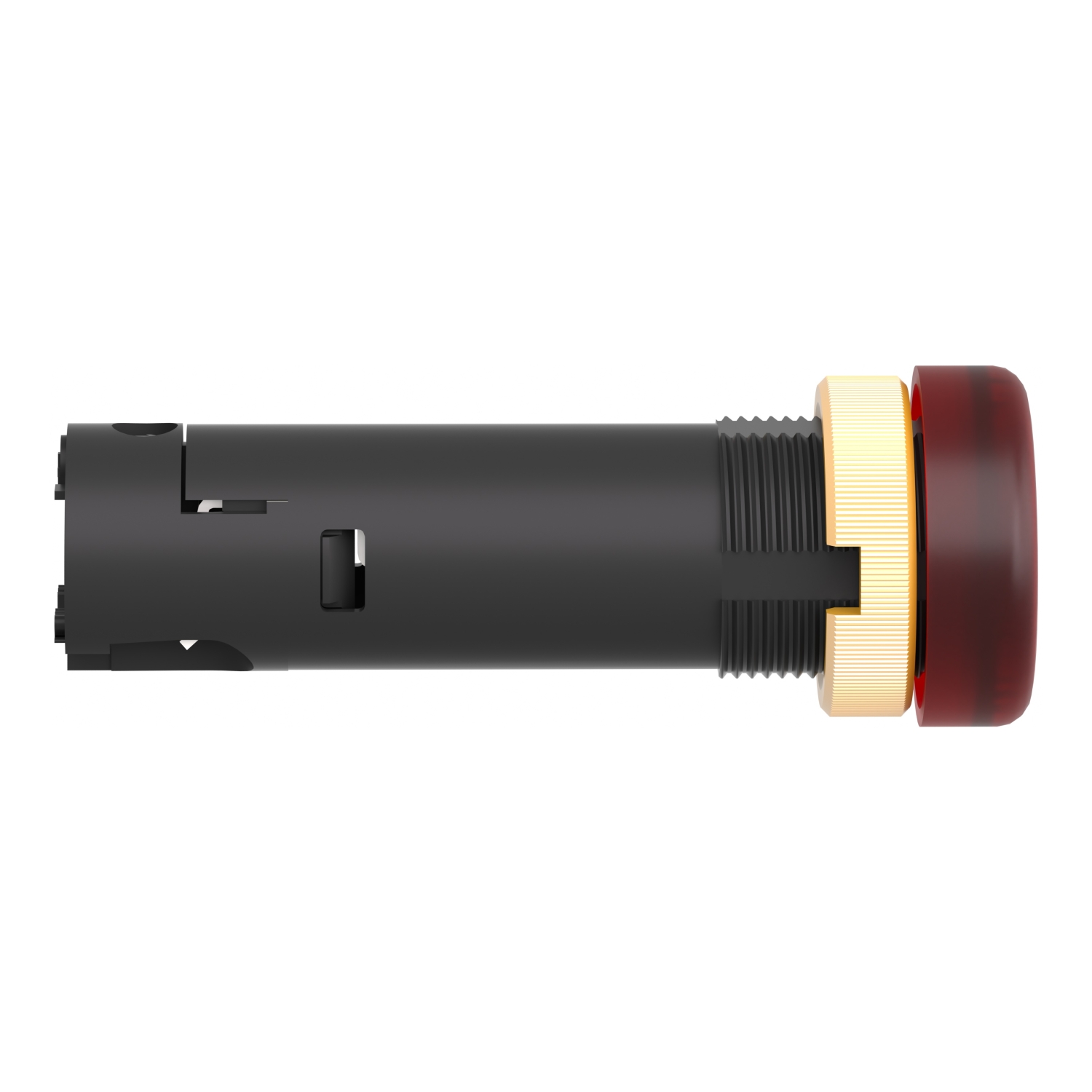

Lampa Pilot Ø12, Ip40/Ip65, Rosu, Led Acoperit Inclus, 24 V, Papuci
Documente
Fisa tehnica
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| Number of indicator lights | 1 |
| With light source | Yes |
| Type of lamp socket | LED |
| Construction type lens | Round |
| With front ring | Yes |
| Type of lens | Flat |
| Colour | |
| Colour lens | Red |
| Colour front ring | Black |
| Electrical | |
| Rated operating voltage Ue | 24 V |
| Voltage type | DC |
| Connection | |
| Type of electric connection | Flat plug-in connection |
| Measurements | |
| Width opening | - |
| Hole diameter | 12 mm |
| Height opening | - |
| Material | |
| Material front ring | Plastic |
| Protection | |
| Degree of protection (IP) | IP40 |
| Degree of protection (NEMA) | - |
| Package 1 | |
| volume | 28,125 cm3 |
| weight | 7 g |
| length | 4,5 cm |
| width | 2,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110651683 |
| Package 2 | |
| volume | 420 cm3 |
| weight | 72 g |
| length | 10 cm |
| width | 14 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 53389110651688 |
| Package 3 | |
| volume | 9000 cm3 |
| weight | 920 g |
| length | 40 cm |
| width | 15 cm |
| qmax | 100 |
| qmin | 100 |
| um | CT |
| gtin | 43389110651681 |
