Descriere

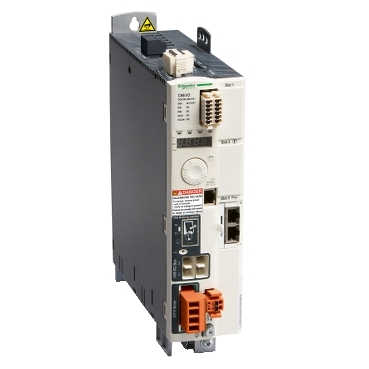

Servo Directie Miscare - Lexium 32 - Alimentare Trifazata 208/480V - 0.4 Kw
Documente
Specificatii
| Communication | |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces parallel | 0 |
| Supporting protocol for SERCOS | No |
| Number of HW-interfaces other | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| With optical interface | No |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for KNX | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for BACnet | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for LON | No |
| Supporting protocol for other bus systems | No |
| Supporting protocol for SUCONET | No |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 0 |
| Model/type | |
| Type of converter | Other |
| With control element | No |
| Electrical | |
| Mains voltage | 208 V |
| Mains frequency | 50/60 Hz |
| Relative symmetric net voltage tolerance | 10 % |
| Nominal output current I2N | 1.5 A |
| Max. output voltage | 480 V |
| Other | |
| Max. output frequency | 8 Hz |
| Relative symmetric net frequency tolerance | 5 % |
| Measurements | |
| Height | 270 mm |
| Width | 68 mm |
| Depth | 237 mm |
| Connection | |
| With PC connection | No |
| Number of phases input | 3 |
| Number of phases output | 3 |
| Number of digital outputs | 2 |
| Number of digital inputs | 6 |
| Number of analogue outputs | 1 |
| Number of analogue inputs | 3 |
| Performance | |
| Max. output at quadratic load at rated output voltage | 0.4 kW |
| Max. output at linear load at rated output voltage | 0.4 kW |
| Application | |
| Application in domestic- and commercial area permitted | No |
| Application in industrial area permitted | Yes |
| Protection | |
| Degree of protection (IP) | Other |
| Degree of protection (NEMA) | - |
| Options | |
| Integrated breaking resistance | No |
| Setting/control | |
| 4-quadrant operation possible | No |
| Package 1 | |
| volume | 9982,5 cm3 |
| weight | 2,338 kg |
| length | 33 cm |
| width | 27,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480076862 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 5,38 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 2 |
| qmin | 2 |
| um | CT |
| gtin | 43606480076860 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 51,996 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 16 |
| qmin | 16 |
| um | PF |
| gtin | 73606480076861 |
