Descriere

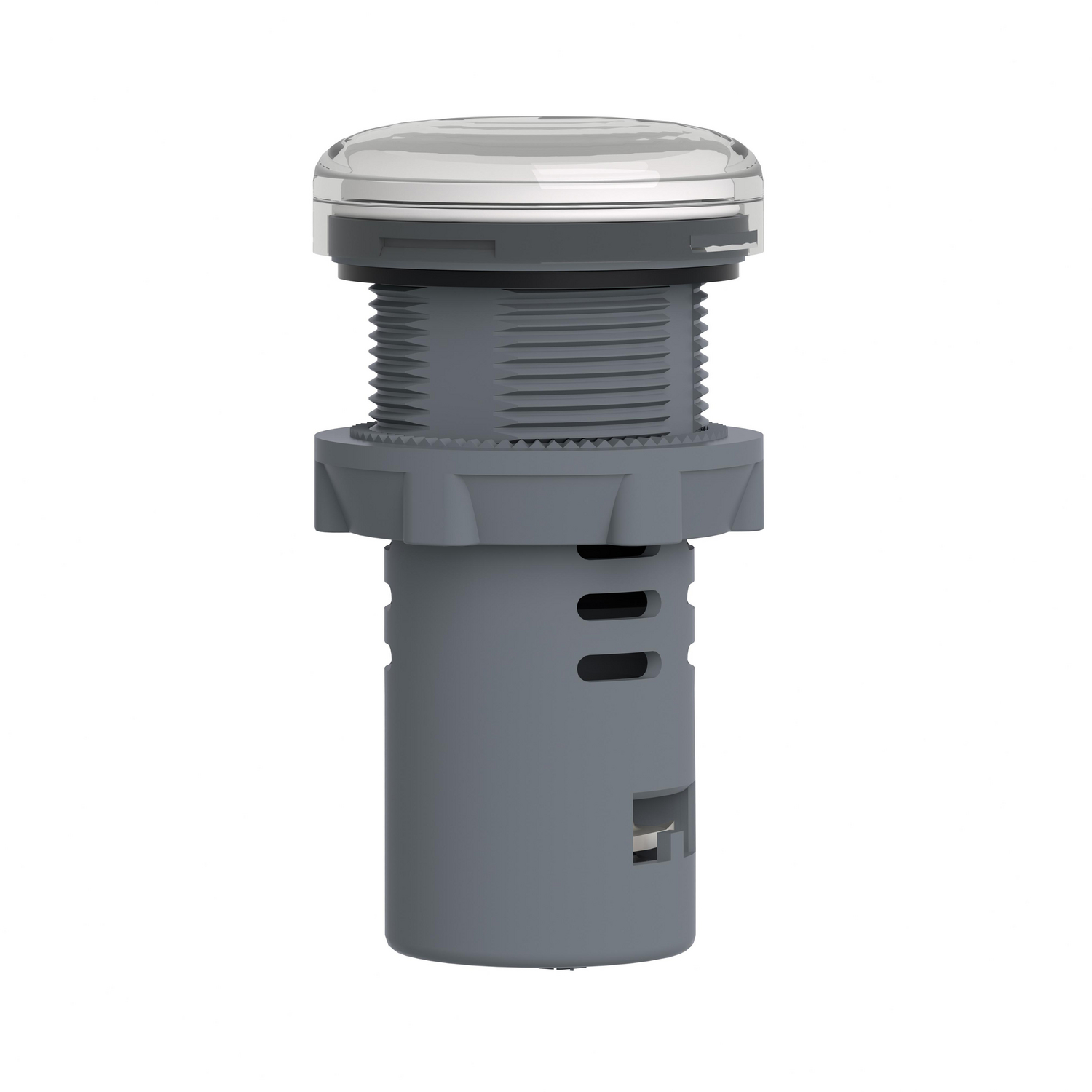

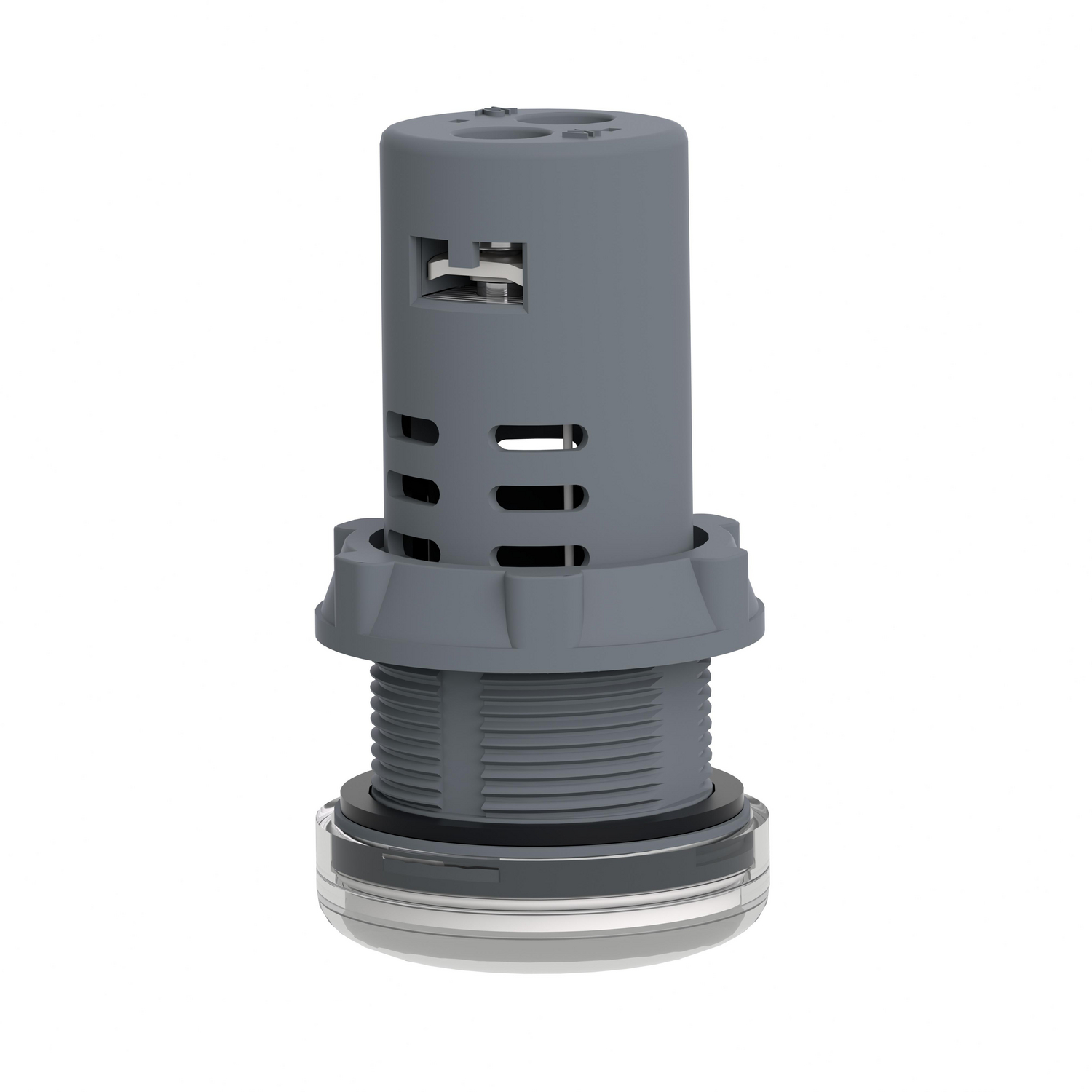

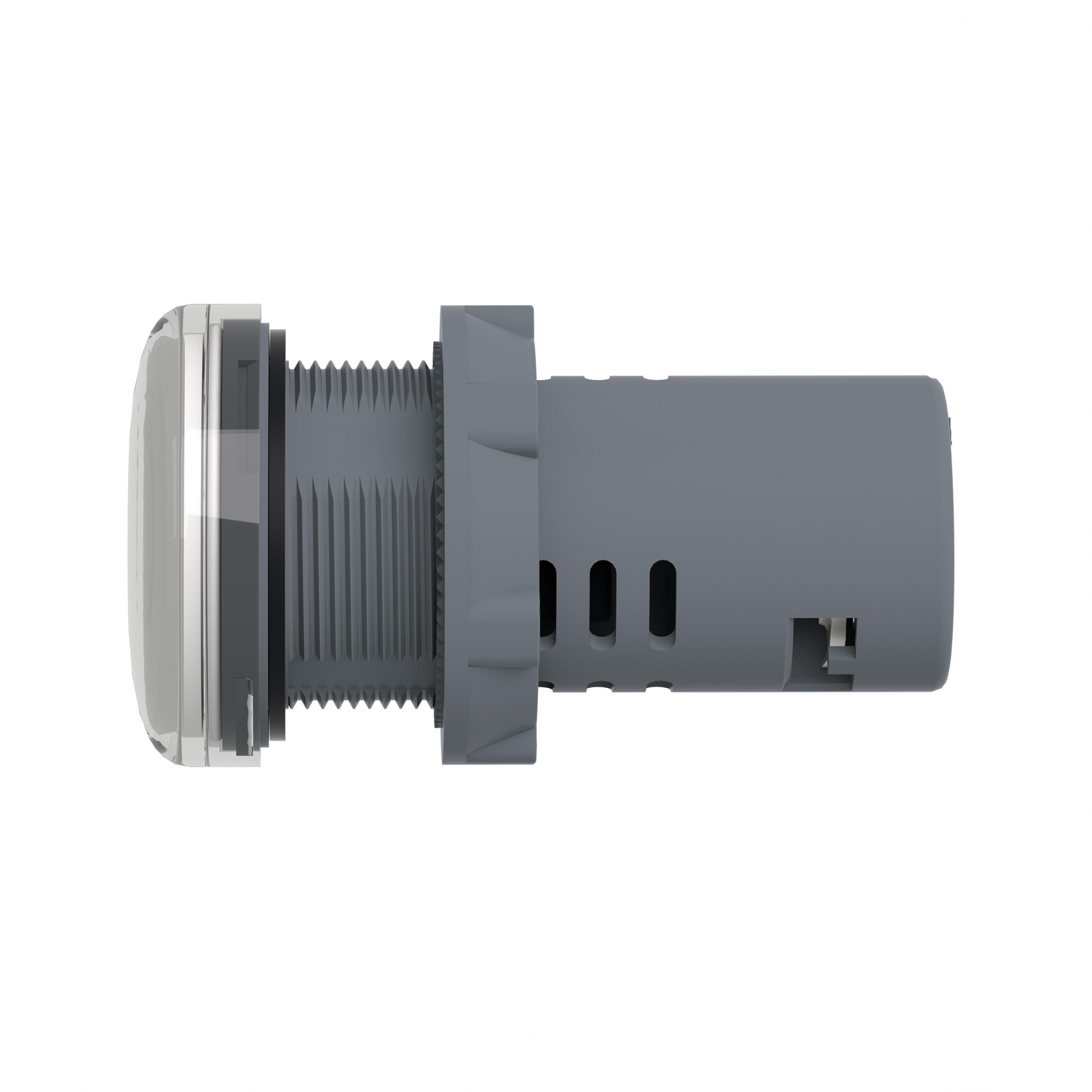

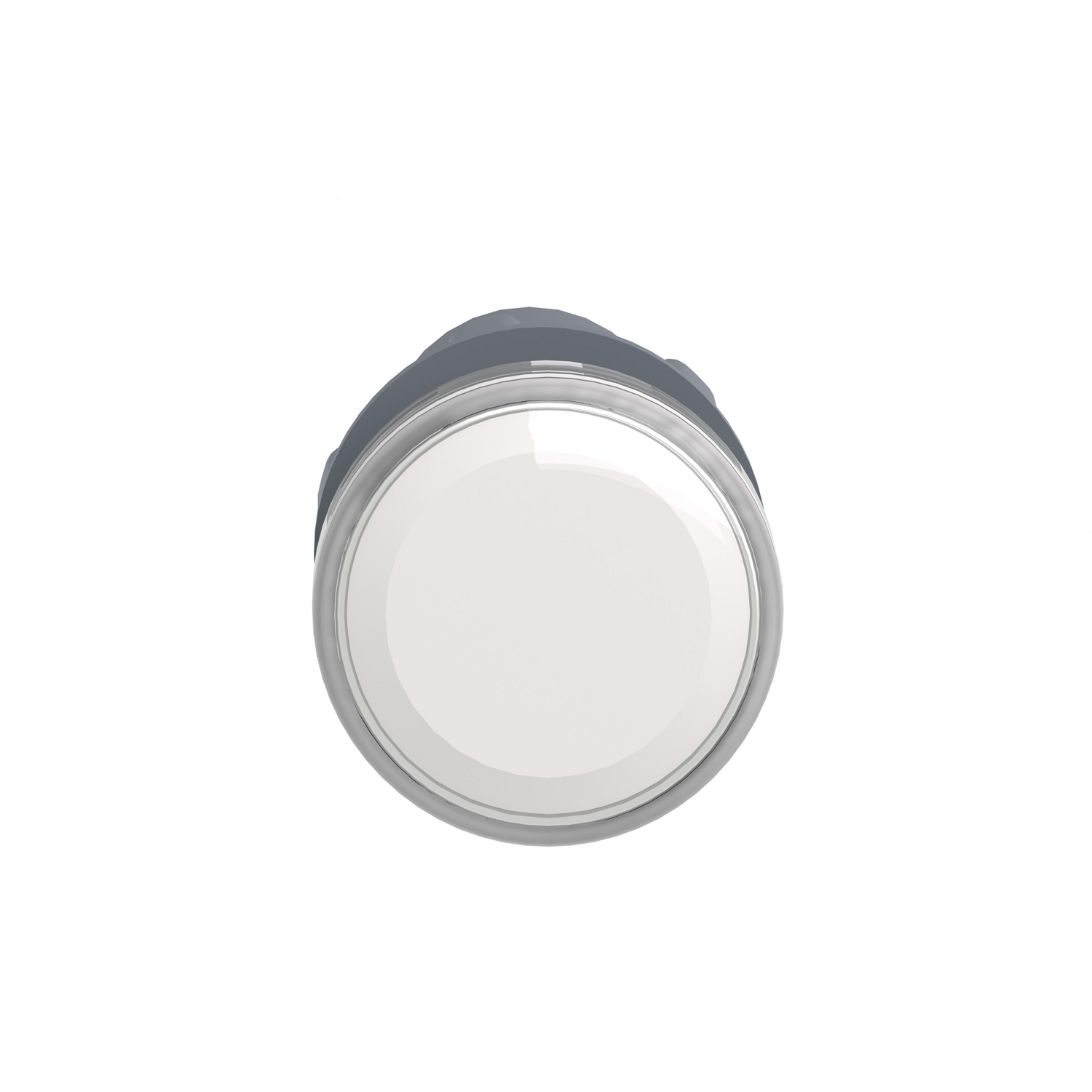

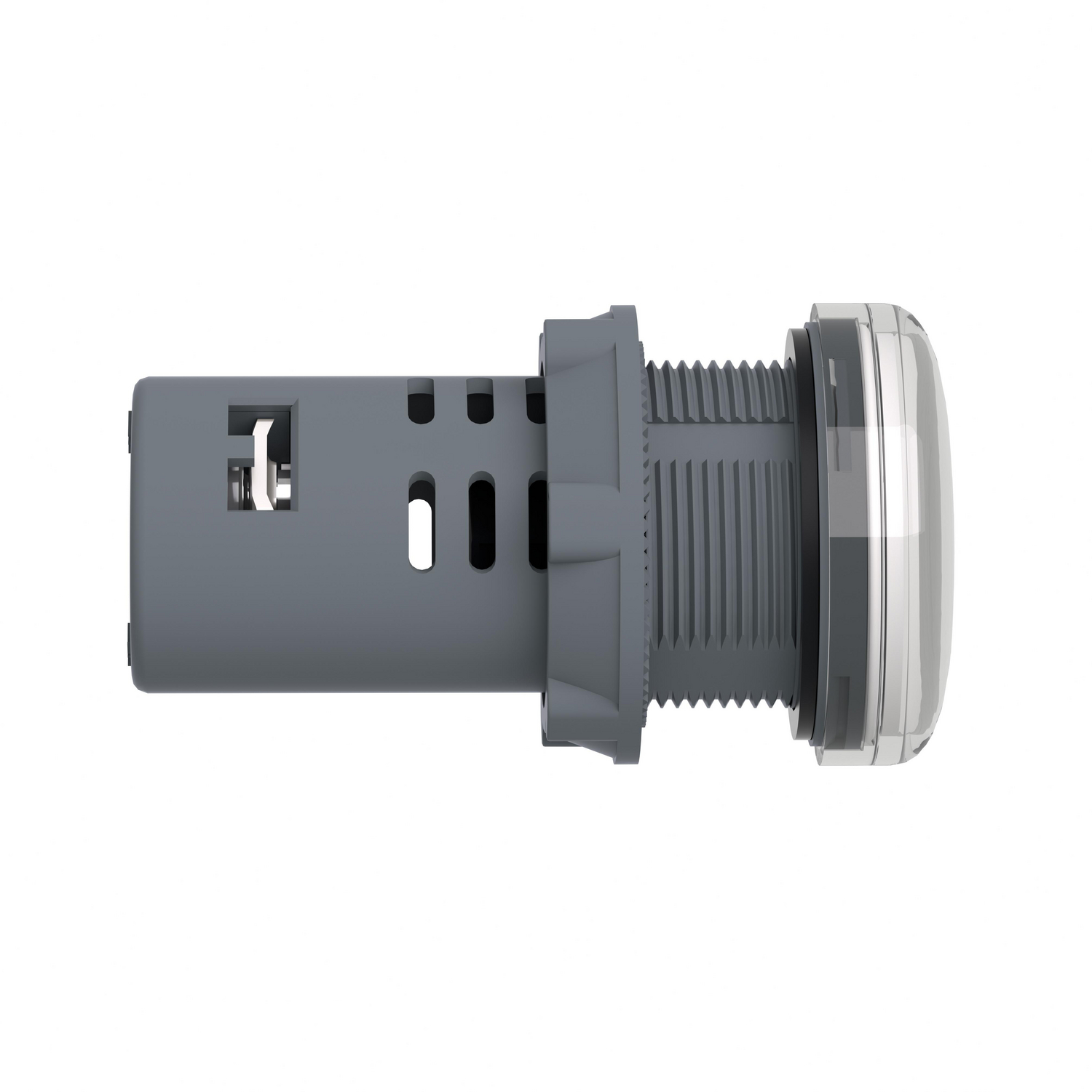

Lumina de control, 24V AC/DC, alb
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| With light source | Yes |
| Number of indicator lights | 1 |
| Type of lamp socket | LED |
| Construction type lens | Round |
| With front ring | Yes |
| Type of lens | Flat |
| Colour | |
| Colour lens | White |
| Colour front ring | Black |
| Electrical | |
| Rated operating voltage Ue | 24 V |
| Voltage type | AC/DC |
| Connection | |

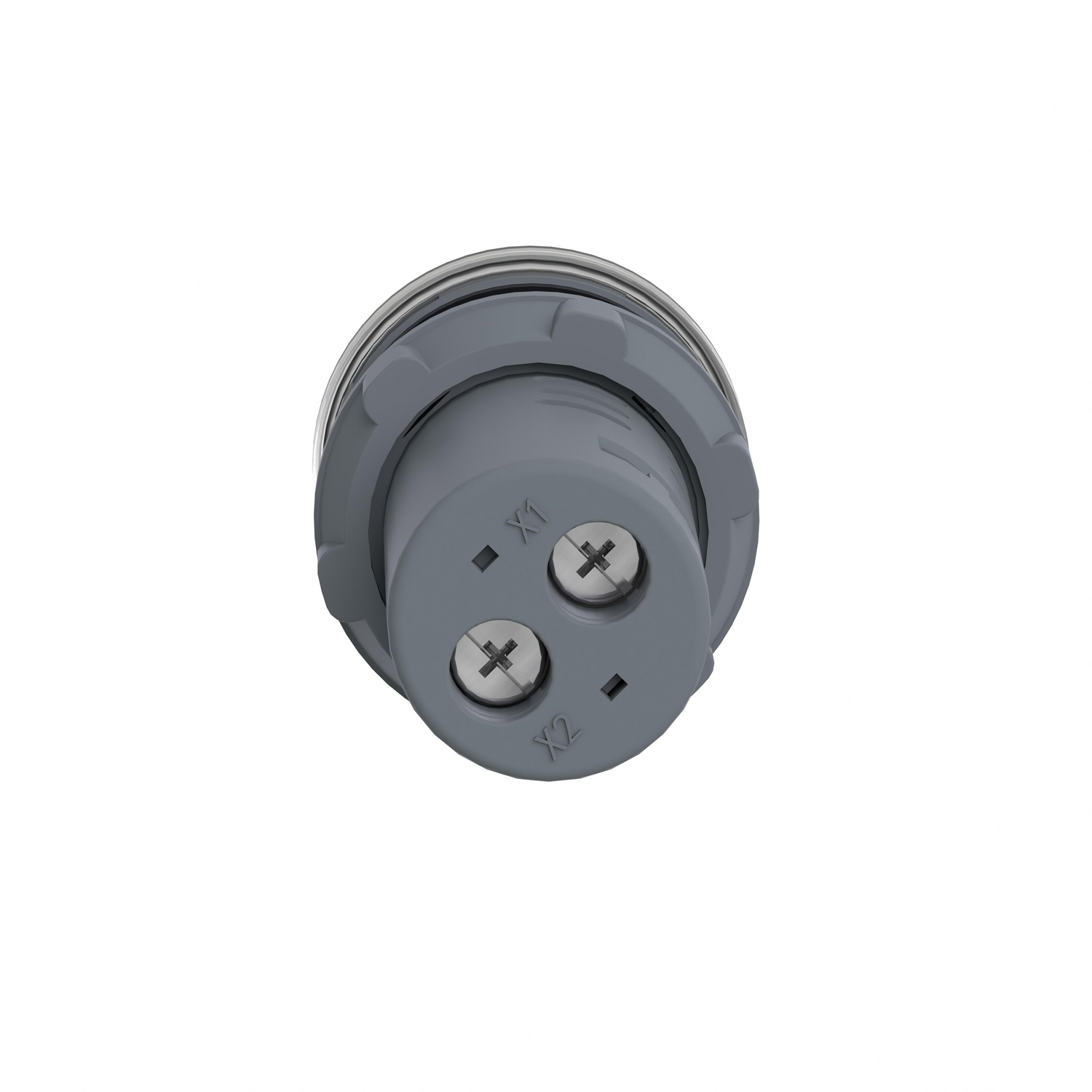

| Type of electric connection | Screw connection |
| Material | |
| Material front ring | Plastic |
| Measurements | |
| Hole diameter | 22.5 mm |
| Width opening | - |
| Height opening | - |
| Protection | |
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | - |
| Package 1 | |
| volume | 37,179 cm3 |
| weight | 18 g |
| length | 5,1 cm |
| width | 2,7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480989001 |
| Package 2 | |
| volume | 676 cm3 |
| weight | 215 g |
| length | 16 cm |
| width | 6,5 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606480989008 |
| Package 3 | |
| volume | 18000 cm3 |
| weight | 3,7 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 160 |
| qmin | 160 |
| um | CT |
| gtin | 43606480989009 |
| Package 4 | |
| weight | 67,2 kg |
| length | 60 cm |
| width | 80 cm |
| qmax | 2560 |
| qmin | 2560 |
| um | PF |
