Descriere

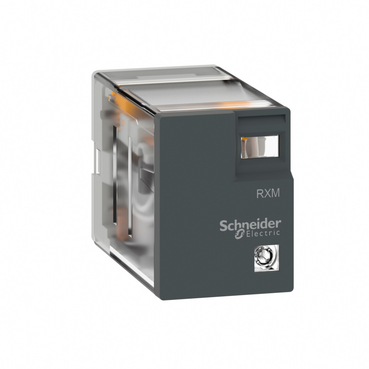

Releu miniatura 3A,4C/O, cu LED, 24V C.A.
Documente
Fisa tehnica
Declaratie de conformitate
Alte surse
Specificatii
| Measurements | |
| Width | - |
| Depth | - |
| Height | - |
| Electrical | |
| Rated control supply voltage AC 50 Hz | - |
| Rated control supply voltage AC 60 Hz | - |
| Nominal current | - |
| Voltage type for actuating | AC |
| Rated control supply voltage DC | 24 V |
| Other | |
| Drive, switching attitude | - |
| Drive, polarization | - |
| Connection | |
| Type of electric connection | Plug-in connection |
| Number of contacts as normally open contact | - |
| Number of contacts as change-over contact | - |
| Number of contacts as normally closed contact | - |
| Model/type | |
| With forced-guided contacts | No |
| With LED indication | Yes |
| Type of switch contact | Other |
| With detachable clamps | No |
| Mounting/installation | |
| Complete with socket | - |
| Material | |
| Material of contact surface | - |
| Material of contact insert | Other |
| Protection | |
| Degree of protection (IP) | - |
| Package 1 | |
| volume | 24,108 cm3 |
| weight | 37 g |
| length | 4,1 cm |
| width | 2,8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389119215398 |
| Package 2 | |
| volume | 345 cm3 |
| weight | 390 g |
| length | 10 cm |
| width | 11,5 cm |
| qmax | 10 |
| qmin | 10 |
| um | CT |
| gtin | 13389119215395 |
Accesorii
Soclu Rxz- Cont. Mixte- 7 A - 250 V- Clema Cu Surub- Pentru Releu Rxm2 -
Cod: RXZE1M4C
Schneider Electric
Soclu Rxz- Cont. Mixte- 7 A - 250 V- Clema Cu Surub- Pentru Releu Rxm2 -
Cod: RXZE1M4C
Schneider Electric
