Descriere

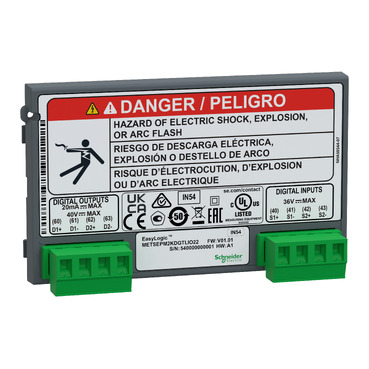

EasyLogic PM2X30 - Intrare/Iesire Modul - Digital - 2 intr + 2 ies
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Input current at signal 1 | - |
| Output current | 0.02 A |
| Voltage type (supply voltage) | - |
| Permitted voltage at output | 40 V |
| Permitted voltage at input | 36 V |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Type of voltage (input voltage) | AC/DC |
| Type of output voltage | DC |
| Supply voltage DC | - |
| Connection | |
| Type of electric connection | Plug-in connection |
| Short-circuit protection, outputs available | No |
| Number of digital outputs | 2 |
| Number of digital inputs | 2 |
| Approval/certification | |
| SIL according to IEC 61508 | None |
| Options | |
| Digital inputs configurable | Yes |
| Digital outputs configurable | Yes |
| Redundancy | No |
| Model/type | |
| Type of digital output | Transistor |
| Performance | |
| Performance level according to EN ISO 13849-1 | None |
| Other | |
| Appendant operation agent (Ex ia) | No |
| Time delay at signal change | 20 ms |
| Appendant operation agent (Ex ib) | No |
| Measurements | |
| Height | 53 mm |
| Width | 90.5 mm |
| Depth | 14.67 mm |
| Application | |
| Suitable for safety functions | No |
| Protection | |
| Explosion safety category for dust | None |
| Explosion safety category for gas | None |
| Package 1 | |
| volume | 380 cm3 |
| weight | 104 g |
| length | 9,5 cm |
| width | 8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480800191 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 6,98 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 60 |
| qmin | 60 |
| um | CT |
| gtin | 43606480800199 |
