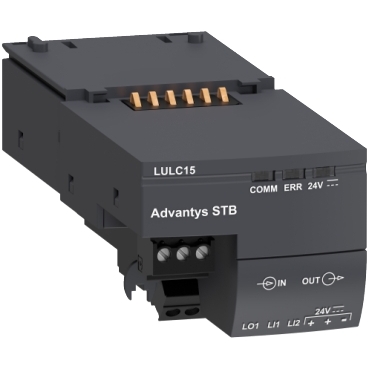

Modul De Comunicatie Stb Advantys - Pentru Tesys U - 24 V C.C.
Documente
Fisa tehnica
Specificatii
| Communication | |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for KNX | No |
| Supporting protocol for CAN | Yes |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for LON | No |
| Supporting protocol for other bus systems | No |
| Supporting protocol for SUCONET | No |
| Approval/certification | |
| SIL according to IEC 61508 | None |
| Options | |
| System accessory | Yes |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Mobile communications standard 3G (UMTS) | No |
| Radio standard LTE | No |
| Radio standard eGPRS | No |
| Radio standard Bluetooth | No |
| Radio standard WLAN 802.11 | No |
| IO link master | No |
| Rack-assembly possible | No |
| Performance | |
| Performance level according to EN ISO 13849-1 | None |
| Model/type | |
| With potential separation | Yes |
| Connection | |
| Fieldbus connection over separate bus coupler possible | No |
| Measurements | |
| Height | 45 mm |
| Width | 45 mm |
| Depth | 110 mm |
| Protection | |
| Explosion safety category for dust | None |
| Explosion safety category for gas | None |
| Degree of protection (IP) | IP20 |
| Electrical | |
| Voltage type (supply voltage) | DC |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Supply voltage DC | 24 V |
| Other | |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Mounting/installation | |
| Front built-in possible | Yes |
| Suitable for rail mounting | No |
| Wall mounting/direct mounting | No |
| Application | |
| Suitable for safety functions | No |
| Package 1 | |
| volume | 271,313 cm3 |
| weight | 106 g |
| length | 11,3 cm |
| width | 4,9 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389118212916 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 4,065 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 35 |
| qmin | 35 |
| um | CT |
| gtin | 43389118212914 |
