Descriere

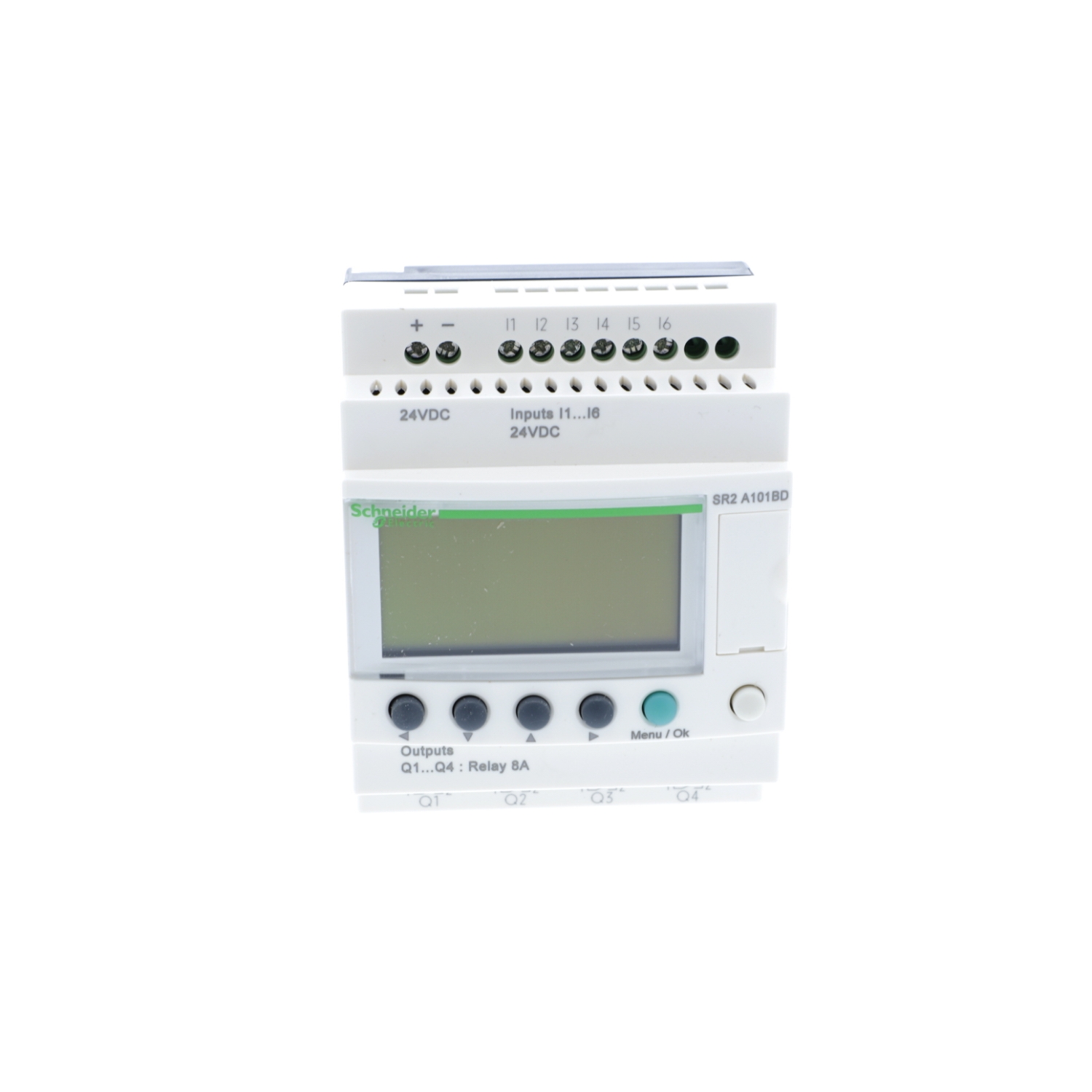

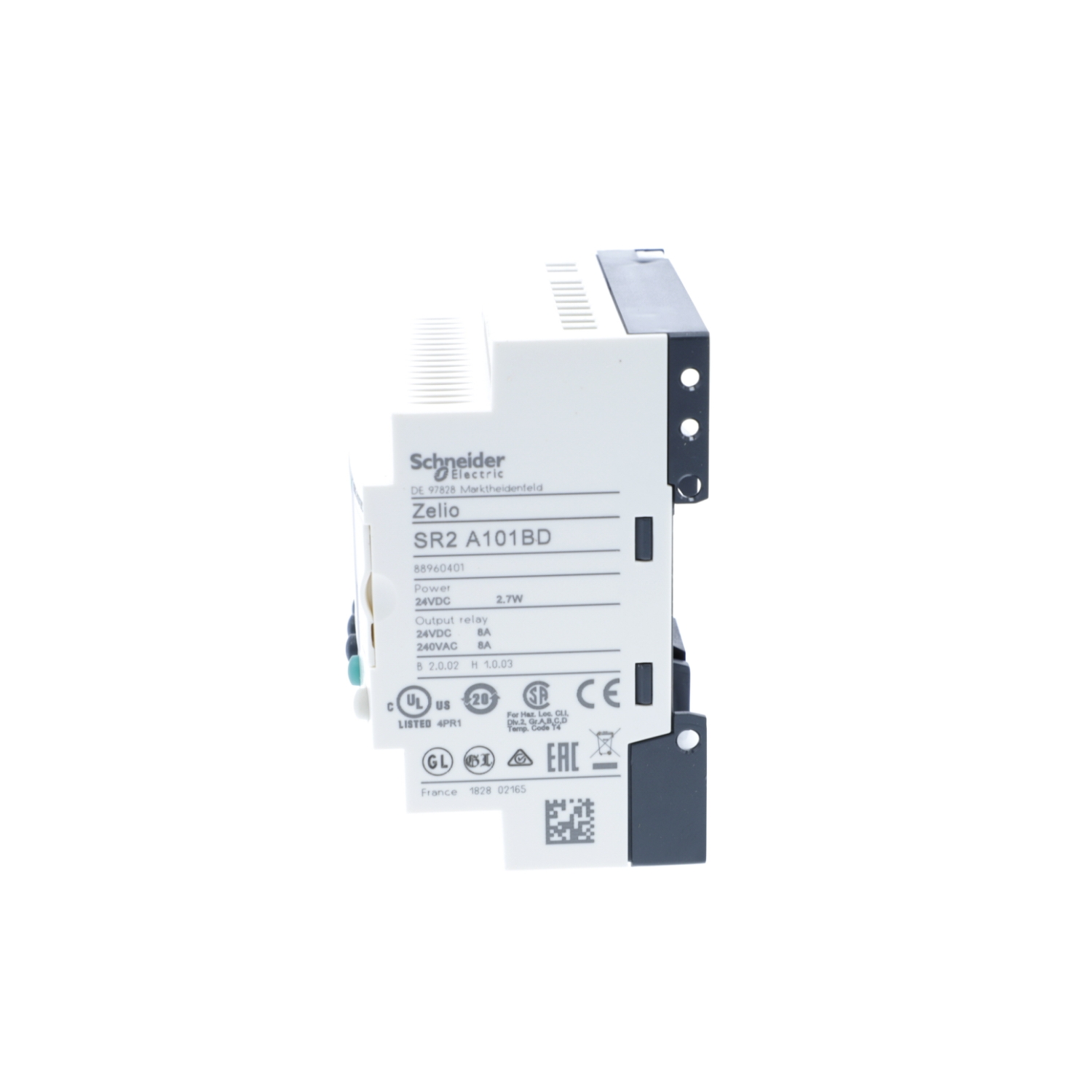

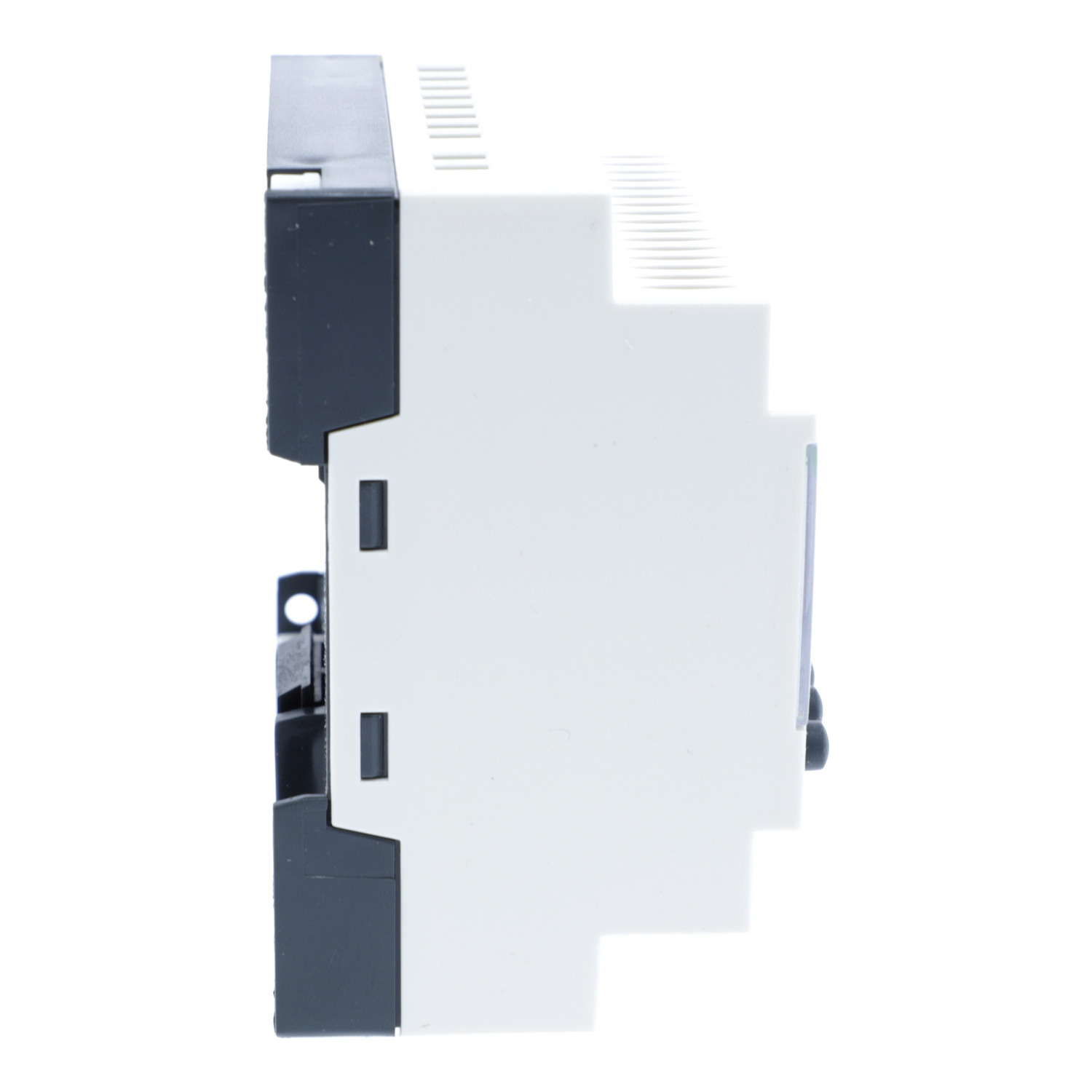

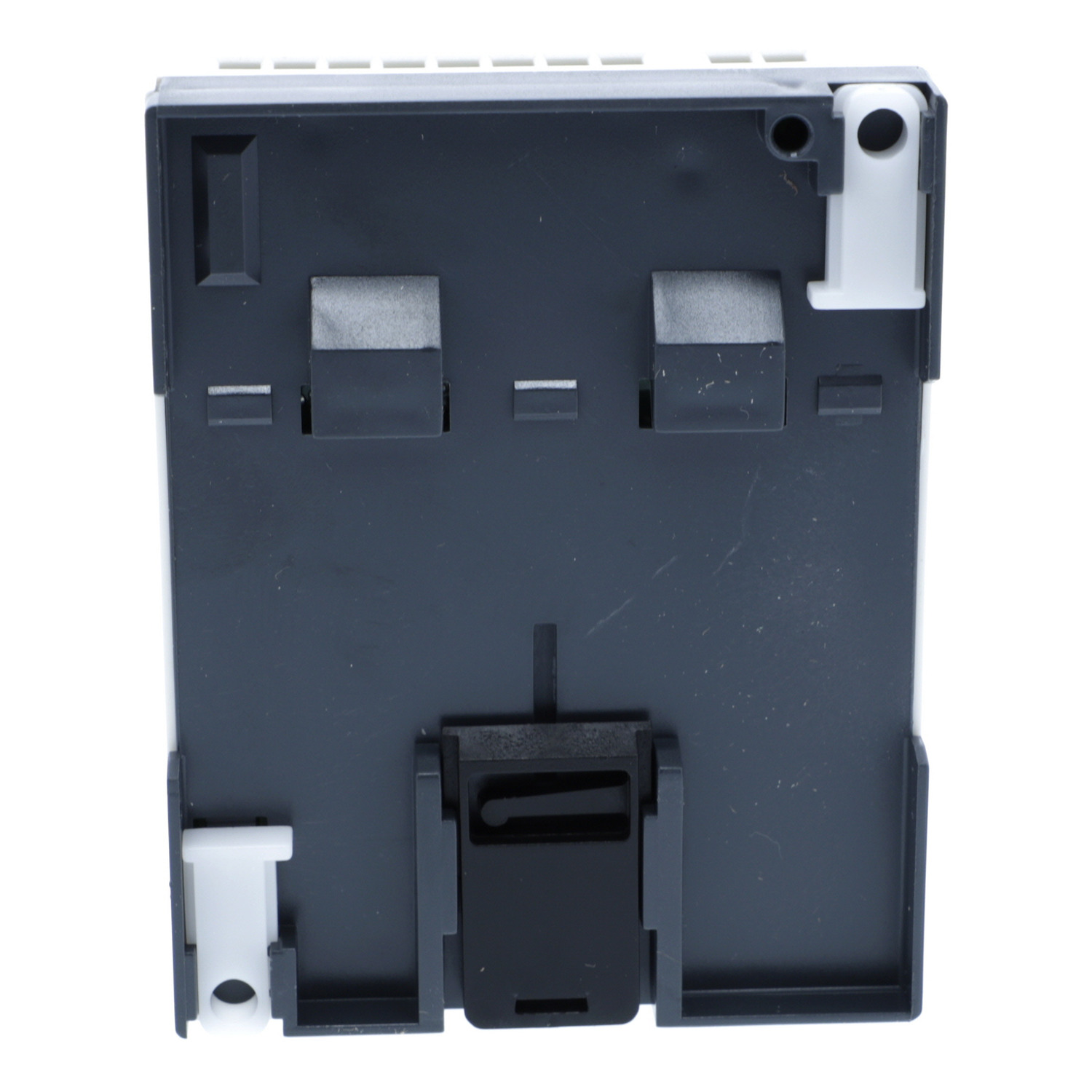

Releu Inteligent Comp. Zelio Logic, 10 I O, 24 V C.C., fara Ceas, cu Afisaj
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Options | |
| Expandable | No |
| Radio standard GPRS | No |
| Redundancy | No |
| Radio standard GSM | No |
| Mobile communications standard 3G (UMTS) | No |
| Radio standard Bluetooth | No |
| Radio standard WLAN 802.11 | No |
| IO link master | No |
| Rack-assembly possible | No |
| Communication | |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces parallel | 0 |
| Supporting protocol for SERCOS | No |
| Number of HW-interfaces other | 1 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| With optical interface | No |
| Number of HW-interfaces wireless | 0 |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for SafetyBUS p | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for KNX | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for LON | No |
| Supporting protocol for other bus systems | No |
| Supporting protocol for SUCONET | No |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 1 |
| Approval/certification | |
| SIL according to IEC 61508 | None |
| Performance | |
| Performance level according to EN ISO 13849-1 | None |
| Model/type | |
| Basic device | Yes |
| With relay output | Yes |
| Expansion device | No |
| With display | Yes |
| With time switch clock | No |
| Measurements | |
| Height | 90 mm |
| Width | 71.2 mm |
| Depth | 59.5 mm |
| Protection | |
| Explosion safety category for dust | None |
| Explosion safety category for gas | None |
| Degree of protection (IP) | IP20 |
| Electrical | |
| Voltage type (supply voltage) | DC |
| Supply voltage AC 50 Hz | - |
| Supply voltage AC 60 Hz | - |
| Switching current | 8 A |
| Supply voltage DC | 24 V |
| Other | |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Mounting/installation | |
| Front built-in possible | Yes |
| Suitable for rail mounting | Yes |
| Wall mounting/direct mounting | Yes |
| Connection | |
| Number of digital outputs | 4 |
| Number of digital inputs | 6 |
| Number of analogue outputs | 0 |
| Number of analogue inputs | 0 |
| Application | |
| Suitable for safety functions | No |
| Package 1 | |
| volume | 585 cm3 |
| weight | 238 g |
| length | 10 cm |
| width | 9 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110547535 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 7,668 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 30 |
| qmin | 30 |
| um | CT |
| gtin | 13389110547532 |
