Descriere

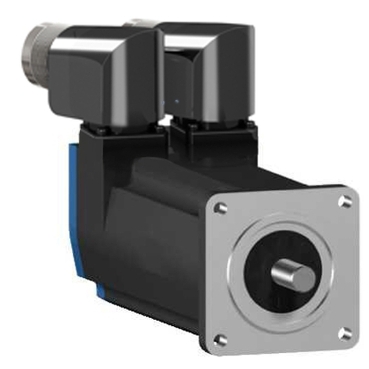

AC servo motor BSH - 0.5 N.m - 4000 rpm - arb. simplu - cu frana - IP65
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Specificatii
| Other | |
| Bearing | Other |
| Rated frequency | 50 Hz |
| Duty cycle | Other |
| Nominal torque | 0.46 Nm |
| Starting torque ratio | 0 |
| Breakdown torque ratio | 0 |
| Model/type | |
| Model | Rotary current synchronous motor |
| Cooling method | Other |
| Shaft end type | Other |
| With positive temperature coefficient resistor (PTC) | No |
| With resistance temperature detector (RTD) | No |
| Construction type | Other |
| With anti-condensation | No |
| Electrical | |
| Number of phases | 3 |
| Number of poles | 6 |
| Rated current | - |
| Rated voltage | 480 V |
| Power factor | - |
| Voltage type | AC |
| Voltage anti-condensation heater | - |
| Starting current ratio | 0 |
| Energy efficiency/environmental | |
| Motor efficiency class | Other |
| Options | |
| Overload capability | No |
| Protection | |
| Degree of protection (IP) | IP65 |
| Intrinsic safety (IS) | None |
| Degree of protection (NEMA) | - |
| Material | |
| Vacuum pressure impregnation (VPI) | Other |
| Housing material | Other |
| Application | |
| Suitable for frequency control | No |
| Performance | |
| Rated performance at rated frequency | 0.17 kW |
| Rated rotational speed at rated frequency | 8000 1/min |
| Output power anti-condensation heater | - |
| Full-load efficiency | - |
| Operating conditions | |
| Operating temperature | 0 °C |
| Measurements | |
| Frame size according to IEC | - |
| Approval/certification | |
| Insulation class according to IEC | Other |
| Package 1 | |
| volume | 8630,75 cm3 |
| weight | 1,7 kg |
| length | 39,5 cm |
| width | 19 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389118198692 |
