Descriere

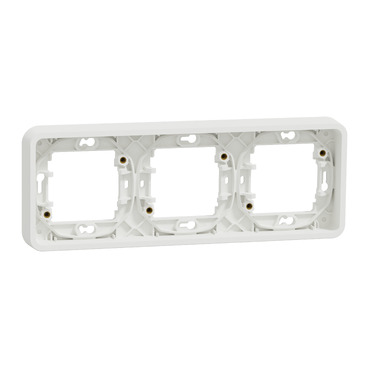

Suportul de fixare cu 3 posturi Mureva Styl MUR39109 este realizat pentru montaj incastrat si este compatibil cu alte referinte din gama Mureva Styl destinate acestui tip de montaj. Datorita indicelui sau de protectie IP55, acest dispozitiv poate fi instalat in interior sau in exterior si se fixeaza cu suruburi. Dimensiunile sale sunt: 23 mm inaltime, 84 mm latime, 19 mm adancime de proiectare si 226 mm lungime.
Documente
Specificatii
| Material | |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Material | Plastic |
| Halogen free | Yes |
| Material quality | Other |
| Model/type | |
| With hinged lid | No |
| Number of device inserts horizontal | 3 |
| Number of device inserts vertical | 1 |
| Number of switch inserts | 3 |
| Number of modules vertical (module system) | - |
| Number of modules horizontal (module system) | - |
| Number of units | 3 |
| Mounting/installation | |
| Mounting direction | Horizontal |
| With mounting grid | Yes |
| Suitable for built-in installation | No |
| Type of fastening | Clamping/screw mounting |
| Flush-mounted installation | No |
| Suitable for wall duct | No |
| Application | |
| Suitable for subfloor installation duct box | No |
| Colour | |
| RAL-number (similar) | 9003 |
| Transparent | No |
| Colour | White |
| Measurements | |
| Built-in height | - |
| Height | 226 mm |
| Diameter bore hole (opening) | - |
| Width | 84 mm |
| Built-in width | - |
| Depth | 23 mm |
| Protection | |
| Degree of protection (IP) | IP55 |
| Options | |
| Label space/information surface | No |
| Anti-bacterial treatment | No |
| Other | |
| Impact strength | IK08 |
| Package 1 | |
| volume | 361,26 cm3 |
| weight | 91 g |
| length | 22,3 cm |
| width | 8,1 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480790065 |
| Package 2 | |
| volume | 4866,4 cm3 |
| weight | 461 g |
| length | 39,5 cm |
| width | 16 cm |
| qmax | 4 |
| qmin | 4 |
| um | BX |
| gtin | 13606480790062 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 3,607 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 24 |
| qmin | 24 |
| um | CT |
| gtin | 43606480790063 |
| Package 4 | |
| weight | 27,88 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 96 |
| qmin | 96 |
| um | PF |
