Descriere

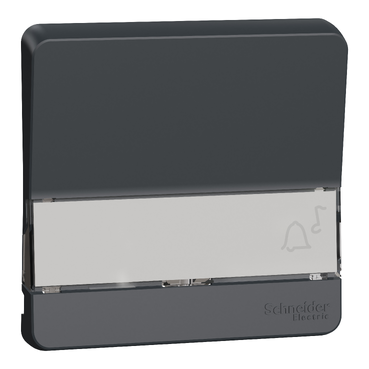

Clapeta cu vizor pentru iluminare si suport eticheta Mureva Styl MUR34203 este proiectata pentru a fi montata aparent sau incastrat, folosind referintele compatibile din aceasta gama. Datorita indicelui sau de protectie IP55, acest dispozitiv poate fi instalat in interior sau in exterior. Zona de etichetare este utila pentru a putea diferentia aparatul. Este prevazut cu 4 foi cu etichete: cu simbol sonerie, cu simbol cheie, cu simbol lumina si una goala
Documente
Specificatii
| Material | |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Material | Plastic |
| Halogen free | - |
| Material quality | Thermoplastic |
| Mounting/installation | |
| With mounting plate | No |
| Type of fastening | Engage (snap) |
| Mounting method | Built-in installation |
| Measurements | |
| Built-in depth | 10 mm |
| Device depth | 60 mm |
| Min. depth of built-in installation box | - |
| Device width | 70 mm |
| Device height | 14 mm |
| Model/type | |
| Washing machine switch | No |
| Lighting | No |
| Type of lighting | - |
| Number of modules (module system) | - |
| Heating switch | No |
| Number of rockers | 1 |
| Label space/information surface | Yes |
| Assembly arrangement | Basic element |
| Protection | |
| Suitable for degree of protection (IP) | IP55 |
| Colour | |
| RAL-number (similar) | 7016 |
| Colour | Grey |
| Options | |
| IFTTT support available | No |
| Push button switch | No |
| Anti-bacterial treatment | No |
| Electrical | |
| Switching current for fluorescent lamps | - |
| Rated current | - |
| Nominal voltage | - |
| Other | |
| Wiring system | Other |
| Impact strength | Not available |
| Function lighting | - |
| Connection | |
| Connection type | - |
| Setting/control | |
| Method of operation | Rocker/button |
| Communication | |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Monitoring contact | No |
| Compatible with Amazon Alexa | No |
| Package 1 | |
| volume | 447,48 cm3 |
| weight | 20 g |
| length | 11,3 cm |
| width | 9 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480790256 |
| Package 2 | |
| volume | 4967,52 cm3 |
| weight | 290 g |
| length | 39,3 cm |
| width | 15,8 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606480790253 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 2,453 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 60 |
| qmin | 60 |
| um | CT |
| gtin | 43606480790254 |
