Descriere

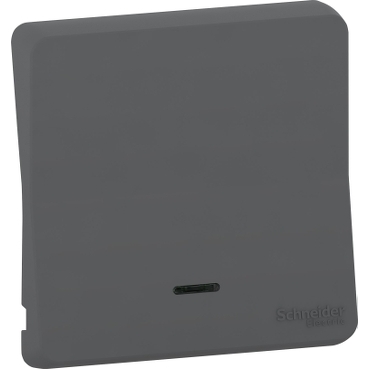

Clapeta cu vizor pentru iluminare Mureva Styl MUR34204 este proiectata pentru a fi montata aparent sau incastrat folosind referintele compatibile din aceasta gama. Datorita indicelui sau de protectie IP55, acest dispozitiv poate fi instalat in interior sau in exterior. Iluminarea dispozitivului este perfecta pentru a sti imediat daca este pornit sau oprit.
Documente
Specificatii
| Material | |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Material | Plastic |
| Halogen free | - |
| Material quality | Thermoplastic |
| Mounting/installation | |
| With mounting plate | No |
| Type of fastening | Engage (snap) |
| Mounting method | Built-in installation |
| Measurements | |
| Built-in depth | 10 mm |
| Device depth | 11 mm |
| Min. depth of built-in installation box | - |
| Device width | 70 mm |
| Device height | 14 mm |
| Model/type | |
| Washing machine switch | No |
| Lighting | No |
| Type of lighting | - |
| Number of modules (module system) | - |
| Heating switch | No |
| Number of rockers | 1 |
| Label space/information surface | No |
| Assembly arrangement | Basic element |
| Protection | |
| Suitable for degree of protection (IP) | IP55 |
| Colour | |
| RAL-number (similar) | 7016 |
| Colour | Grey |
| Options | |
| IFTTT support available | No |
| Push button switch | No |
| Anti-bacterial treatment | No |
| Electrical | |
| Switching current for fluorescent lamps | 10 AX |
| Rated current | 10 A |
| Nominal voltage | 250 V |
| Other | |
| Wiring system | Switch 1-pole |
| Impact strength | Not available |
| Function lighting | - |
| Connection | |
| Connection type | - |
| Setting/control | |
| Method of operation | Rocker/button |
| Communication | |
| Compatible with Apple HomeKit | No |
| Monitoring contact | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Package 1 | |
| volume | 61,875 cm3 |
| weight | 18 g |
| length | 7,5 cm |
| width | 7,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480992353 |
| Package 2 | |
| volume | 5056 cm3 |
| weight | 266 g |
| length | 39,5 cm |
| width | 16 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606480992350 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 2,494 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 60 |
| qmin | 60 |
| um | CT |
| gtin | 43606480992351 |
