Descriere

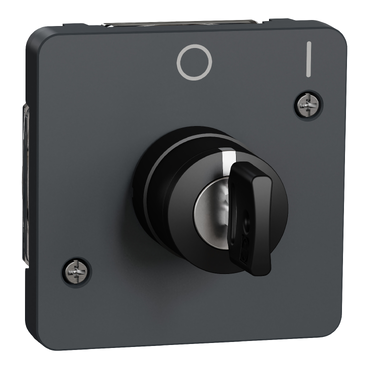

Intrerupatorul cu cheie Mureva Styl MUR35062 este un dispozitiv robust care poate fi instalat in interior sau in exterior. Acesta are un indice de protectie IP55 care ii asigura impermeabilitatea si are 2 pozitii. Dispozitivul se poate fixa cu 2 suruburi, incastrat sau aparent. Are inaltime si latime de 71 m si o adancime de 72 mm
Documente
Specificatii
| Material | |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Material | Plastic |
| Halogen free | Yes |
| Material quality | Thermoplastic |
| Mounting/installation | |
| With mounting plate | No |
| Type of fastening | Screw mounting |
| Mounting method | Built-in installation |
| Measurements | |
| Built-in depth | 10 mm |
| Device depth | 72 mm |
| Min. depth of built-in installation box | - |
| Device width | 71 mm |
| Device height | 72 mm |
| Model/type | |
| Washing machine switch | No |
| Lighting | No |
| Type of lighting | - |
| Number of modules (module system) | - |
| Heating switch | No |
| Number of rockers | 1 |
| Label space/information surface | No |
| Assembly arrangement | Basic element with complete housing |
| Protection | |
| Suitable for degree of protection (IP) | IP55 |
| Colour | |
| RAL-number (similar) | 7016 |
| Colour | Grey |
| Options | |
| IFTTT support available | No |
| Push button switch | No |
| Anti-bacterial treatment | No |
| Electrical | |
| Switching current for fluorescent lamps | - |
| Rated current | 3 A |
| Nominal voltage | 230 V |
| Other | |
| Wiring system | Other |
| Impact strength | Not available |
| Function lighting | - |
| Connection | |
| Connection type | Screwed terminal |
| Setting/control | |
| Method of operation | Key |
| Communication | |
| Compatible with Apple HomeKit | No |
| Monitoring contact | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Package 1 | |
| volume | 679,644 cm3 |
| weight | 119 g |
| length | 9,3 cm |
| width | 8,7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480789441 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 1,777 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 12 |
| qmin | 12 |
| um | CT |
| gtin | 43606480789449 |
