Descriere

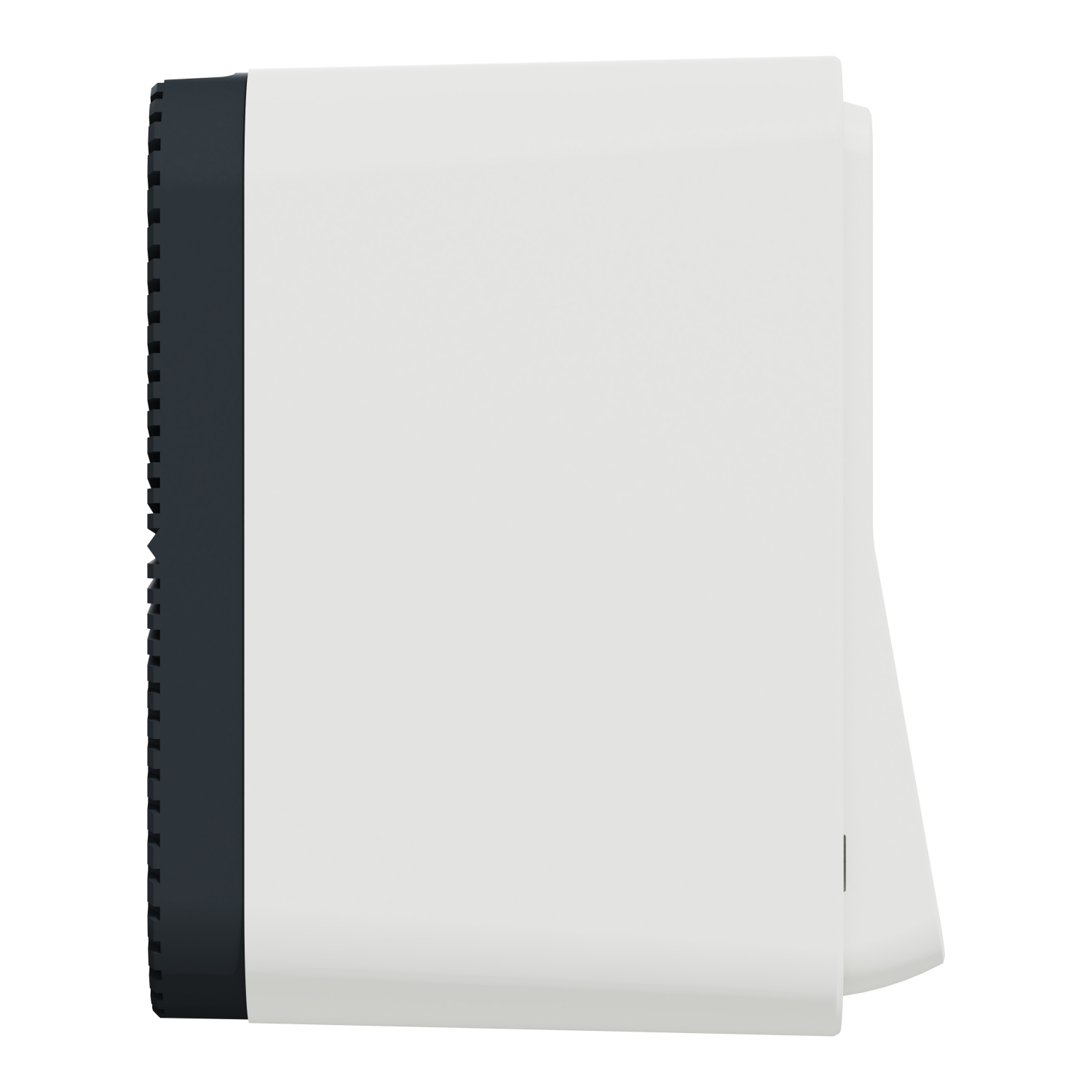

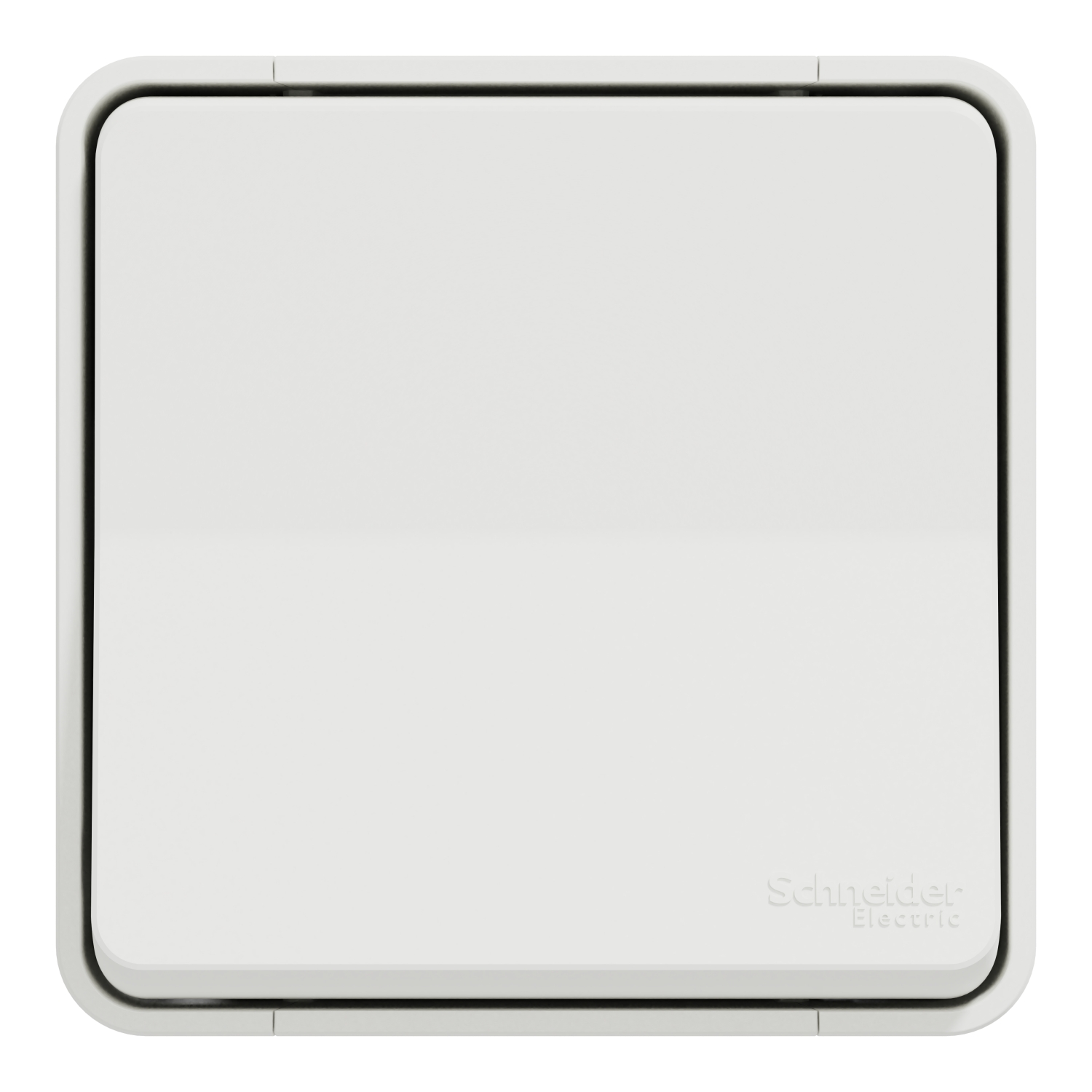

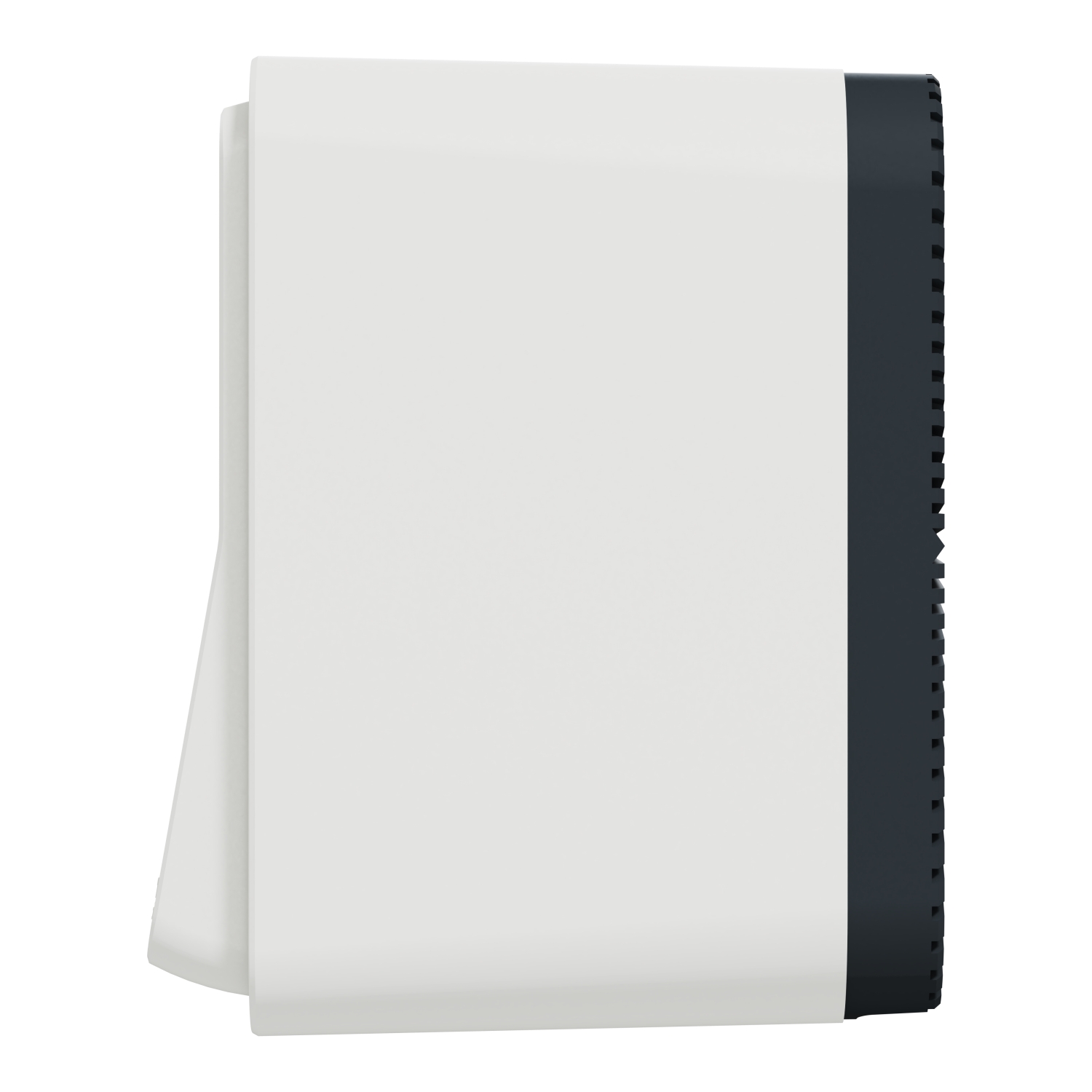

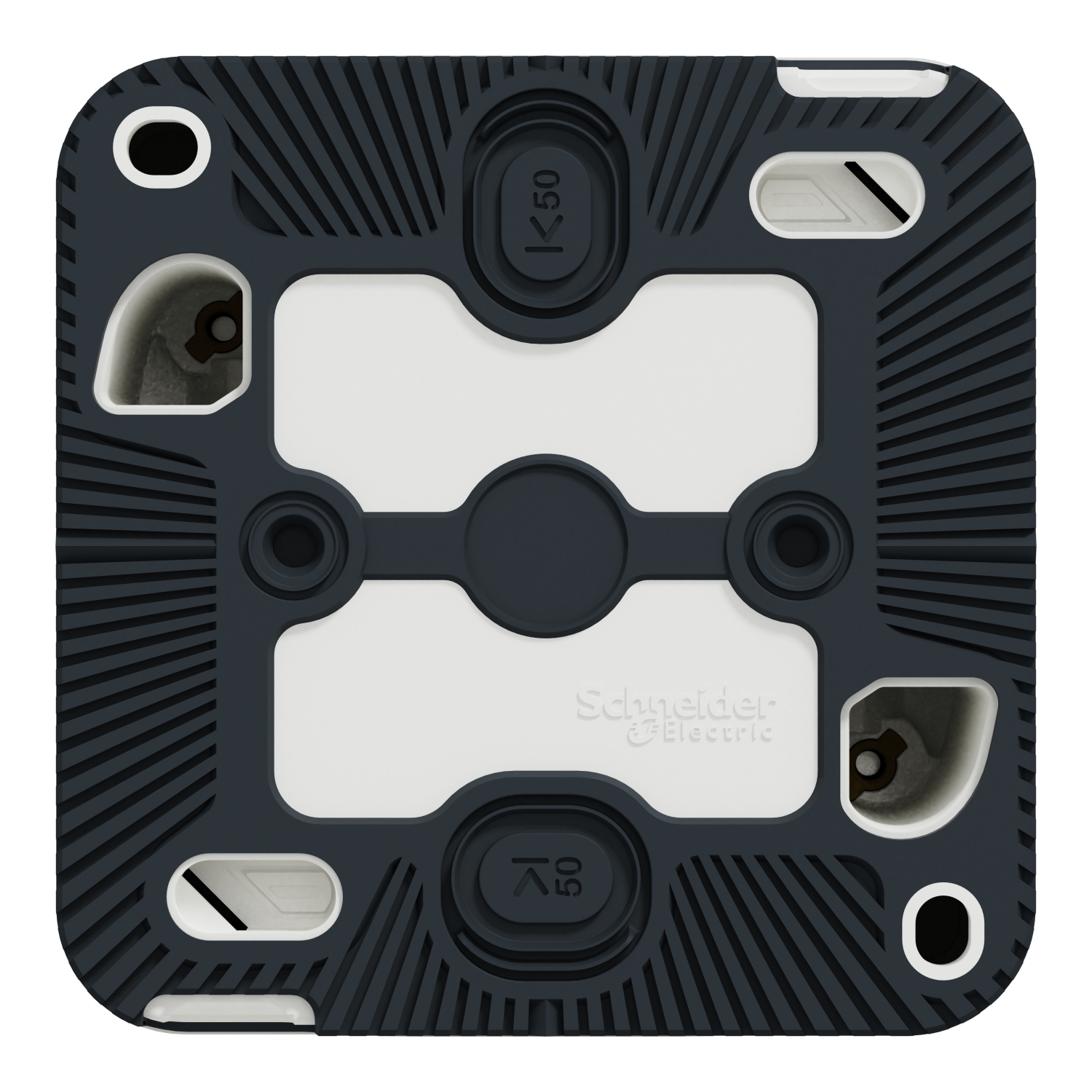

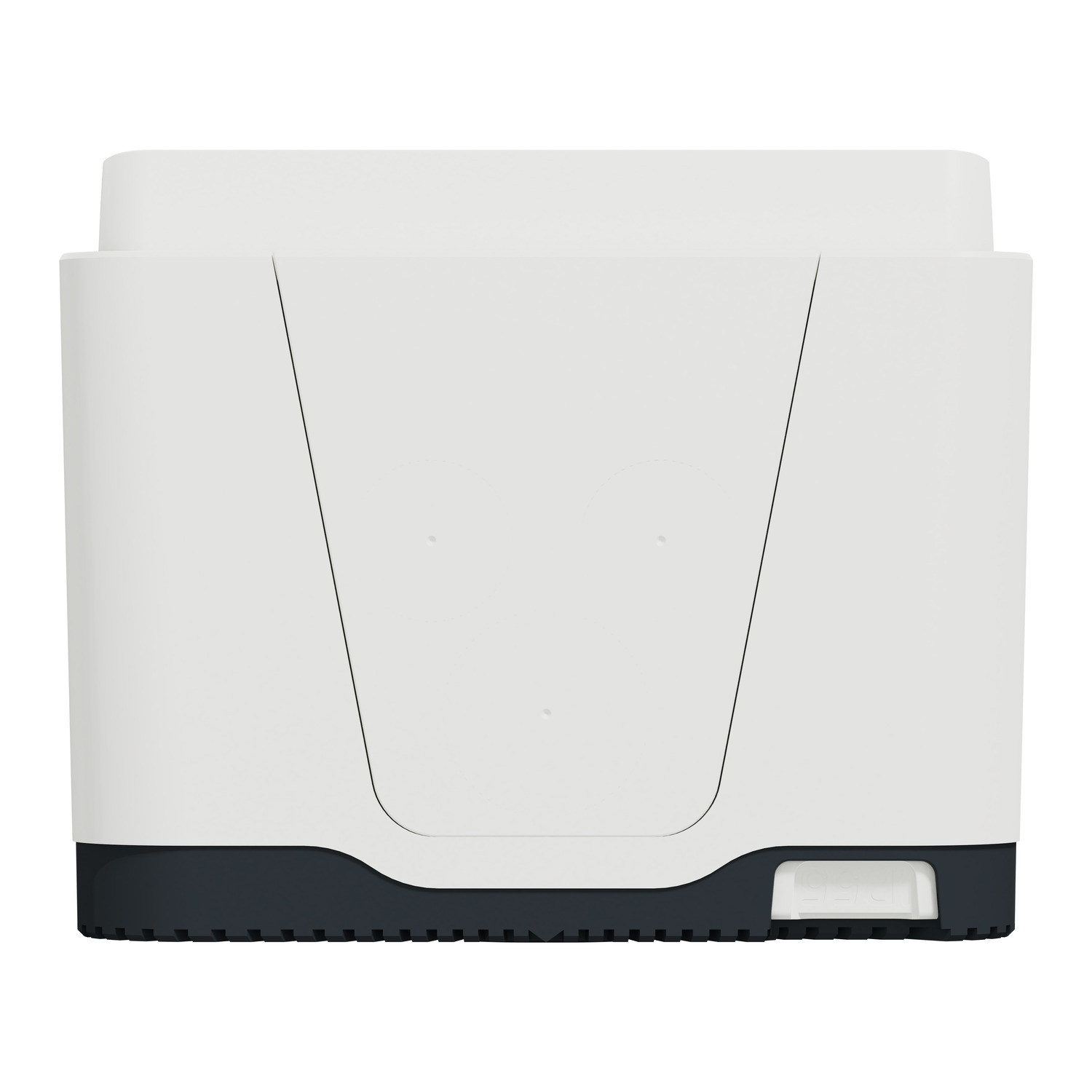

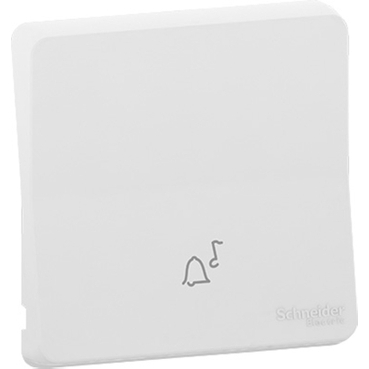

Intrerupatorul cu revenireMureva Styl MUR39026 este un dispozitiv robust care poate fi instalat in interior sau exterior. Are are un indice de protectie IP55 care ii asigura impermeabilitatea. Dispozitivul se poate fixa aparent, fara suruburi.
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Material | |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Material | Plastic |
| Halogen free | No |
| Material quality | Thermoplastic |
| Model/type | |
| With light source | No |
| With lighting | No |
| Imprint | Symbol "bell" |
| Model | Single push button |
| With signal lamp | No |
| Number of modules (module system) | - |
| Number of rockers | 1 |
| Assembly arrangement | Basic element with complete housing |
| Contactless type | No |
| Protection | |
| Suitable for degree of protection (IP) | IP55 |
| Colour | |
| RAL-number (similar) | 9003 |
| Transparent | No |
| Colour | White |
| Options | |
| IFTTT support available | No |
| Label space/information surface | Yes |
| Anti-bacterial treatment | No |
| Measurements | |
| Device depth | 64 mm |
| Min. depth of built-in installation box | - |
| Device width | 76 mm |
| Device height | 76 mm |
| Electrical | |
| Number of poles | - |
| Rated current | 10 A |
| Nominal voltage | 250 V |
| Mounting/installation | |
| Type of fastening | Screw mounting |
| Mounting method | Surface mounted |
| Connection | |
| Connection type | - |
| Number of contacts as normally open contact | - |
| Number of contacts as change-over contact | - |
| Number of contacts as normally closed contact | - |
| Number of revolving contacts | - |
| Setting/control | |
| Method of operation | Push button/touch control button |
| Communication | |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Monitoring contact | No |
| Compatible with Amazon Alexa | No |
| Other | |
| Impact strength | - |
| Package 1 | |
| volume | 340,784 cm3 |
| weight | 124 g |
| length | 7,6 cm |
| width | 5,9 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480789274 |
| Package 2 | |
| volume | 6120 cm3 |
| weight | 1,332 kg |
| length | 40 cm |
| width | 17 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606480789271 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 8,739 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 60 |
| qmin | 60 |
| um | CT |
| gtin | 43606480789272 |
