Descriere

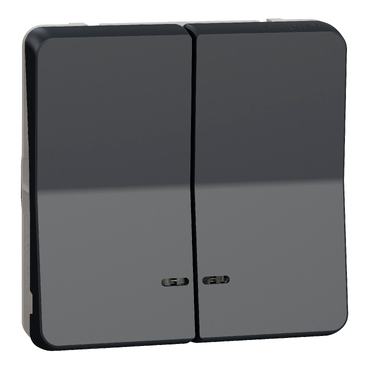

Intrerupatorul dublu cu revenire si LED Mureva Styl MUR35228 este un dispozitiv robust care poate fi instalat in interior sau exterior. Are are un indice de protectie IP55 care ii asigura impermeabilitatea. LED-ul integrat permite localizarea dispozitivului. Are o inaltime de 71 mm, o latime de 71 mm si o adancime de 40 mm
Documente
Specificatii
| Material | |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Material | Plastic |
| Halogen free | - |
| Material quality | Thermoplastic |
| Model/type | |
| With light source | - |
| With lighting | Yes |
| Imprint | Symbol "bell" |
| Model | Series push button |
| With signal lamp | Yes |
| Number of modules (module system) | - |
| Number of rockers | 2 |
| Assembly arrangement | Basic element |
| Contactless type | No |
| Protection | |
| Suitable for degree of protection (IP) | IP55 |
| Colour | |
| RAL-number (similar) | 7016 |
| Transparent | No |
| Colour | Grey |
| Options | |
| IFTTT support available | No |
| Label space/information surface | Yes |
| Anti-bacterial treatment | No |
| Measurements | |
| Device depth | 60 mm |
| Min. depth of built-in installation box | - |
| Device width | 76 mm |
| Device height | 76 mm |
| Electrical | |
| Number of poles | - |
| Rated current | 10 A |
| Nominal voltage | 250 V |
| Mounting/installation | |
| Type of fastening | Screw mounting |
| Mounting method | Built-in installation |
| Connection | |
| Connection type | - |
| Number of contacts as normally open contact | - |
| Number of contacts as change-over contact | - |
| Number of contacts as normally closed contact | - |
| Number of revolving contacts | - |
| Setting/control | |
| Method of operation | Push button |
| Communication | |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Monitoring contact | No |
| Compatible with Amazon Alexa | No |
| Other | |
| Impact strength | - |
| Package 1 | |
| volume | 207,36 cm3 |
| weight | 59 g |
| length | 7,2 cm |
| width | 7,2 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480789434 |
| Package 2 | |
| volume | 5056 cm3 |
| weight | 692 g |
| length | 39,5 cm |
| width | 16 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606480789431 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 4,886 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 60 |
| qmin | 60 |
| um | CT |
| gtin | 43606480789432 |
