Descriere

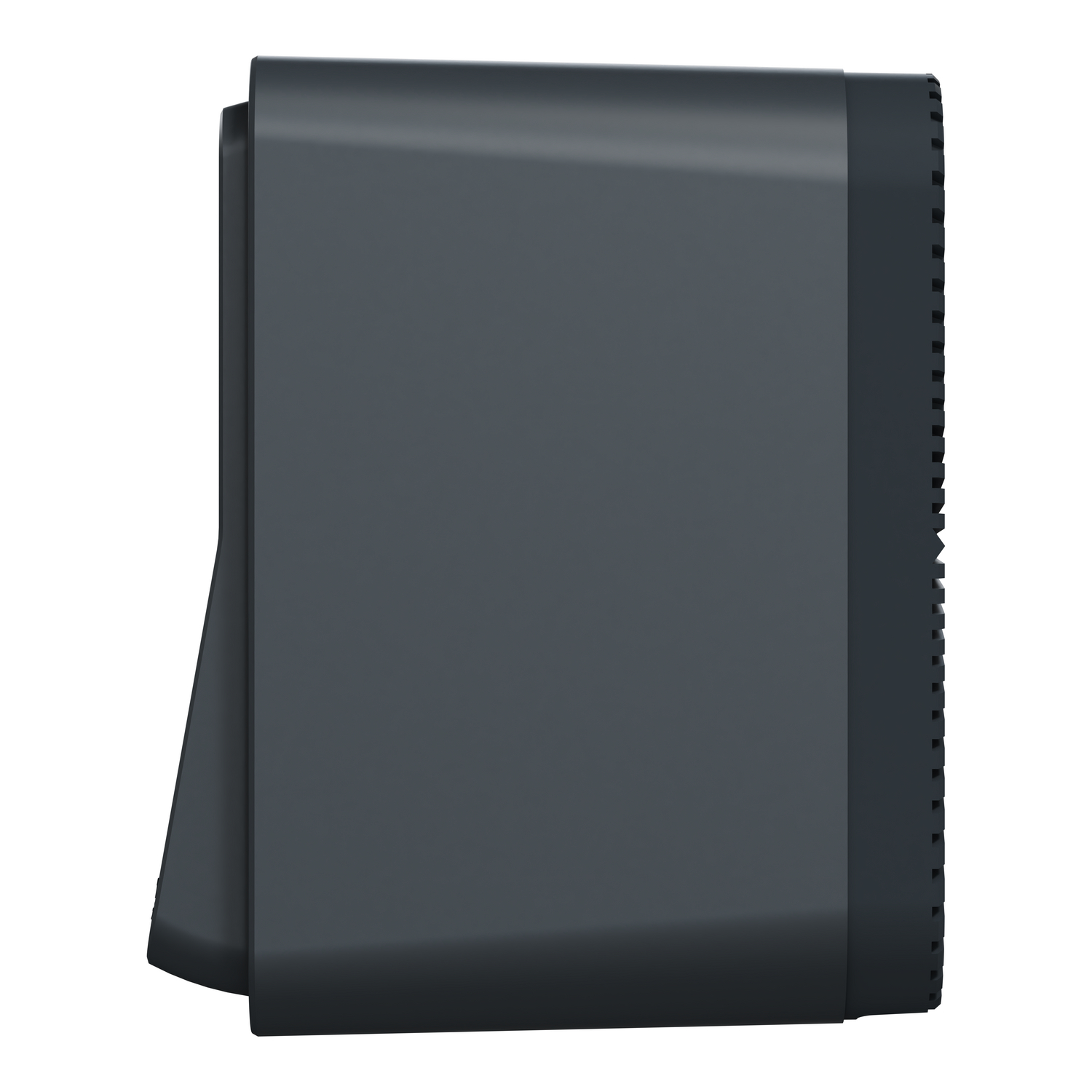

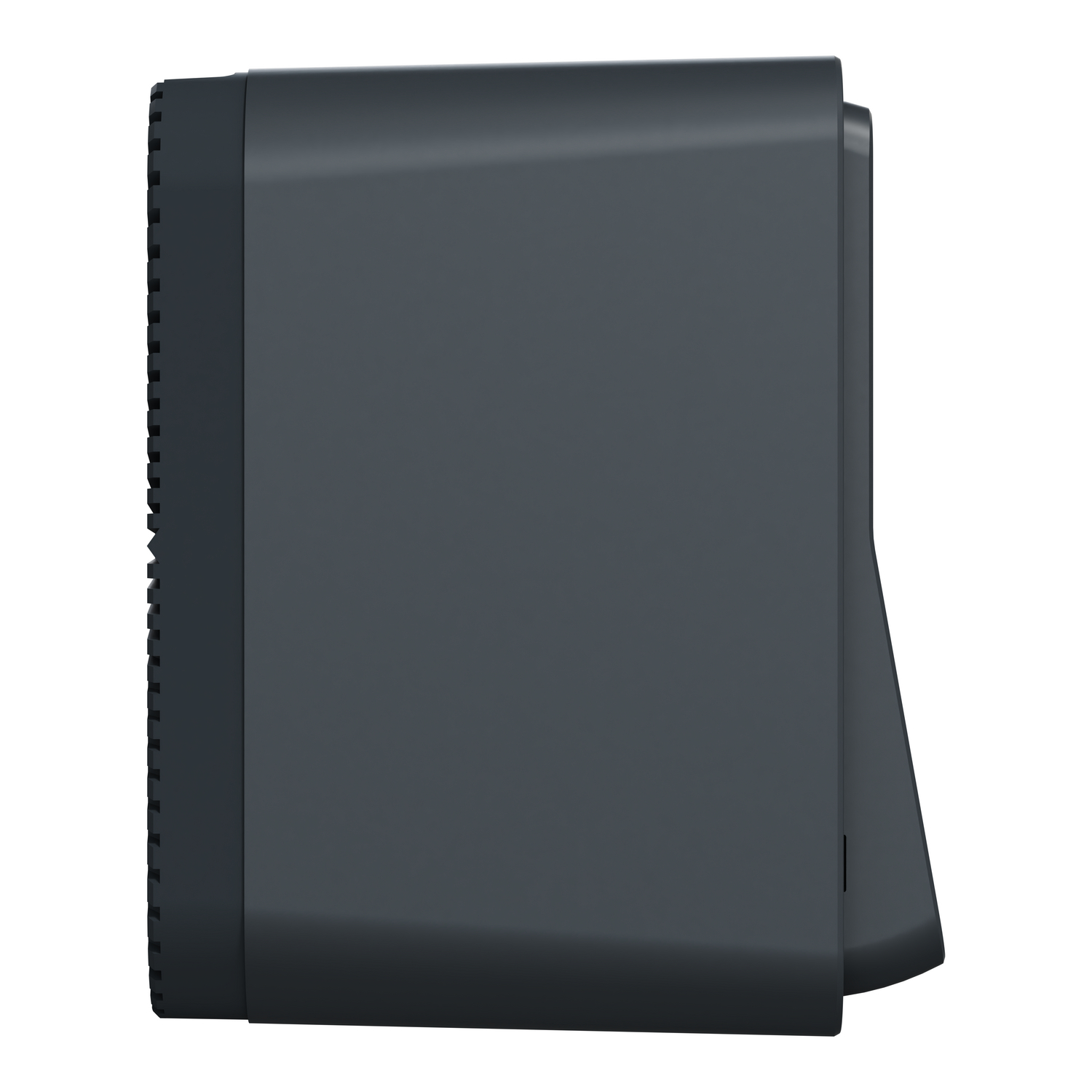

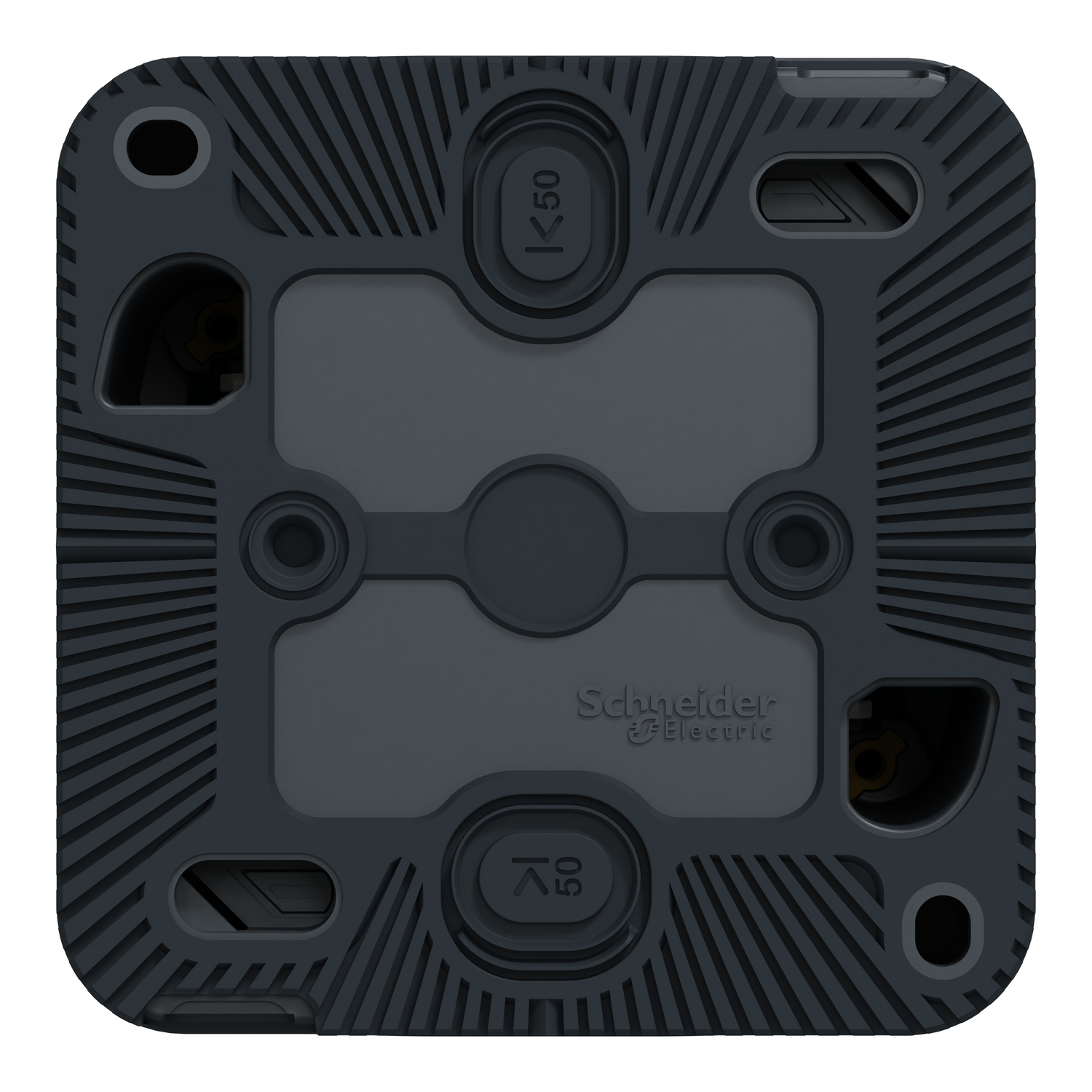

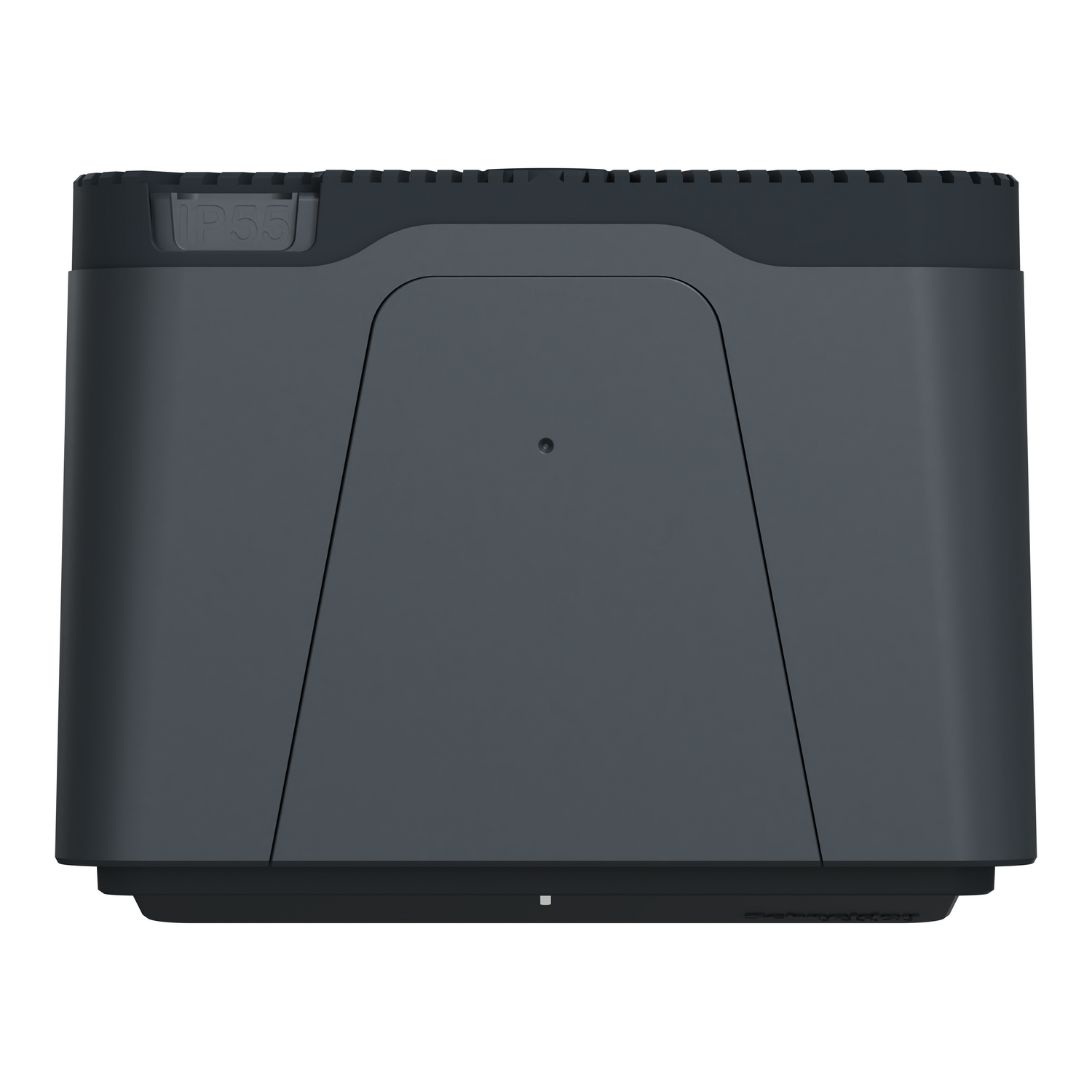

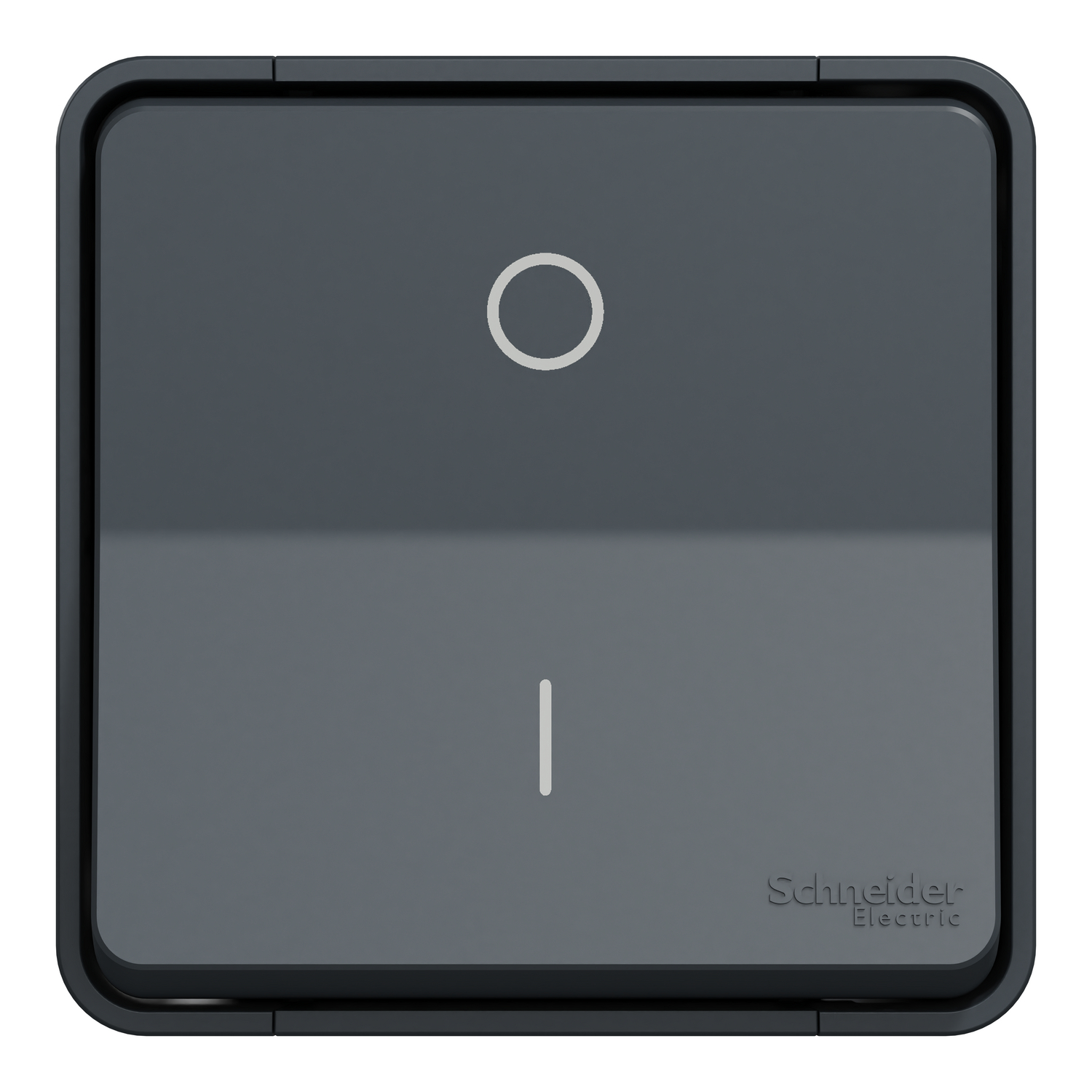

Intrerupatorul bipolar Mureva Styl MUR35033 este o solutie de incredere pentru utilizare in interior si exterior datorita gradului sau de protectie IP55 ce ii ofera impermeabilitate. Acest dispozitiv fara suruburi de 16 AX si 250 V c. a Designul sau ergonomic permite ca dispozitivul sa fie montat aparent
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Material | |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Material | Plastic |
| Halogen free | - |
| Material quality | Thermoplastic |
| Mounting/installation | |
| With mounting plate | No |
| Type of fastening | Screw mounting |
| Mounting method | Surface mounted |
| Measurements | |
| Built-in depth | 10 mm |
| Device depth | 60 mm |
| Min. depth of built-in installation box | - |
| Device width | 76 mm |
| Device height | 64 mm |
| Model/type | |
| Washing machine switch | No |
| Lighting | No |
| Type of lighting | - |
| Number of modules (module system) | - |
| Heating switch | No |
| Number of rockers | 1 |
| Label space/information surface | No |
| Assembly arrangement | Basic element with complete housing |
| Protection | |
| Suitable for degree of protection (IP) | IP55 |
| Colour | |
| RAL-number (similar) | 7016 |
| Colour | Grey |
| Options | |
| IFTTT support available | No |
| Push button switch | No |
| Anti-bacterial treatment | No |
| Electrical | |
| Switching current for fluorescent lamps | 16 AX |
| Rated current | 16 A |
| Nominal voltage | 250 V |
| Other | |
| Wiring system | Switch 2-pole |
| Impact strength | Not available |
| Function lighting | - |
| Connection | |
| Connection type | Push-in clamp |
| Setting/control | |
| Method of operation | Rocker/button |
| Communication | |
| Compatible with Apple HomeKit | No |
| Monitoring contact | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Package 1 | |
| volume | 329,232 cm3 |
| weight | 130 g |
| length | 7,6 cm |
| width | 5,7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480789175 |
| Package 2 | |
| volume | 5056 cm3 |
| weight | 1,399 kg |
| length | 39,5 cm |
| width | 16 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606480789172 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 8,66 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 60 |
| qmin | 60 |
| um | CT |
| gtin | 43606480789173 |
| Package 4 | |
| weight | 48,544 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 240 |
| qmin | 240 |
| um | PF |
