Descriere

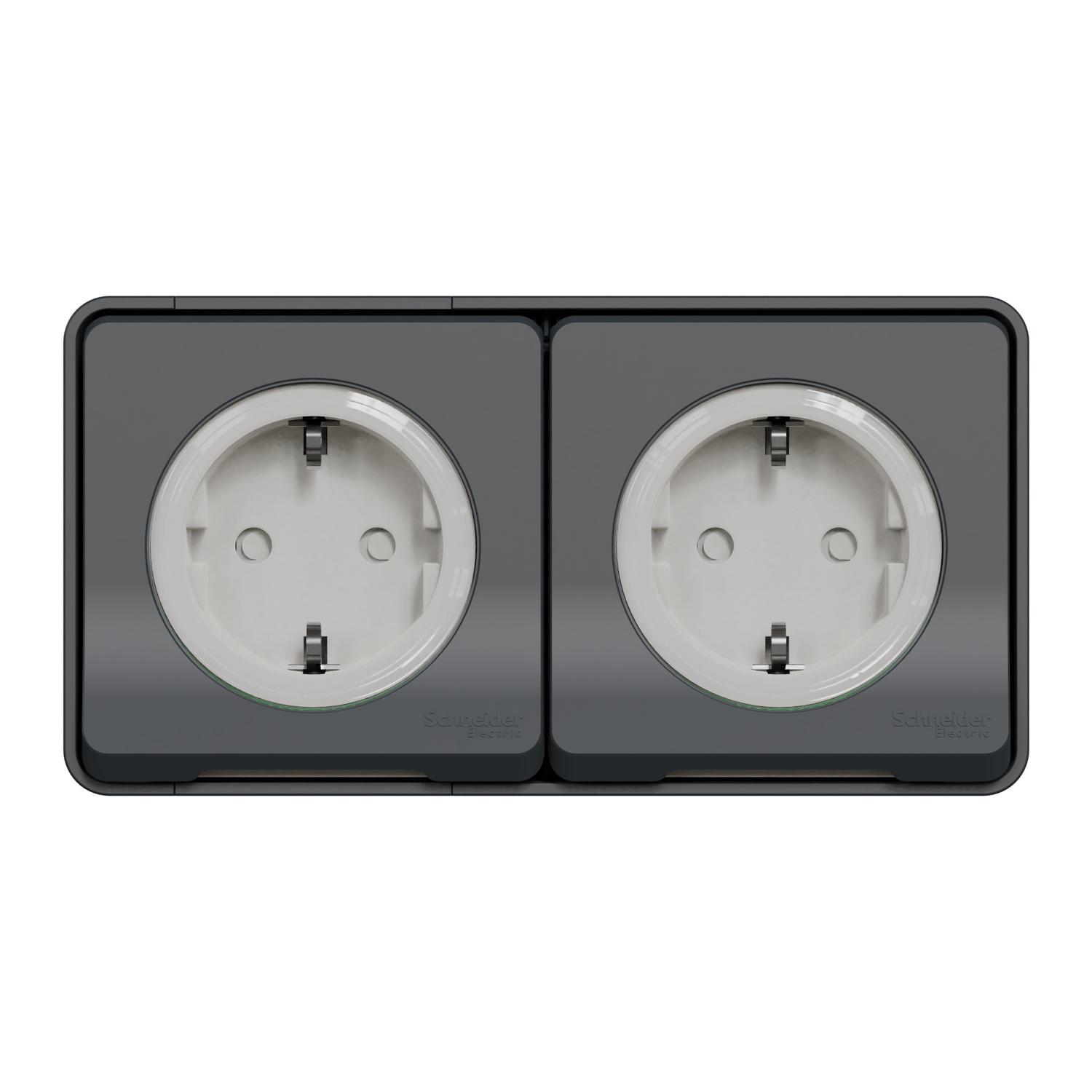

Priza electrica Mureva Styl MUR36029 este un dispozitiv robust. Dubla Schuko 2P + E cu obturatoare are un index de protectie IP55 care asigura impermeabilitatea acestuia. Este o priza electrica inovatoare, cu LED-ul, care o face vizibila in intuneric. Designul ergonomic al dispozitivului 16A se fixeaza si se dezfixeaza cu usurinta cu o singura mana, datorita spatiului mare de cablare. De asemenea, este rezistent la cele mai dure medii si poate fi utilizat in interior si exterior. Capacul transparent permite vizualizarea luminii pentru a o localiza cu usurinta dar si pentru a evita confuzia unei prize cu un comutator.
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Model/type | |
| With hinged lid | No |
| With signal lamp | No |
| Number of modules (module system) | 4 |
| With on/off switch | No |
| Model | Other |
| Number of socket outlets switchable | - |
| With function lighting | No |
| With orientation lighting | No |
| With enhanced contact protection | No |
| With loop through function | No |
| With miniature fuse | No |
| Number of units | 2 |
| Protective earth pin round | Yes |
| Electrical | |
| Number of phases | 1 |
| With built-in USB power supply | No |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
| Overvoltage protection | No |
| Special power supply | No special power supply |
| Rated fault current | 0 mA |
| Type of USB power supply | - |
| Options | |
| Lockable | No |
| Eject-mechanism | No |
| Rotated central insert | No |
| Anti-bacterial treatment | No |
| IFTTT support available | No |
| Label space/information surface | No |
| Other | |
| Imprint/indication | None |
| Impact strength | IK08 |
| Frequency | 50 Hz |
| Colour | |
| Colour | Anthracite |
| Metallic colour | No |
| RAL-number (similar) | 7035 |
| Transparent | No |
| Measurements | |
| Device width | 76 mm |
| Device height | 147 mm |
| Device depth | 63 mm |
| Min. depth of built-in installation box | - |
| Protection | |
| Fault current protection | No |
| Suitable for degree of protection (IP) | IP55 |
| Protective contact | Yes |
| Mounting/installation | |
| Mounting method | Surface mounted |
| Insulated mounting | No |
| Type of fastening | Mounting with screw |
| Connection | |
| Connection type | Push-in clamp |
| Number of active contacts (flat) | - |
| Number of active contacts (round) | 2 |
| Material | |
| Material quality | Thermoplastic |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Material | Plastic |
| Halogen free | Yes |
| Communication | |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Approval/certification | |
| For heavy conditions according to VDE | No |
| Package 1 | |
| volume | 706,875 cm3 |
| weight | 250 g |
| length | 14,5 cm |
| width | 7,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480789724 |
| Package 2 | |
| volume | 4740 cm3 |
| weight | 1,35 kg |
| length | 39,5 cm |
| width | 16 cm |
| qmax | 5 |
| qmin | 5 |
| um | BX |
| gtin | 13606480789721 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 8,893 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 30 |
| qmin | 30 |
| um | CT |
| gtin | 43606480789722 |
| Package 4 | |
| weight | 47,004 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 120 |
| qmin | 120 |
| um | PF |
