Descriere

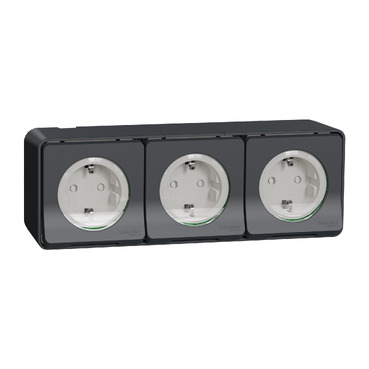

Mureva Styl MUR36038 este un dispozitiv robust. Priza tripla schuko 2P + E 16A cu obturatoare are un indice de protectie IP55 care ii asigura impermeabilitatea. De asemenea, este rezistent la cele mai dure medii si poate fi folosit in interior si exterior
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Model/type | |
| With hinged lid | No |
| With signal lamp | No |
| Number of modules (module system) | 6 |
| With on/off switch | No |
| Model | Other |
| Number of socket outlets switchable | - |
| With function lighting | No |
| With orientation lighting | No |
| With enhanced contact protection | No |
| With loop through function | No |
| With miniature fuse | No |
| Number of units | 3 |
| Protective earth pin round | Yes |
| Electrical | |
| Number of phases | 3 |
| With built-in USB power supply | No |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
| Overvoltage protection | No |
| Special power supply | No special power supply |
| Rated fault current | 0 mA |
| Type of USB power supply | - |
| Options | |
| Lockable | No |
| Eject-mechanism | No |
| Rotated central insert | No |
| Anti-bacterial treatment | No |
| IFTTT support available | No |
| Label space/information surface | No |
| Other | |
| Imprint/indication | None |
| Impact strength | IK08 |
| Frequency | 50 Hz |
| Colour | |
| Colour | Anthracite |
| Metallic colour | No |
| RAL-number (similar) | 7035 |
| Transparent | No |
| Measurements | |
| Device width | 76 mm |
| Device height | 218 mm |
| Device depth | 57 mm |
| Min. depth of built-in installation box | - |
| Protection | |
| Fault current protection | No |
| Suitable for degree of protection (IP) | IP55 |
| Protective contact | Yes |
| Connection | |
| Connection type | Screwed terminal |
| Number of active contacts (flat) | - |
| Number of active contacts (round) | 3 |
| Mounting/installation | |
| Mounting method | Surface mounted |
| Insulated mounting | No |
| Type of fastening | Mounting with screw |
| Material | |
| Material quality | Thermoplastic |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Material | Plastic |
| Halogen free | No |
| Communication | |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Approval/certification | |
| For heavy conditions according to VDE | No |
| Package 1 | |
| volume | 944,376 cm3 |
| weight | 369 g |
| length | 21,8 cm |
| width | 5,7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480789793 |
| Package 2 | |
| volume | 5056 cm3 |
| weight | 830 g |
| length | 39,5 cm |
| width | 16 cm |
| qmax | 2 |
| qmin | 2 |
| um | BX |
| gtin | 13606480789790 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 5,846 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 12 |
| qmin | 12 |
| um | CT |
| gtin | 43606480789791 |
| Package 4 | |
| weight | 37,648 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 48 |
| qmin | 48 |
| um | PF |
