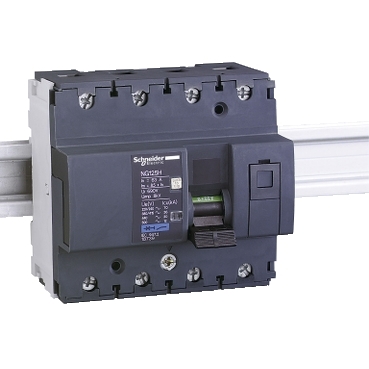

NG125H 4P 32A C

Cod produs: 18736

Autentificati-va pentru a vedea pretul.

Producator: Schneider Electric

Set: 1 bucati

3303430187363

Descriere

Acti9 Intreruptor Automat, Ng125H, 4 Poli, 32 A, curba C

Documente

logo-pdf NG125H 4P 32A C

Link

Specificatii

Measurements
Built-in depth	47 mm
Width in number of modular spacings	6
Other
Frequency	50 Hz
Pollution degree	3
Model/type
Number of poles (total)	4
Number of protected poles	4
Electrical
Rated insulation voltage Ui	690 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	70 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	-
Rated impulse withstand voltage Uimp	8 kV
Rated current	32 A
Rated voltage	415 V
Release characteristic	C
Voltage type	AC/DC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	36 kA
Overvoltage category	4
Current limiting class	-
Options
Additional equipment possible	Yes
Concurrently switching neutral conductor	Yes
Protection
Degree of protection (IP)	IP20
Explosion-proof	No
Mounting/installation
Flush-mounted installation	No
Connection
Connectable conductor cross section solid-core	1.5 mm²
Connectable conductor cross section multi-wired	1 mm²
Operating conditions
Ambient temperature during operating	-30 °C
Package 1
volume	1674,248 cm3
weight	979 g
length	15,7 cm
width	12,4 cm
qmax	1
qmin	1
um	C62
gtin	3303430187363
Package 2
volume	36000 cm3
weight	12,242 kg
length	40 cm
width	30 cm
qmax	12
qmin	12
um	CT
gtin	43303430187361

Afiseaza mai multe specificatii
