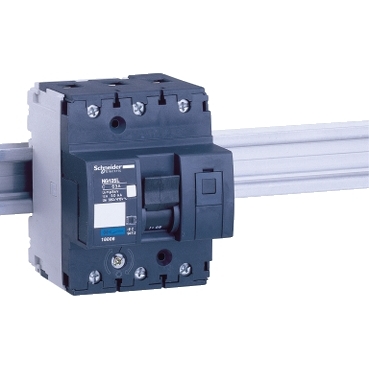

NG125L 3P 10A C

Cod produs: 18799

Autentificati-va pentru a vedea pretul.

Producator: Schneider Electric

Set: 1 bucati

3303430187998

Descriere

Acti9 Intreruptor Automat, Ng125L, 3 Poli, 10 A, curba C

Documente

logo-pdf NG125L 3P 10A C

Link

Specificatii

Measurements
Built-in depth	47 mm
Width in number of modular spacings	4.5
Other
Frequency	50 Hz
Pollution degree	3
Electrical
Rated insulation voltage Ui	690 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	100 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	-
Rated impulse withstand voltage Uimp	8 kV
Rated current	10 A
Rated voltage	415 V
Release characteristic	C
Voltage type	AC/DC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	50 kA
Overvoltage category	4
Current limiting class	-
Model/type
Number of poles (total)	3
Number of protected poles	3
Options
Additional equipment possible	Yes
Concurrently switching neutral conductor	No
Protection
Degree of protection (IP)	IP20
Explosion-proof	No
Mounting/installation
Flush-mounted installation	No
Connection
Connectable conductor cross section solid-core	1.5 mm²
Connectable conductor cross section multi-wired	1 mm²
Operating conditions
Ambient temperature during operating	-30 °C
Package 1
volume	1310,64 cm3
weight	752 g
length	12,7 cm
width	12 cm
qmax	1
qmin	1
um	C62
gtin	3303430187998
Package 2
volume	36000 cm3
weight	14,04 kg
length	40 cm
width	30 cm
qmax	18
qmin	18
um	CT
gtin	43303430187996

Afiseaza mai multe specificatii
