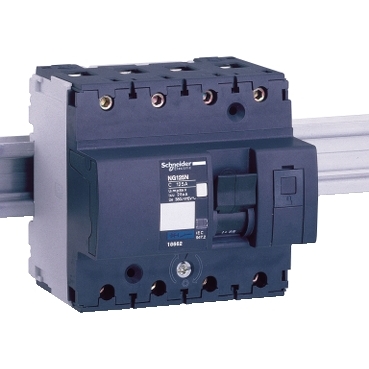

NG125N 4P 100A D

Cod produs: 18673

Autentificati-va pentru a vedea pretul.

Producator: Schneider Electric

Set: 1 bucati

3303430186731

Descriere

Acti9 Intreruptor Automat, Ng125N, 4 Poli, 100 A, curba D

Documente

logo-pdf NG125N 4P 100A D

Link

Specificatii

Other
Frequency	50 Hz
Pollution degree	3
Measurements
Built-in depth	47 mm
Width in number of modular spacings	6
Model/type
Number of poles (total)	4
Number of protected poles	4
Electrical
Rated insulation voltage Ui	690 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	50 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	-
Rated impulse withstand voltage Uimp	8 kV
Rated current	100 A
Rated voltage	400 V
Release characteristic	D
Voltage type	AC/DC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	25 kA
Overvoltage category	4
Current limiting class	-
Options
Additional equipment possible	Yes
Concurrently switching neutral conductor	Yes
Protection
Degree of protection (IP)	IP20
Explosion-proof	No
Mounting/installation
Flush-mounted installation	No
Connection
Connectable conductor cross section solid-core	16 mm²
Connectable conductor cross section multi-wired	10 mm²
Operating conditions
Ambient temperature during operating	-30 °C
Package 1
volume	1663,584 cm3
weight	1,046 kg
length	15,6 cm
width	12,4 cm
qmax	1
qmin	1
um	C62
gtin	3303430186731
Package 2
volume	36000 cm3
weight	13,361 kg
length	40 cm
width	30 cm
qmax	12
qmin	12
um	CT
gtin	43303430186739

Afiseaza mai multe specificatii
