Descriere

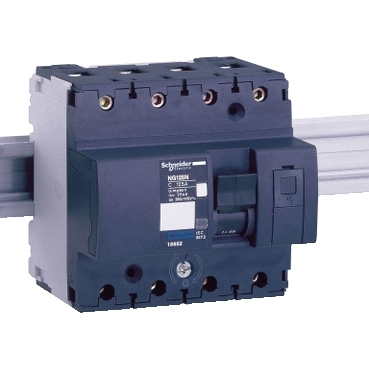

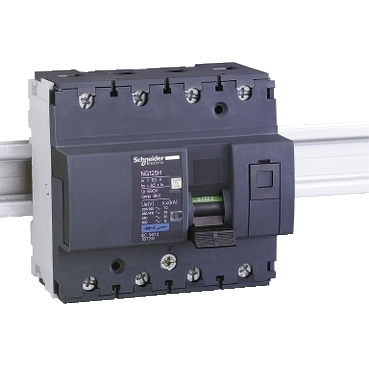

Acest Acti9 NG125N este un intreruptor automat de joasa tensiune. Este un disjunctor 4P cu 4 poli protejati, curent nominal In de 63 A si curba de declansare C. Capacitatea nominala de rupere la scurcircuit Icn este de pana la 25 kA la 380 V c.a. la 415 V c.a. in conformitate cu standardul EN/IEC 60947-2 si 25 kA la 380 V c.a. la 415 V c.a. in conformitate cu standardul EN/IEC 60947-2. Este compatibil atat cu standardul rezidential EN/IEC 60898-1, cat si cu standardul industrial EN/IEC 60947-2. Acest disjunctor protejeaza circuitele la scurtcircuit si suprasarcina. Este adecvat pentru izolare in sectorul industrial conform standardului IEC/EN 60947-2. Declansarea la defect este semnalizata de un indicator luminos de culoare rosie pe fata aparatului. Are o anduranta electrica de pana la 10000 de cicluri si o anduranta mecanica de pana la 20000 de cicluri. Tensiunea operationala Ue este de la 380 V c.a. la 415 V c.a.. Tensiunea nominala de izolatie Ui este de 690 V c.a. Tensiunea nominala de rezistenta la impuls Uimp este de 8 kV. Frecventa de functionare este de 50 Hz sau 60 Hz. Se monteaza pe sina DIN. Latimea sa este de 12 module de 9 mm. Gradul de poluare este 3. Categoria de supratensiune este IV. Dimensiunile sunt (L) 108mm x (I) 103mm x (a) 81mm. Greutatea este de 0,96 kg. Are grad de protectie IP20 (conform SR EN 60529) la borne, montat in cofret. Temperatura de functionare este de la -30°C la 70°C. Temperatura de depozitare este de la -40°C la 70°C.
Documente
Specificatii
| Other | |
| Frequency | 50 Hz |
| Pollution degree | 3 |
| Measurements | |
| Built-in depth | 47 mm |
| Width in number of modular spacings | 6 |
| Model/type | |
| Number of poles (total) | 4 |
| Number of protected poles | 4 |
| Electrical | |
| Rated insulation voltage Ui | 690 V |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | - |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 50 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | - |
| Rated impulse withstand voltage Uimp | 8 kV |
| Rated current | 63 A |
| Rated voltage | 400 V |
| Release characteristic | C |
| Voltage type | AC/DC |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | 25 kA |
| Overvoltage category | 4 |
| Current limiting class | - |
| Options | |
| Additional equipment possible | Yes |
| Concurrently switching neutral conductor | Yes |
| Protection | |
| Degree of protection (IP) | IP20 |
| Explosion-proof | No |
| Mounting/installation | |
| Flush-mounted installation | No |
| Connection | |
| Connectable conductor cross section solid-core | 1.5 mm² |
| Connectable conductor cross section multi-wired | 1 mm² |
| Operating conditions | |
| Ambient temperature during operating | -30 °C |
| Package 1 | |
| volume | 1633,742 cm3 |
| weight | 1,005 kg |
| length | 15,7 cm |
| width | 12,1 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3303430186564 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 12,547 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 12 |
| qmin | 12 |
| um | CT |
| gtin | 43303430186562 |
| Package 3 | |
| volume | 432000 cm3 |
| weight | 112,184 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 96 |
| qmin | 96 |
| um | PF |
| gtin | 73303430186563 |
