Descriere

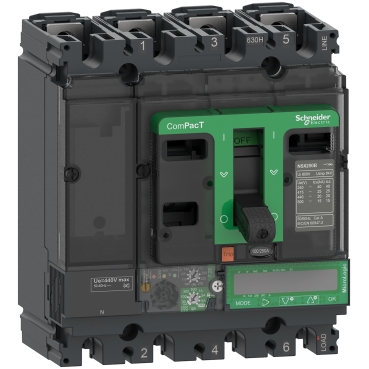

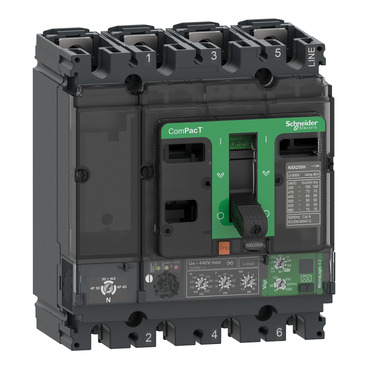

Acest ComPacT NSX100B este un disjunctor fix, tetrapolar, complet 4P 4d, proiectat pentru a optimiza spatiul si capacitatea de rupere. Este o alegere optima pentru toate aplicatiile standard si specifice. Capacitatea de rupere (Icu) este de 25 kA rms la 415 V c.a. 50/60 Hz. Tensiunea de functionare este de 440 V c.a. 50/60 Hz. Acest produs incorporeaza o unitate de declansare electronica MicroLogic 4.2 Vigi cu un curent nominal de 100 A, cu o protectie integrata reglabila la scurgeri la pamant. MicroLogic 4.2 Vigi ofera, de asemenea, protectii reglabile cu timp mare si timp scurt si o protectie instantanee fixa. Aceasta versiune cu 4 poli (140 mm x 161 mm x 86 mm) este insotita de o varietate de functii si accesorii optionale. Este conform cu standardele internationale (IEC 60947), CCC, EAC si specificatiile maritime. ComPacT NSX100B face parte din arhitectura EcoStruxure Power de la Schneider Electric.
Documente
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Position of connection for main current circuit | Front side |
| Protection | |
| Complete device with protection unit | Yes |
| Integrated earth fault protection | Yes |
| Degree of protection (IP) | IP40 |
| Model/type | |
| Type of control element | Wing knob |
| With switched-off indicator | Yes |
| Motor drive integrated | No |
| Mounting/installation | |
| DIN rail (top hat rail) mounting optional | Yes |
| Suitable for DIN rail (top hat rail) mounting | No |
| Electrical | |
| Overload release current setting | 40 A |
| Rated permanent current Iu | 100 A |
| Rated voltage | 440 V |
| Adjustment range short-term delayed short-circuit release | 60 A |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz | 25 kA |
| Number of poles | 4 |
| With integrated under voltage release | No |
| Adjustment range undelayed short-circuit release | 1500 A |
| Options | |
| Motor drive optional | Yes |
| Other | |
| Device construction | Built-in device fixed built-in technique |
| Package 1 | |
| volume | 4077,104 cm3 |
| weight | 2,528 kg |
| length | 19,4 cm |
| width | 14,8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481993328 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 10,5 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 4 |
| qmin | 4 |
| um | CT |
| gtin | 13606481993325 |
