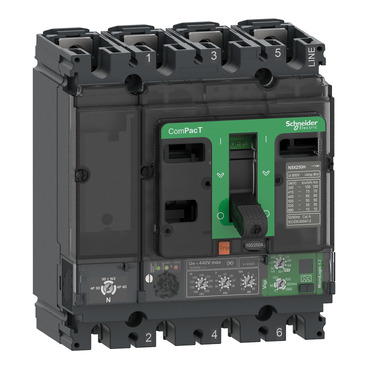

NSX100N 50kA AC 4P4D 100A 4.2

Cod produs: C10N44V100

Autentificati-va pentru a vedea pretul.

Producator: Schneider Electric

Set: 1 bucati

3606481993601

Intreruptor ComPacT NSX100N, 50 kA la 415 VAC, MicroLogic 4.2 Vigi unitate de declansare 100A, 4 poli 4d

Connection
Type of electrical connection of main circuit	Screw connection
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as change-over contact	0
Position of connection for main current circuit	Front side
Protection
Complete device with protection unit	Yes
Integrated earth fault protection	Yes
Degree of protection (IP)	IP40
Model/type
Type of control element	Wing knob
With switched-off indicator	Yes
Motor drive integrated	No
Mounting/installation
DIN rail (top hat rail) mounting optional	Yes
Suitable for DIN rail (top hat rail) mounting	No
Electrical
Overload release current setting	40 A
Rated voltage	440 V
Rated permanent current Iu	100 A
Adjustment range short-term delayed short-circuit release	60 A
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz	50 kA
Number of poles	4
With integrated under voltage release	No
Adjustment range undelayed short-circuit release	1500 A
Options
Motor drive optional	Yes
Other
Device construction	Built-in device fixed built-in technique
Package 1
volume	3857 cm3
weight	2,529 kg
length	19 cm
width	14,5 cm
qmax	1
qmin	1
um	C62
gtin	3606481993601
Package 2
volume	36000 cm3
weight	10,486 kg
length	40 cm
width	30 cm
qmax	4
qmin	4
um	CT
gtin	13606481993608
