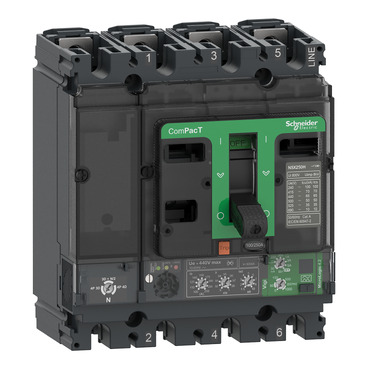

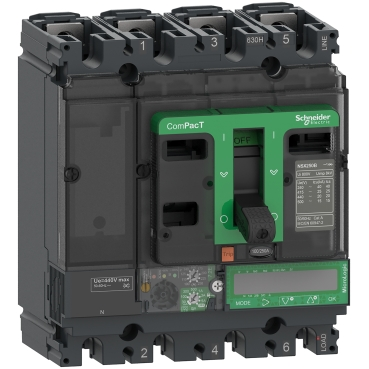

NSX250F 36kA AC 4P4D 160A 4.2

Cod produs: C25F44V160

Autentificati-va pentru a vedea pretul.

Producator: Schneider Electric

Set: 1 bucati

3606481993502

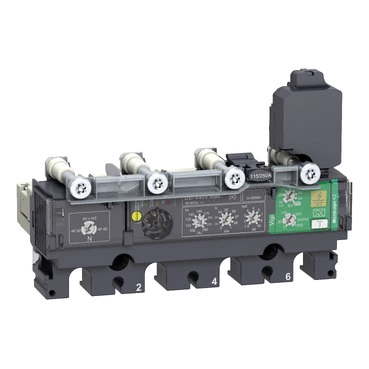

Intreruptor ComPacT NSX250F, 36 kA la 415 VAC, MicroLogic 4.2 Vigi unitate de declansare 160A, 4 poli 4d

Connection
Type of electrical connection of main circuit	Screw connection
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as change-over contact	0
Position of connection for main current circuit	Front side
Protection
Complete device with protection unit	Yes
Integrated earth fault protection	Yes
Degree of protection (IP)	IP40
Model/type
Type of control element	Wing knob
With switched-off indicator	Yes
Motor drive integrated	No
Mounting/installation
DIN rail (top hat rail) mounting optional	Yes
Suitable for DIN rail (top hat rail) mounting	No
Electrical
Overload release current setting	63 A
Rated permanent current Iu	160 A
Rated voltage	440 V
Adjustment range short-term delayed short-circuit release	94.5 A
Number of poles	4
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz	36 kA
With integrated under voltage release	No
Adjustment range undelayed short-circuit release	2400 A
Options
Motor drive optional	Yes
Other
Device construction	Built-in device fixed built-in technique
Package 1
volume	3990 cm3
weight	2,5 kg
length	19 cm
width	15 cm
qmax	1
qmin	1
um	C62
gtin	3606481993502
Package 2
volume	36000 cm3
weight	15 kg
length	40 cm
width	30 cm
qmax	6
qmin	6
um	CT
gtin	43606481993500
