Descriere

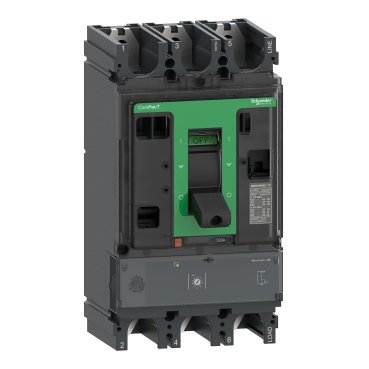

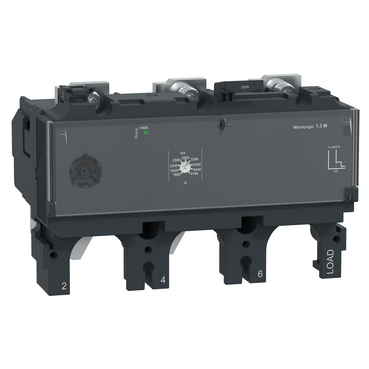

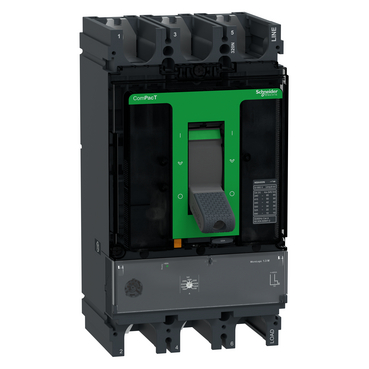

Intreruptor ComPacT NSX400N, 50 kA la 415 VAC, unitate de declansare MicroLogic 1.3 M 320A, 3 poli 3d
Documente
Fisa tehnica
Altele
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Measurements | |
| Width | 140 mm |
| Depth | 110 mm |
| Height | 255 mm |
| Model/type | |
| Type of control element | Other |
| With integrated auxiliary switch | No |
| With thermal overload protection | No |
| Electrical | |
| Rated operation power at AC-3, 400 V | - |
| Overload release current setting | - |
| Rated permanent current Iu | 320 A |
| Rated operating voltage | 690 V |
| Rated operation power at AC-3, 230 V | - |
| Number of poles | 3 |
| With integrated under voltage release | No |
| Rated short-circuit breaking capacity Icu at 400 V, AC | 50 kA |
| Adjustment range undelayed short-circuit release | 4800 A |
| Other | |
| Switch off technique | Electronic |
| Device construction | Built-in device fixed built-in technique |
| Options | |
| Phase failure sensitive | No |
| Protection | |
| Degree of protection (IP) | IP40 |
| Package 1 | |
| volume | 6746,368 cm3 |
| weight | 5,588 kg |
| length | 29,2 cm |
| width | 15,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606482002708 |
| Package 2 | |
| volume | 72000 cm3 |
| weight | 11,761 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 2 |
| qmin | 2 |
| um | CT |
| gtin | 13606482002705 |
