Descriere

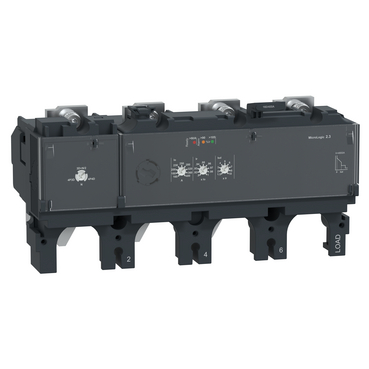

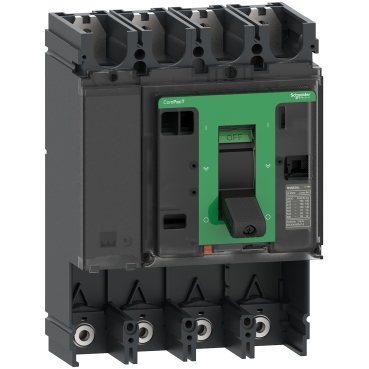

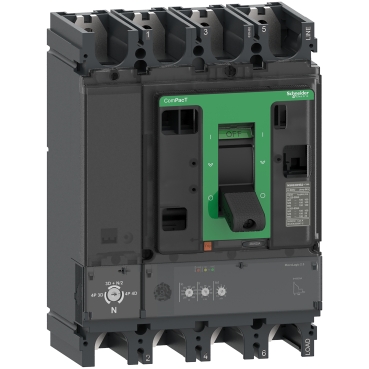

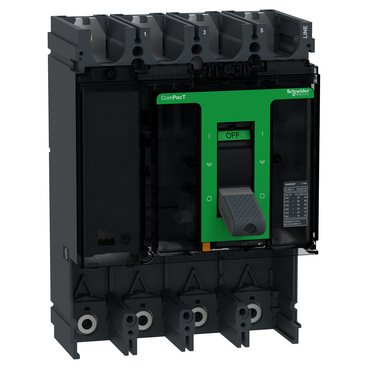

Acest ComPacT NSX630F este un disjunctor fix, tetrapolar, complet 4P 4d, proiectat pentru a optimiza spatiul si capacitatea de rupere. Este o alegere optima pentru toate aplicatiile standard si specifice. Capacitatea de rupere (Icu) este de 36 kA rms la 415 V c.a. 50/60 Hz. Tensiunea de functionare este de 690 V c.a. 50/60 Hz. Acest produs incorporeaza o unitate de declansare MicroLogic 2.3 electronica, cu un curent nominal de 630 A. Unitatea de declansare MicroLogic 2.3 ofera protectii reglabile cu timp mare si timp scurt si o protectie instantanee fixa. Aceasta versiune cu 4 poli (185 mm x 255 mm x 110 mm) este insotita de o varietate de functii si accesorii optionale. Este conform cu standardele internationale (IEC 60947), CCC, EAC si specificatiile maritime. ComPacT NSX630F face parte din arhitectura EcoStruxure Power de la Schneider Electric.
Documente
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Position of connection for main current circuit | Front side |
| Protection | |
| Complete device with protection unit | Yes |
| Integrated earth fault protection | No |
| Degree of protection (IP) | IP40 |
| Model/type | |
| Type of control element | Wing knob |
| With switched-off indicator | Yes |
| Motor drive integrated | No |
| Mounting/installation | |
| DIN rail (top hat rail) mounting optional | No |
| Suitable for DIN rail (top hat rail) mounting | No |
| Electrical | |
| Overload release current setting | 250 A |
| Rated permanent current Iu | 630 A |
| Rated voltage | 690 V |
| Adjustment range short-term delayed short-circuit release | 375 A |
| Number of poles | 4 |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz | 36 kA |
| With integrated under voltage release | No |
| Adjustment range undelayed short-circuit release | 6900 A |
| Options | |
| Motor drive optional | Yes |
| Other | |
| Device construction | Built-in device fixed built-in technique |
| Package 1 | |
| volume | 8700 cm3 |
| weight | 7,434 kg |
| length | 29 cm |
| width | 20 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606482002661 |
| Package 2 | |
| volume | 72000 cm3 |
| weight | 15,568 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 2 |
| qmin | 2 |
| um | CT |
| gtin | 13606482002668 |
