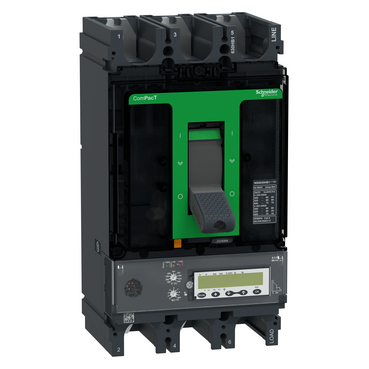

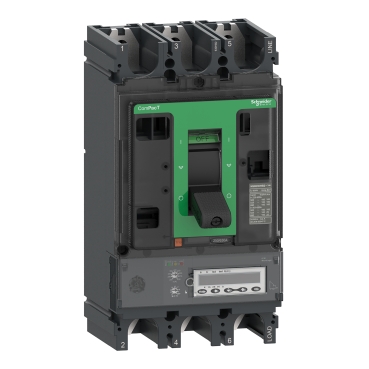

Intreruptor ComPacT NSX630HB1, 75 kA la 690 VAC, unitate de declansare MicroLogic 6.3 E 630A, 3 poli 3d
Documente
Specificatii
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as change-over contact | 0 |
| Position of connection for main current circuit | Front side |
| Protection | |
| Complete device with protection unit | Yes |
| Integrated earth fault protection | Yes |
| Degree of protection (IP) | IP40 |
| Model/type | |
| Type of control element | Wing knob |
| With switched-off indicator | Yes |
| Motor drive integrated | No |
| Mounting/installation | |
| DIN rail (top hat rail) mounting optional | No |
| Suitable for DIN rail (top hat rail) mounting | No |
| Electrical | |
| Overload release current setting | 250 A |
| Rated permanent current Iu | 630 A |
| Rated voltage | 690 V |
| Adjustment range short-term delayed short-circuit release | 375 A |
| Rated short-circuit breaking capacity Icu at 400 V, 50 Hz | - |
| Number of poles | 3 |
| With integrated under voltage release | No |
| Adjustment range undelayed short-circuit release | 945 A |
| Options | |
| Motor drive optional | Yes |
| Other | |
| Device construction | Built-in device fixed built-in technique |
| Package 1 | |
| volume | 6746,368 cm3 |
| weight | 5,79 kg |
| length | 29,2 cm |
| width | 15,2 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481989024 |
| Package 2 | |
| volume | 72000 cm3 |
| weight | 18,02 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 3 |
| qmin | 3 |
| um | CT |
| gtin | 13606481989021 |
| Package 3 | |
| volume | 432000 cm3 |
| weight | 84,08 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 12 |
| qmin | 12 |
| um | PF |
