Descriere

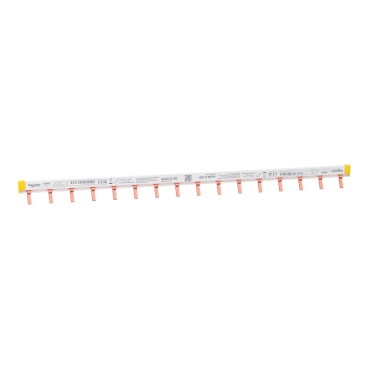

Acti9, Bare Colectoare Tip Pieptene, 1L, Inclinare 27mm , 24 Module, 125A
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Specificatii
| Colour | |
| Colour | White |
| Measurements | |
| Length | 432 mm |
| Cross section | 16 mm² |
| Width in number of modular spacings | 24 |
| Module width | 27 mm |
| Options | |
| Insulated | Yes |
| Connection | |
| Type of electric connection | Pin |
| Electrical | |
| Number of phases | 1 |
| Rated surge voltage | - |
| Conditioned rated short-circuit current Iq | - |
| Rated permanent current Iu | 125 A |
| Number of poles | 1 |
| Max. rated operation voltage Ue | 500 V |
| Rated short-time withstand current lcw | - |
| Application | |
| Suitable for devices with auxiliary switch | No |
| Suitable for devices with N-conductor | No |
| Suitable for number of devices | 16 |
| Package 1 | |
| volume | 616 cm3 |
| weight | 105 g |
| length | 44 cm |
| width | 7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3303430148111 |
| Package 2 | |
| volume | 13596 cm3 |
| weight | 2,41 kg |
| length | 103 cm |
| width | 11 cm |
| qmax | 20 |
| qmin | 20 |
| um | BX |
| gtin | 23303430148115 |
| Package 3 | |
| volume | 259200 cm3 |
| weight | 21,64 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 80 |
| qmin | 80 |
| um | PF |
