Descriere

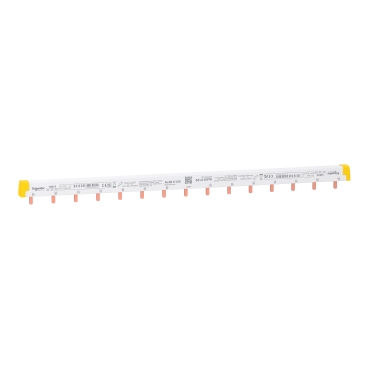

Bara Colectoare Tip Pieptene Domae, 3 Poli, 63 A, L = 405 Mm, 15 X 27 Mm
Documente
Specificatii
| Colour | |
| Colour | White |
| Measurements | |
| Length | 405 mm |
| Cross section | 16 mm² |
| Width in number of modular spacings | 22 |
| Module width | 27 mm |
| Options | |
| Insulated | Yes |
| Electrical | |
| Number of phases | 3 |
| Rated surge voltage | - |
| Rated permanent current Iu | 63 A |
| Conditioned rated short-circuit current Iq | - |
| Number of poles | 3 |
| Max. rated operation voltage Ue | 500 V |
| Rated short-time withstand current lcw | - |
| Connection | |
| Type of electric connection | Pin |
| Application | |
| Suitable for devices with auxiliary switch | No |
| Suitable for devices with N-conductor | No |
| Suitable for number of devices | 5 |
| Package 1 | |
| volume | 357 cm3 |
| weight | 218 g |
| length | 42 cm |
| width | 5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3303430148135 |
| Package 2 | |
| volume | 10300 cm3 |
| weight | 4,752 kg |
| length | 103 cm |
| width | 10 cm |
| qmax | 20 |
| qmin | 20 |
| um | CT |
| gtin | 23303430148139 |
| Package 3 | |
| volume | 432000 cm3 |
| weight | 30,54 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 80 |
| qmin | 80 |
| um | PF |
