Descriere

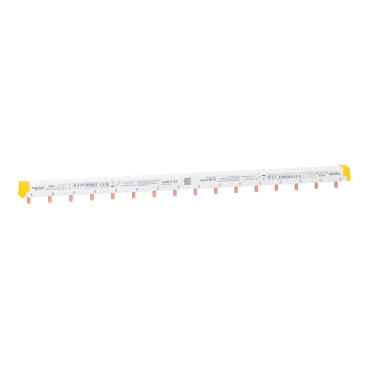

Bara Colectoare Tip Pieptene, 3L+N, pas 27mm, 24 module, 125 A
Documente
Specificatii
| Colour | |
| Colour | White |
| Measurements | |
| Length | 432 mm |
| Cross section | 16 mm² |
| Width in number of modular spacings | 24 |
| Module width | 27 mm |
| Options | |
| Insulated | Yes |
| Electrical | |
| Number of phases | 3 |
| Rated surge voltage | - |
| Rated permanent current Iu | 125 A |
| Conditioned rated short-circuit current Iq | - |
| Number of poles | 4 |
| Max. rated operation voltage Ue | 500 V |
| Rated short-time withstand current lcw | - |
| Connection | |
| Type of electric connection | Pin |
| Application | |
| Suitable for devices with auxiliary switch | No |
| Suitable for devices with N-conductor | Yes |
| Suitable for number of devices | 4 |
| Package 1 | |
| volume | 283,8 cm3 |
| weight | 273 g |
| length | 43 cm |
| width | 3 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3303430148142 |
| Package 2 | |
| volume | 13596 cm3 |
| weight | 6,04 kg |
| length | 103 cm |
| width | 11 cm |
| qmax | 20 |
| qmin | 20 |
| um | BX |
| gtin | 23303430148146 |
| Package 3 | |
| volume | 432000 cm3 |
| weight | 36,16 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 80 |
| qmin | 80 |
| um | PF |
