Descriere

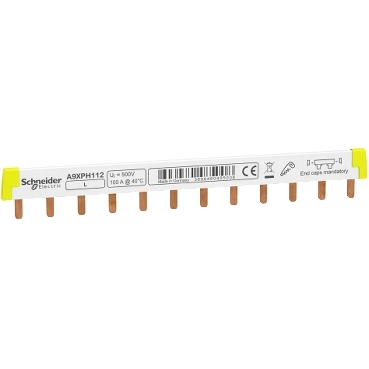

Acti9, Bare Colectoare Tip Pieptene, 1L, Inclinare 18mm, 12 Module, 100A
Documente
Specificatii
| Colour | |
| Colour | White |
| Measurements | |
| Length | 220 mm |
| Cross section | 16 mm² |
| Width in number of modular spacings | 12 |
| Module width | 18 mm |
| Options | |
| Insulated | Yes |
| Connection | |
| Type of electric connection | Pin |
| Electrical | |
| Number of phases | 1 |
| Rated surge voltage | - |
| Rated permanent current Iu | 100 A |
| Conditioned rated short-circuit current Iq | - |
| Number of poles | 1 |
| Max. rated operation voltage Ue | 415 V |
| Rated short-time withstand current lcw | - |
| Application | |
| Suitable for devices with auxiliary switch | Yes |
| Suitable for devices with N-conductor | No |
| Suitable for number of devices | 12 |
| Package 1 | |
| volume | 647,28 cm3 |
| weight | 49 g |
| length | 12,4 cm |
| width | 8,7 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480485008 |
| Package 2 | |
| volume | 1294,56 cm3 |
| weight | 554 g |
| length | 24,8 cm |
| width | 8,7 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606480485005 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 9,38 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 160 |
| qmin | 160 |
| um | CT |
| gtin | 43606480485006 |
