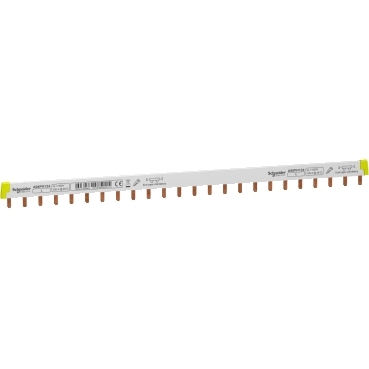

Acti9, Bare Colectoare Tip Pieptene, 1L, Inclinare 18mm, 24 Module, 100A
Documente
Specificatii
| Colour | |
| Colour | White |
| Measurements | |
| Length | 430 mm |
| Cross section | 16 mm² |
| Width in number of modular spacings | 24 |
| Module width | 18 mm |
| Options | |
| Insulated | Yes |
| Electrical | |
| Number of phases | 1 |
| Rated surge voltage | - |
| Conditioned rated short-circuit current Iq | - |
| Rated permanent current Iu | 100 A |
| Number of poles | 1 |
| Max. rated operation voltage Ue | 415 V |
| Rated short-time withstand current lcw | - |
| Connection | |
| Type of electric connection | Pin |
| Application | |
| Suitable for devices with auxiliary switch | Yes |
| Suitable for devices with N-conductor | No |
| Suitable for number of devices | 24 |
| Package 1 | |
| volume | 64,05 cm3 |
| weight | 101 g |
| length | 42,7 cm |
| width | 3 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480485015 |
| Package 2 | |
| volume | 2437,74 cm3 |
| weight | 1,121 kg |
| length | 46,7 cm |
| width | 8,7 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606480485012 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 11,795 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 100 |
| qmin | 100 |
| um | CT |
| gtin | 53606480485010 |
| Package 4 | |
| weight | 58,984 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 400 |
| qmin | 400 |
| um | PF |
