Descriere

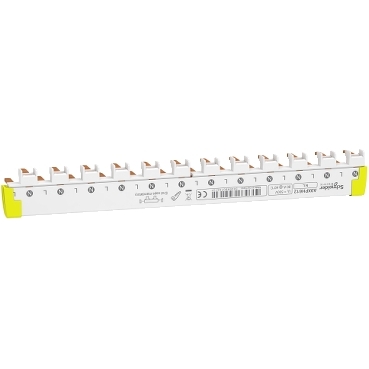

Acti9, bara colec comb infer- 1L+N, 9 mm rotatie, 12 module, 80A
Documente
Specificatii
| Measurements | |
| Length | 220 mm |
| Cross section | 16 mm² |
| Width in number of modular spacings | 12 |
| Module width | 9 mm |
| Colour | |
| Colour | White |
| Options | |
| Insulated | Yes |
| Electrical | |
| Number of phases | 1 |
| Rated surge voltage | - |
| Conditioned rated short-circuit current Iq | - |
| Rated permanent current Iu | 80 A |
| Number of poles | 2 |
| Max. rated operation voltage Ue | 400 V |
| Rated short-time withstand current lcw | - |
| Connection | |
| Type of electric connection | Pin |
| Application | |
| Suitable for devices with auxiliary switch | No |
| Suitable for devices with N-conductor | Yes |
| Suitable for number of devices | 12 |
| Package 1 | |
| volume | 135,52 cm3 |
| weight | 100 g |
| length | 22 cm |
| width | 2,8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480794131 |
| Package 2 | |
| volume | 1279,68 cm3 |
| weight | 568 g |
| length | 24,8 cm |
| width | 8,6 cm |
| qmax | 5 |
| qmin | 5 |
| um | BX |
| gtin | 13606480794138 |
| Package 3 | |
| volume | 36000 cm3 |
| weight | 9,85 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 80 |
| qmin | 80 |
| um | CT |
| gtin | 43606480794139 |
