Descriere

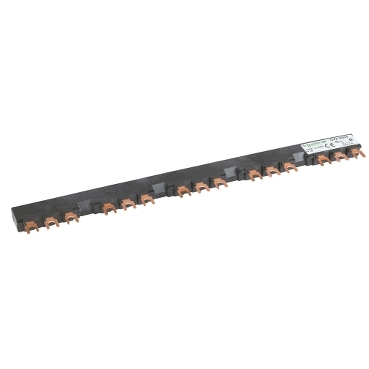

Linergy FT, Comb busbar, 63A, 5 tap-offs, 54mm pitch
Documente
Specificatii
| Measurements | |
| Length | 270 mm |
| Cross section | - |
| Width in number of modular spacings | 54 |
| Module width | 54 mm |
| Colour | |
| Colour | Black |
| Options | |
| Insulated | Yes |
| Connection | |
| Type of electric connection | Fork |
| Electrical | |
| Number of phases | 3 |
| Rated surge voltage | 6 kV |
| Rated permanent current Iu | 63 A |
| Conditioned rated short-circuit current Iq | 11 kA |
| Number of poles | 3 |
| Max. rated operation voltage Ue | 690 V |
| Rated short-time withstand current lcw | - |
| Application | |
| Suitable for devices with auxiliary switch | No |
| Suitable for devices with N-conductor | No |
| Suitable for number of devices | 5 |
| Package 1 | |
| volume | 93,6 cm3 |
| weight | 112 g |
| length | 26 cm |
| width | 3,6 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3389110555851 |
| Package 2 | |
| volume | 9000 cm3 |
| weight | 4,7 kg |
| length | 40 cm |
| width | 15 cm |
| qmax | 40 |
| qmin | 40 |
| um | CT |
| gtin | 43389110555859 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 159,06 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 1280 |
| qmin | 1280 |
| um | PF |
| gtin | 73389110555850 |
