Descriere

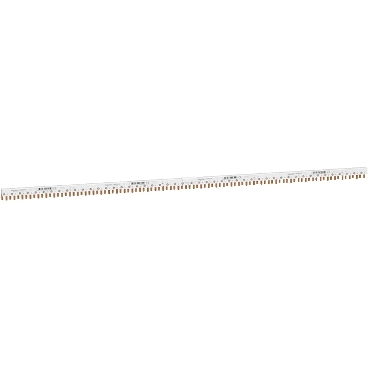

Acti9 iC40 Pieptene 1P+N 48 module 18mm
Documente
Specificatii
| Colour | |
| Colour | White |
| Measurements | |
| Length | 862 mm |
| Cross section | - |
| Width in number of modular spacings | 48 |
| Module width | 9 mm |
| Options | |
| Insulated | Yes |
| Electrical | |
| Number of phases | 1 |
| Rated surge voltage | - |
| Rated permanent current Iu | 80 A |
| Conditioned rated short-circuit current Iq | - |
| Number of poles | 2 |
| Max. rated operation voltage Ue | 230 V |
| Rated short-time withstand current lcw | - |
| Connection | |
| Type of electric connection | Pin |
| Application | |
| Suitable for devices with auxiliary switch | No |
| Suitable for devices with N-conductor | Yes |
| Suitable for number of devices | 48 |
| Package 1 | |
| volume | 362,88 cm3 |
| weight | 328 g |
| length | 86,4 cm |
| width | 2,8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489443559 |
| Package 2 | |
| volume | 3480,75 cm3 |
| weight | 2,085 kg |
| length | 91 cm |
| width | 8,5 cm |
| qmax | 6 |
| qmin | 6 |
| um | BX |
| gtin | 13606489443556 |
| Package 3 | |
| volume | 432000 cm3 |
| weight | 52,7 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 120 |
| qmin | 120 |
| um | PF |
