Descriere

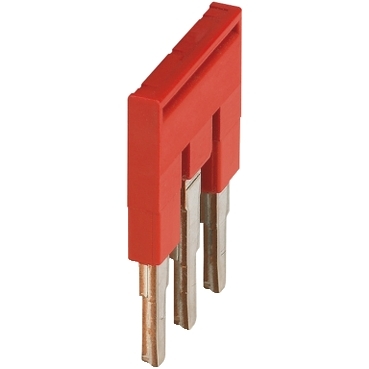

Punte de legatura 3 cai pentru terminale 4mm², rosie
Documente
Specificatii
| Colour | |
| Colour | Red |
| Protection | |
| Explosion-tested version 'Ex e' | No |
| Options | |
| Insulated | Yes |
| Electrical | |
| Rated voltage | - |
| Rated current In | 40 A |
| Model/type | |
| With contact protection | Yes |
| Number of bridged clamps | 3 |
| Model | Push-in type jumper bar |
| Measurements | |
| Modular spacing | 6 mm |
| Mounting/installation | |
| Mounting method | Pluggable |
| Package 1 | |
| volume | 48,06 cm3 |
| weight | 2 g |
| length | 2,67 cm |
| width | 12 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480534140 |
| Package 2 | |
| volume | 288 cm3 |
| weight | 148 g |
| length | 16 cm |
| width | 12 cm |
| qmax | 50 |
| qmin | 50 |
| um | BX |
| gtin | 23606480534144 |
| Package 3 | |
| volume | 9000 cm3 |
| weight | 916 g |
| length | 40 cm |
| width | 15 cm |
| qmax | 250 |
| qmin | 250 |
| um | CT |
| gtin | 43606480534148 |
