Descriere

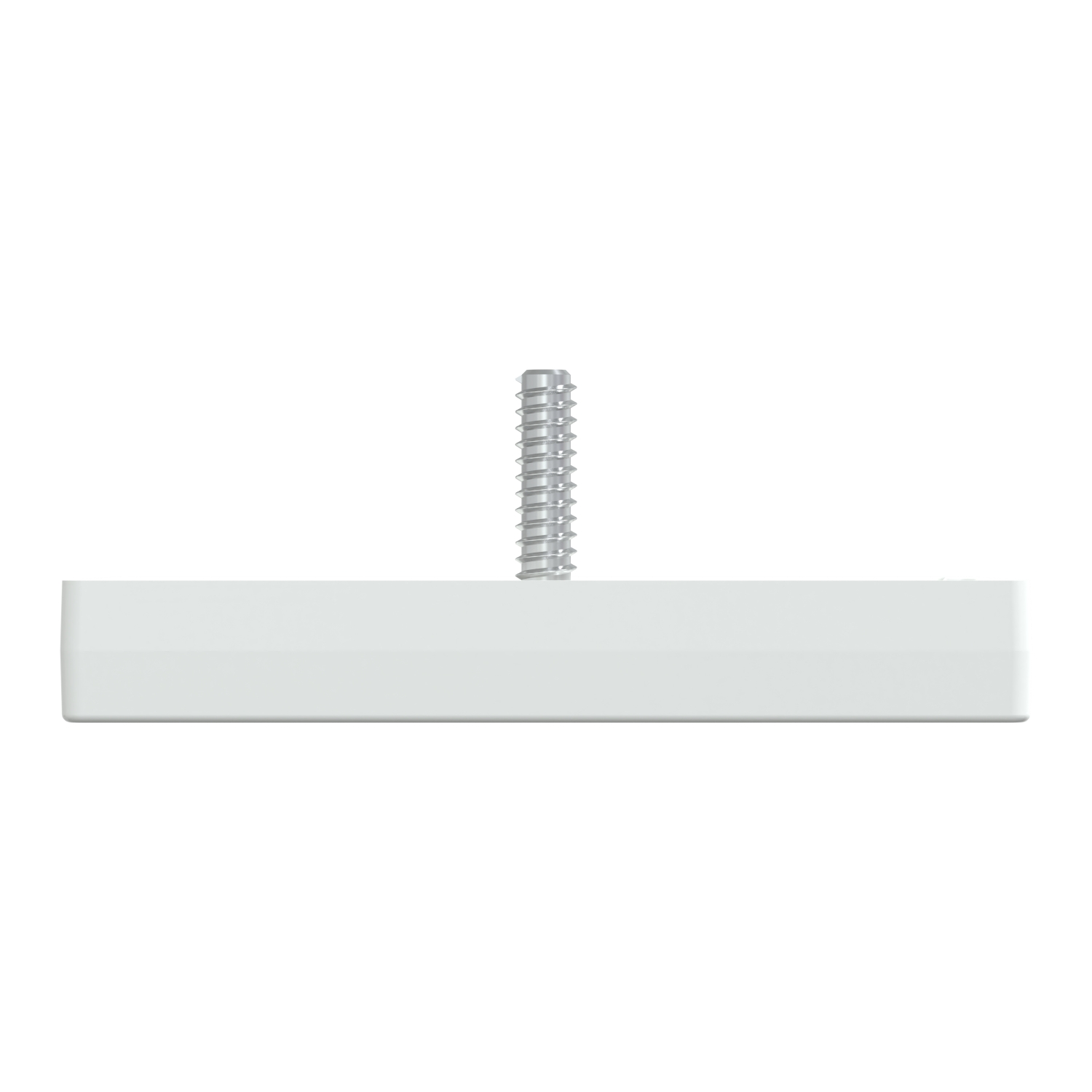

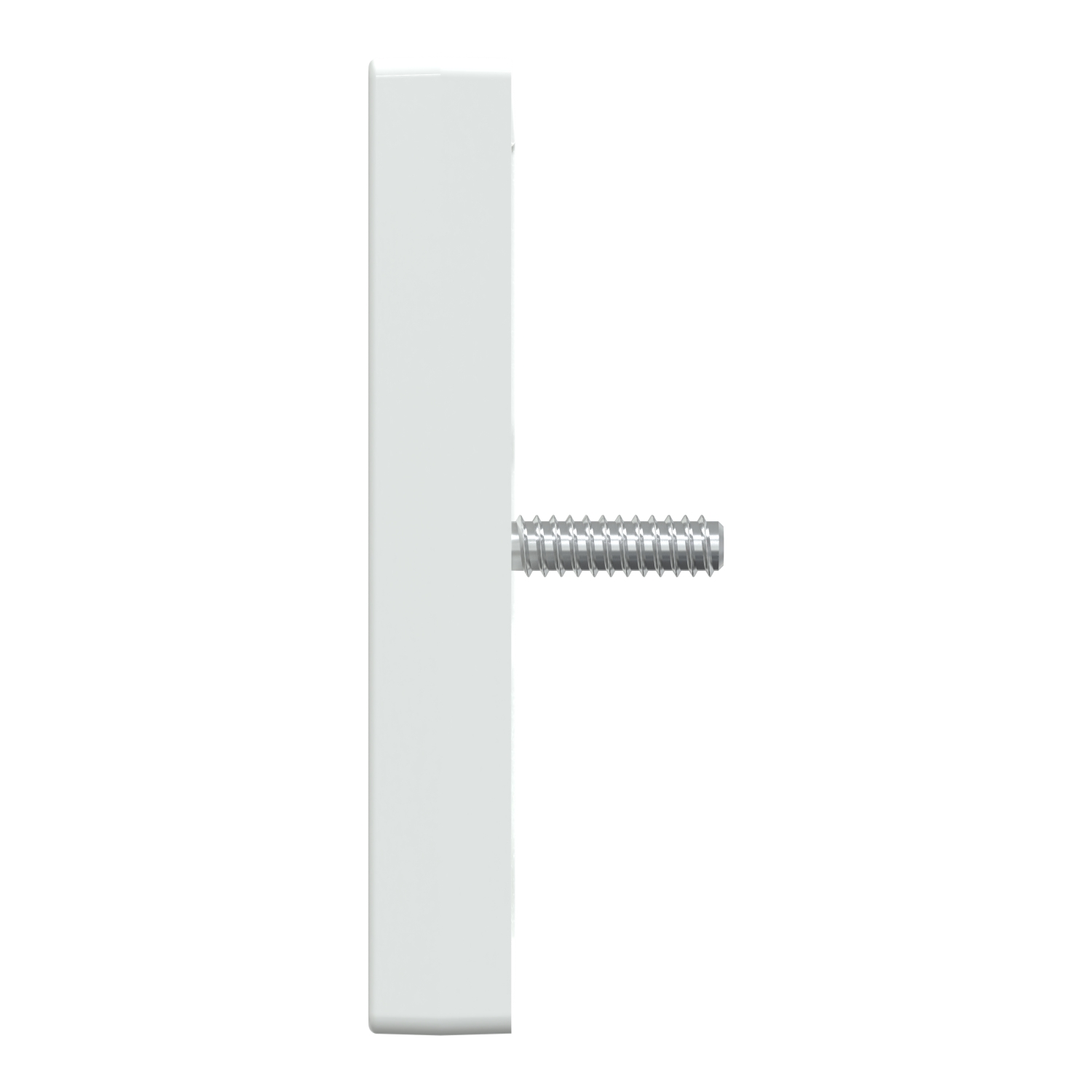

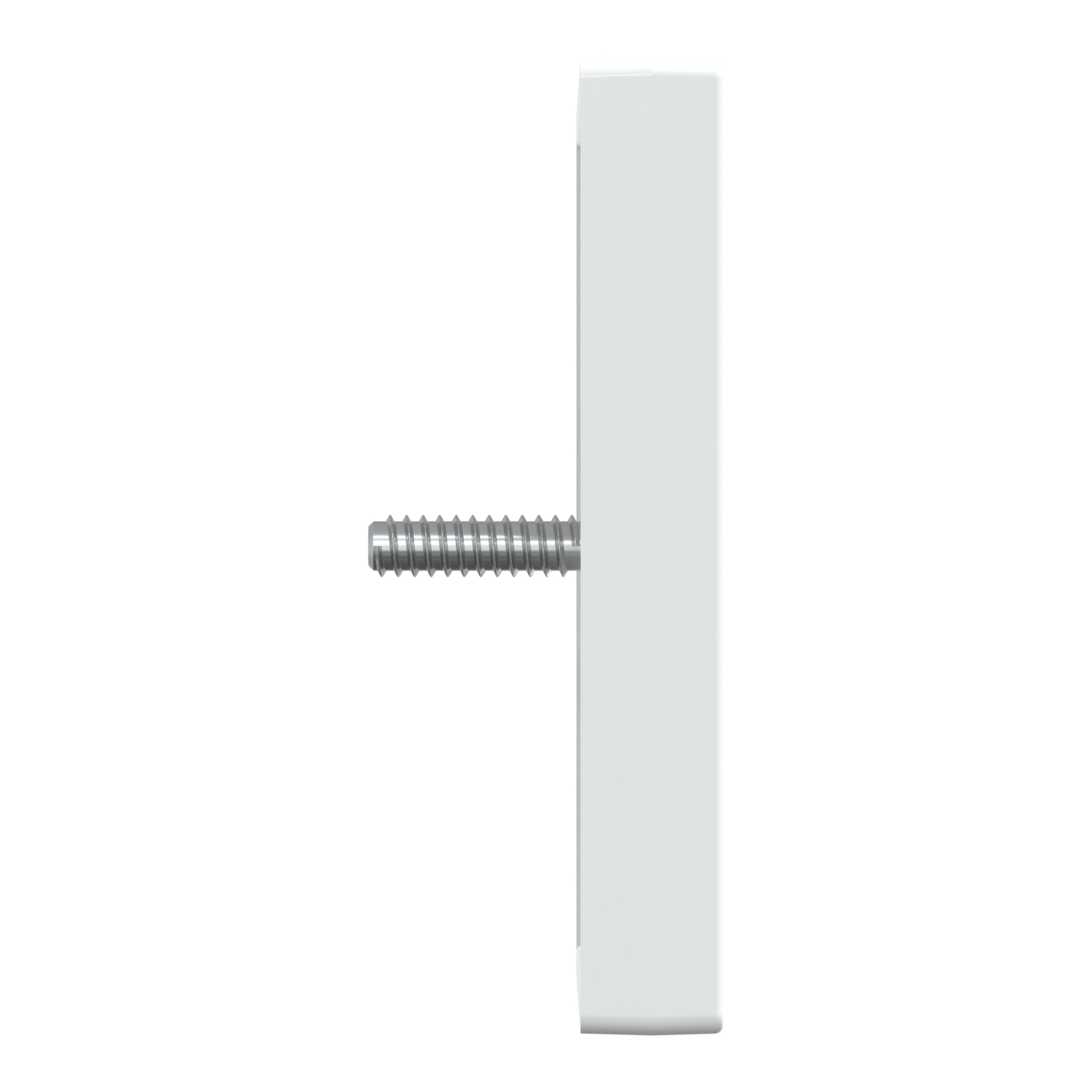

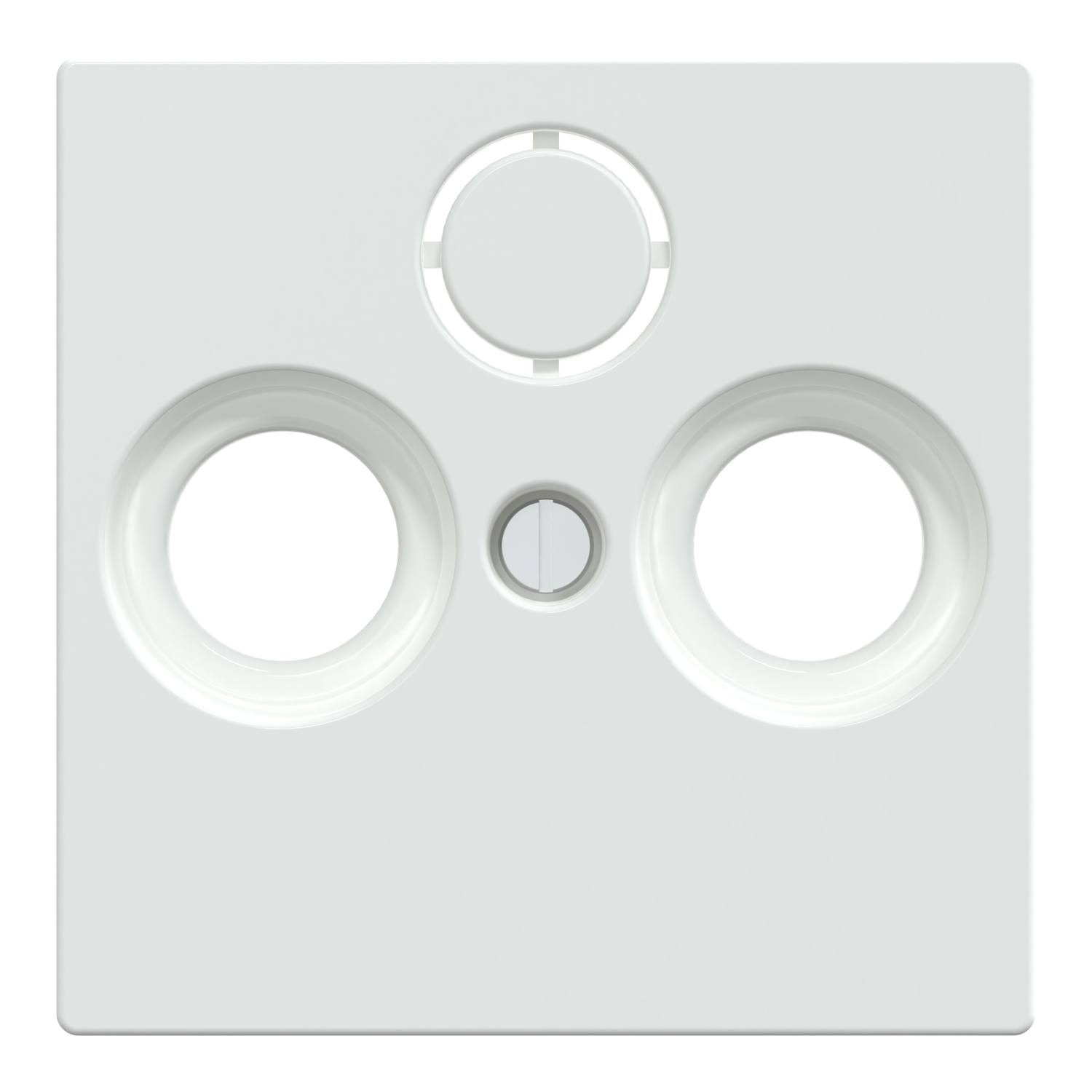

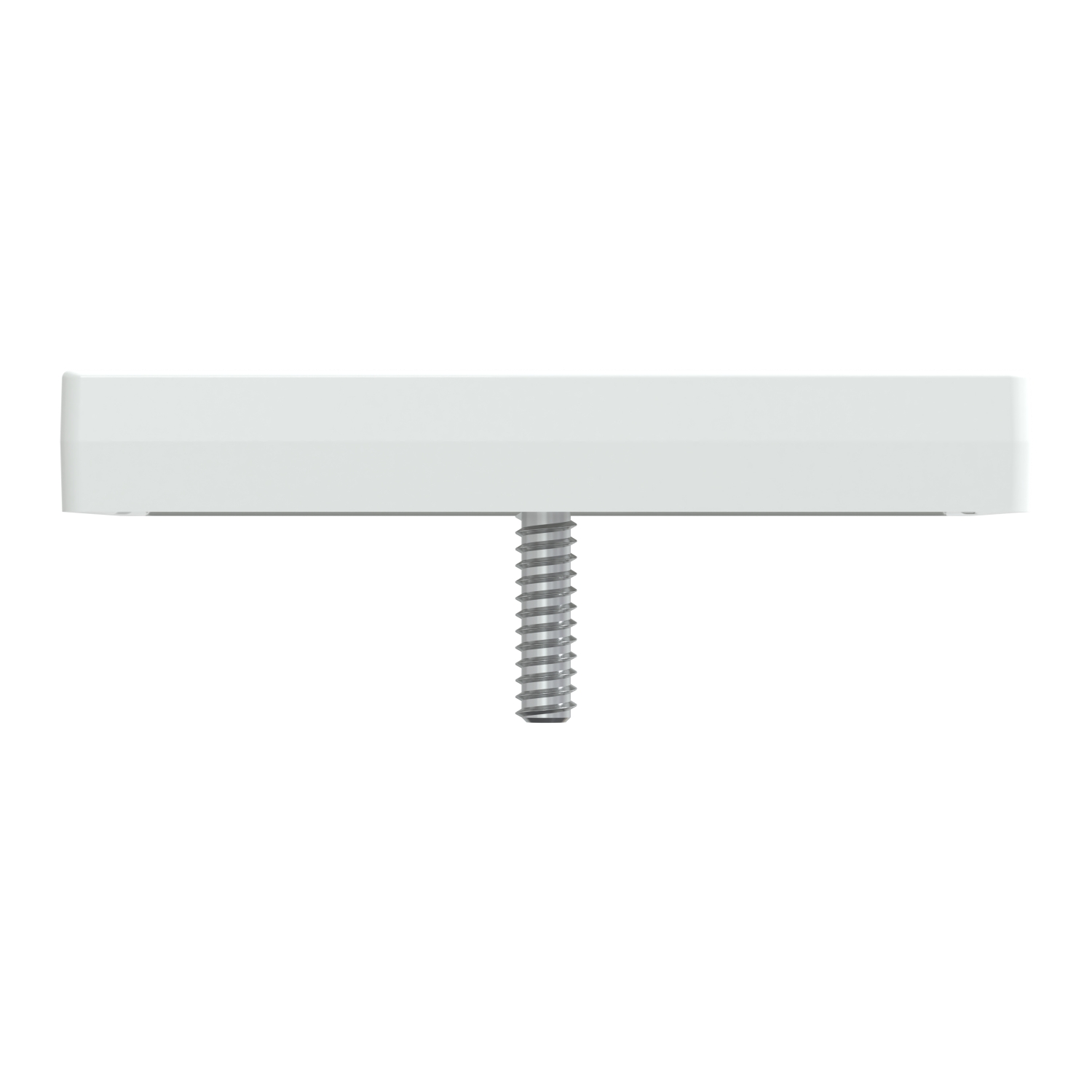

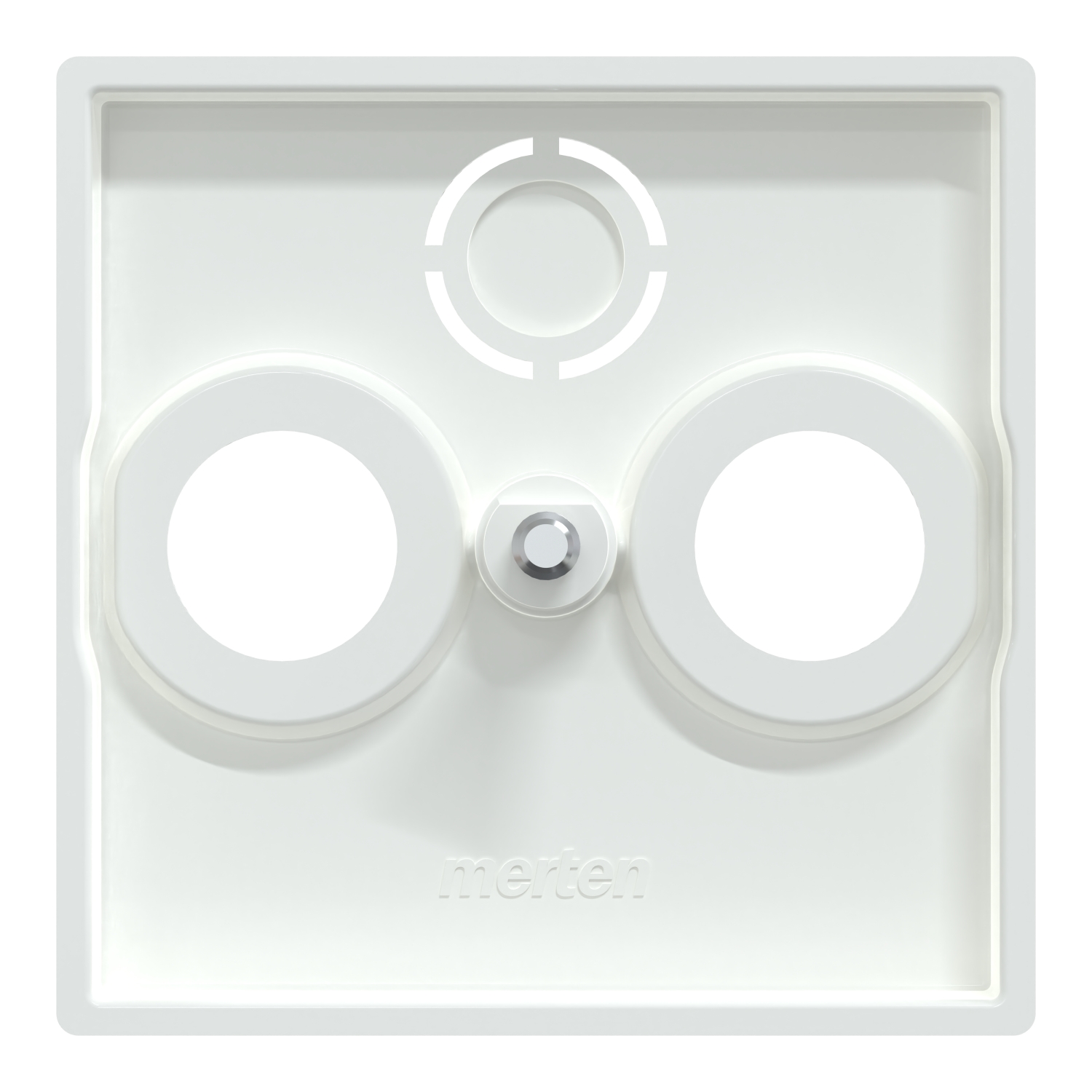

Merten System M, Placa priza antena 2/3gauri, alb antibacterian
Documente
Fisa tehnica
Declaratie de conformitate
Alte surse
Specificatii
| Material | |
| Surface protection | Other |
| Surface finishing | Glossy |
| Material | Plastic |
| Halogen free | Yes |
| Material quality | Thermoplastic |
| Model/type | |
| With hinged lid | No |
| With strain relief | No |
| With lighting | - |
| Number of modules (module system) | 0 |
| With dust cover | No |
| With imprint | No |
| Assembly arrangement | Central cover plate |
| With buses/couplings | No |
| Options | |
| Luster terminal | No |
| Support ring | No |
| Imprintable label | Without indication field |
| Shielded buses | No |
| Shielded housing | No |
| Anti-bacterial treatment | - |
| Protection | |
| Suitable for degree of protection (IP) | IP20 |
| Colour | |
| RAL-number (similar) | 9016 |
| Transparent | No |
| Colour | White |
| Application | |
| Utilization | Other |
| Measurements | |
| Device depth | 10 mm |
| Min. depth of built-in installation box | - |
| Device width | 57 mm |
| Device height | 56 mm |
| Mounting/installation | |
| Type of fastening | Mounting with screw |
| Mounting method | Flush-mounted |
| Other | |
| Outlet direction | Straight |
| Impact strength | - |
| Connection | |
| Suitable for number of connectors | 3 |
| Package 1 | |
| volume | 24,192 cm3 |
| weight | 12 g |
| length | 5,6 cm |
| width | 5,4 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 4042811043032 |
| Package 2 | |
| volume | 329,232 cm3 |
| weight | 82 g |
| length | 7,6 cm |
| width | 7,6 cm |
| qmax | 5 |
| qmin | 5 |
| um | BX |
| gtin | 14042811043039 |
| Package 3 | |
| volume | 24185,46 cm3 |
| weight | 4,346 kg |
| length | 40,4 cm |
| width | 30,7 cm |
| qmax | 250 |
| qmin | 250 |
| um | CT |
| gtin | 24042811043036 |
