Descriere

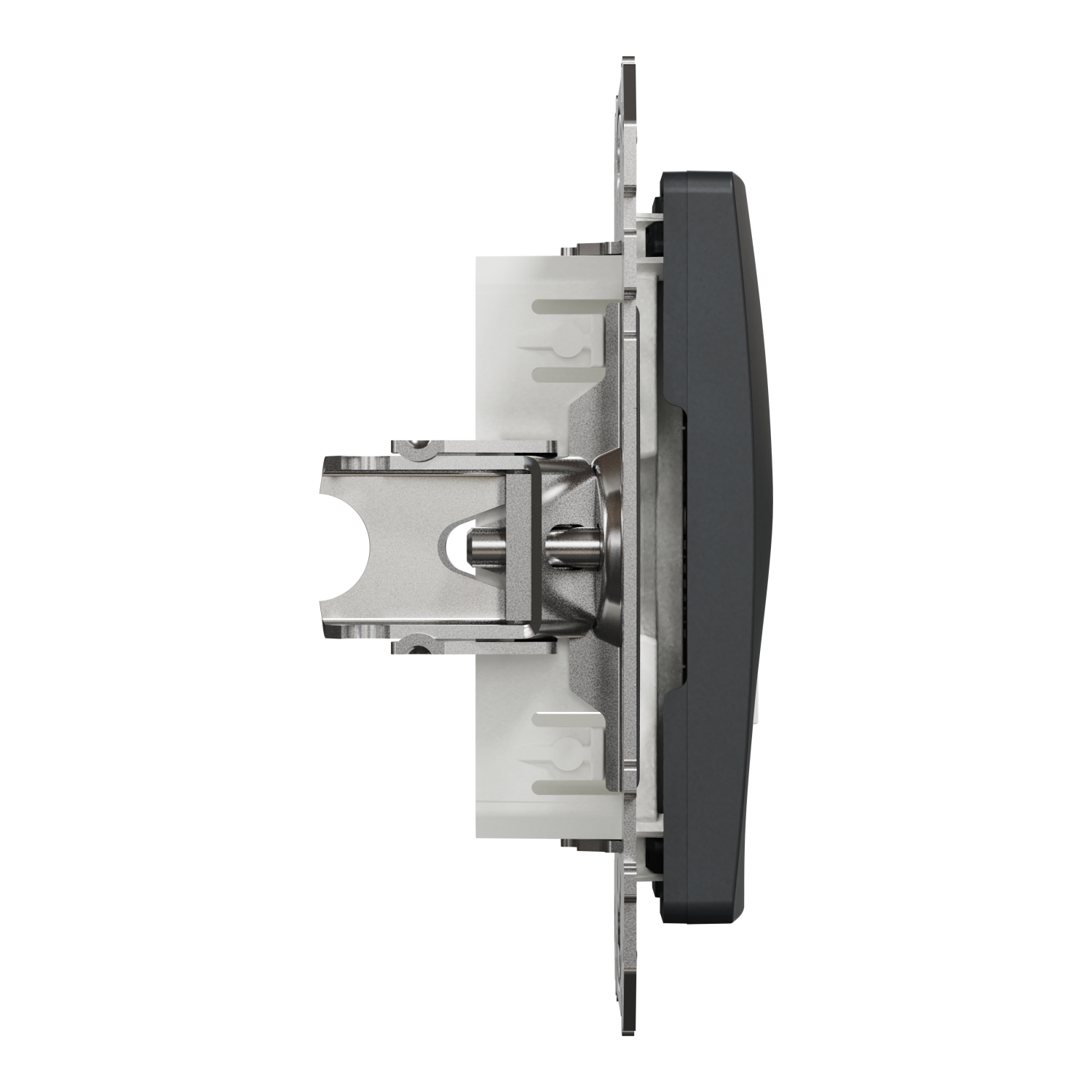

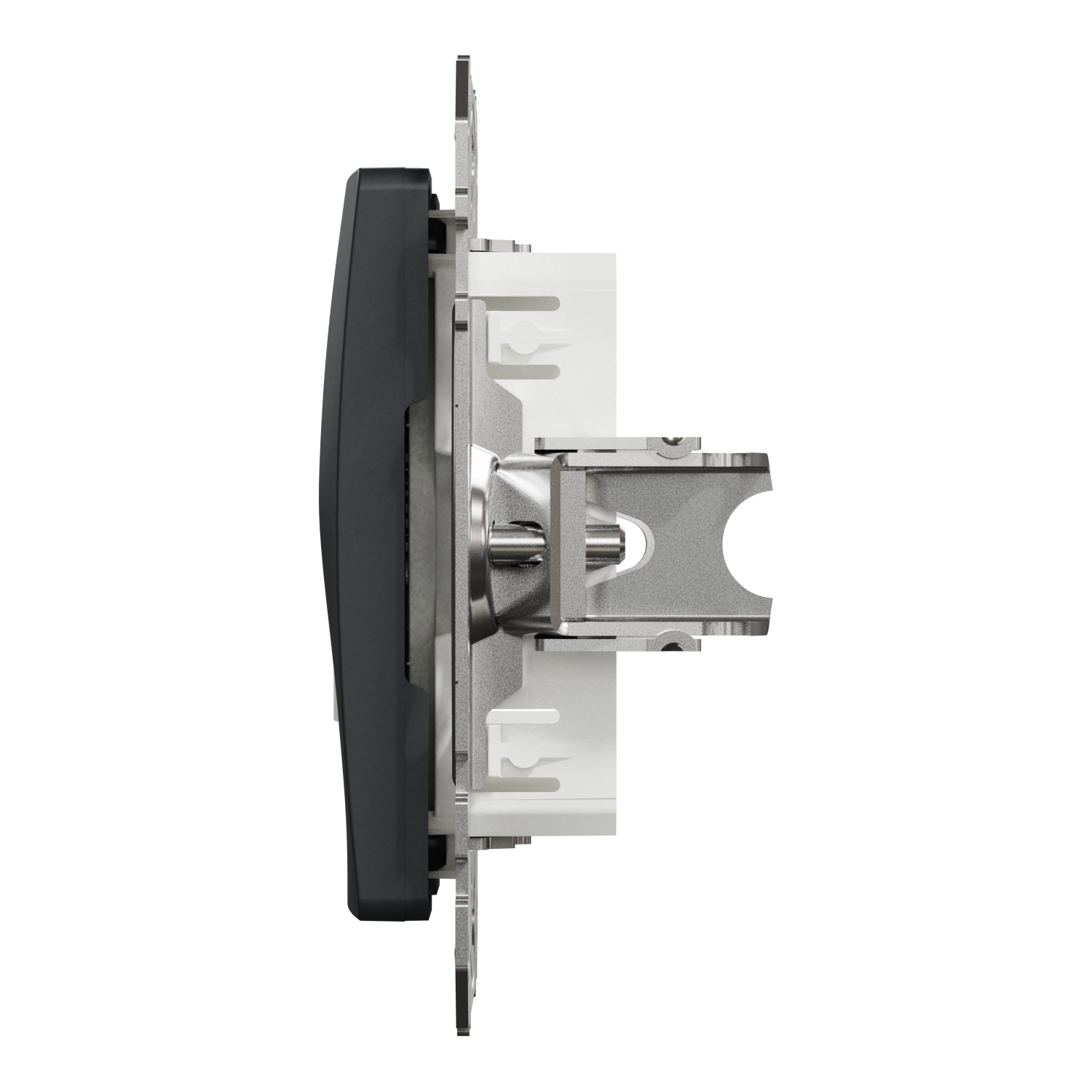

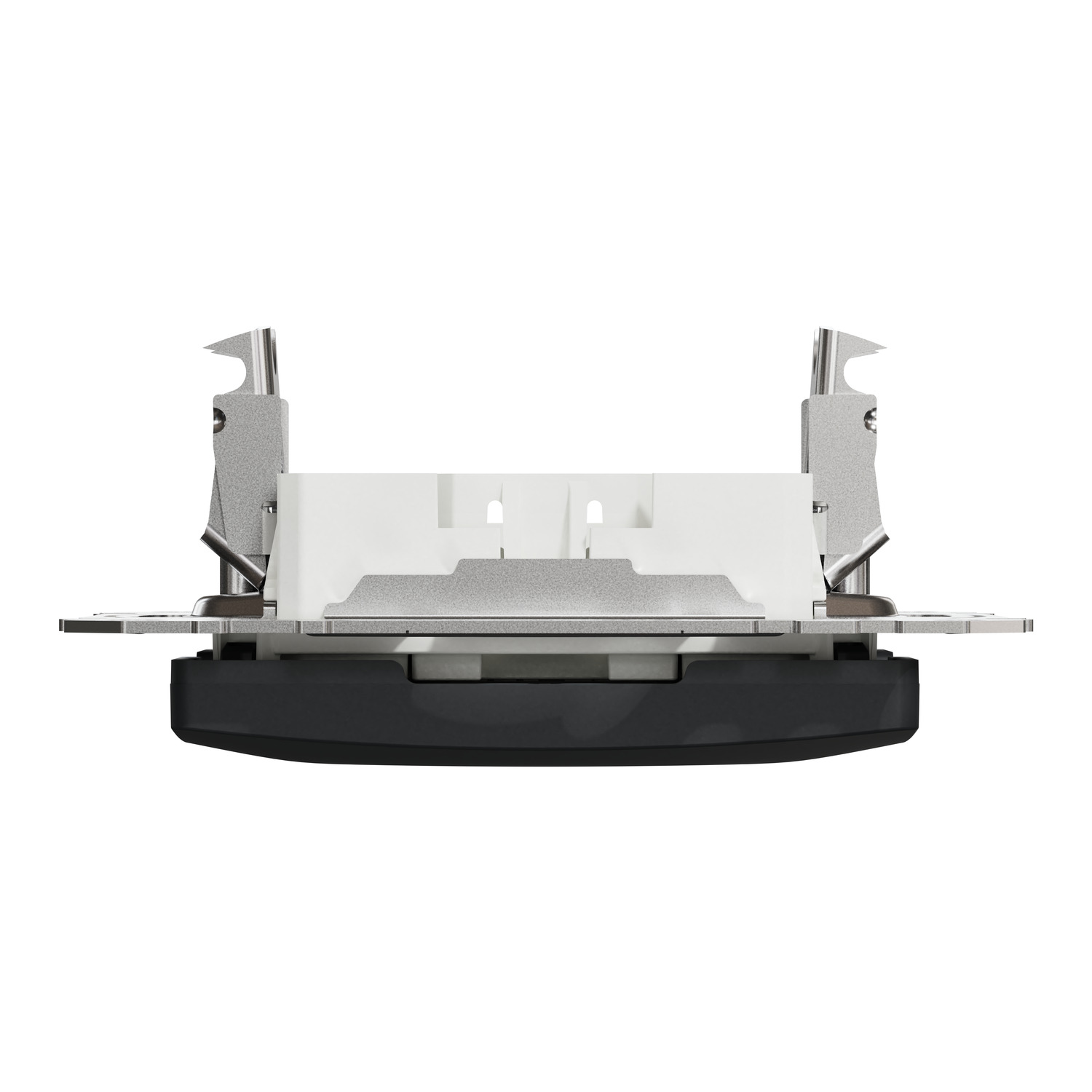

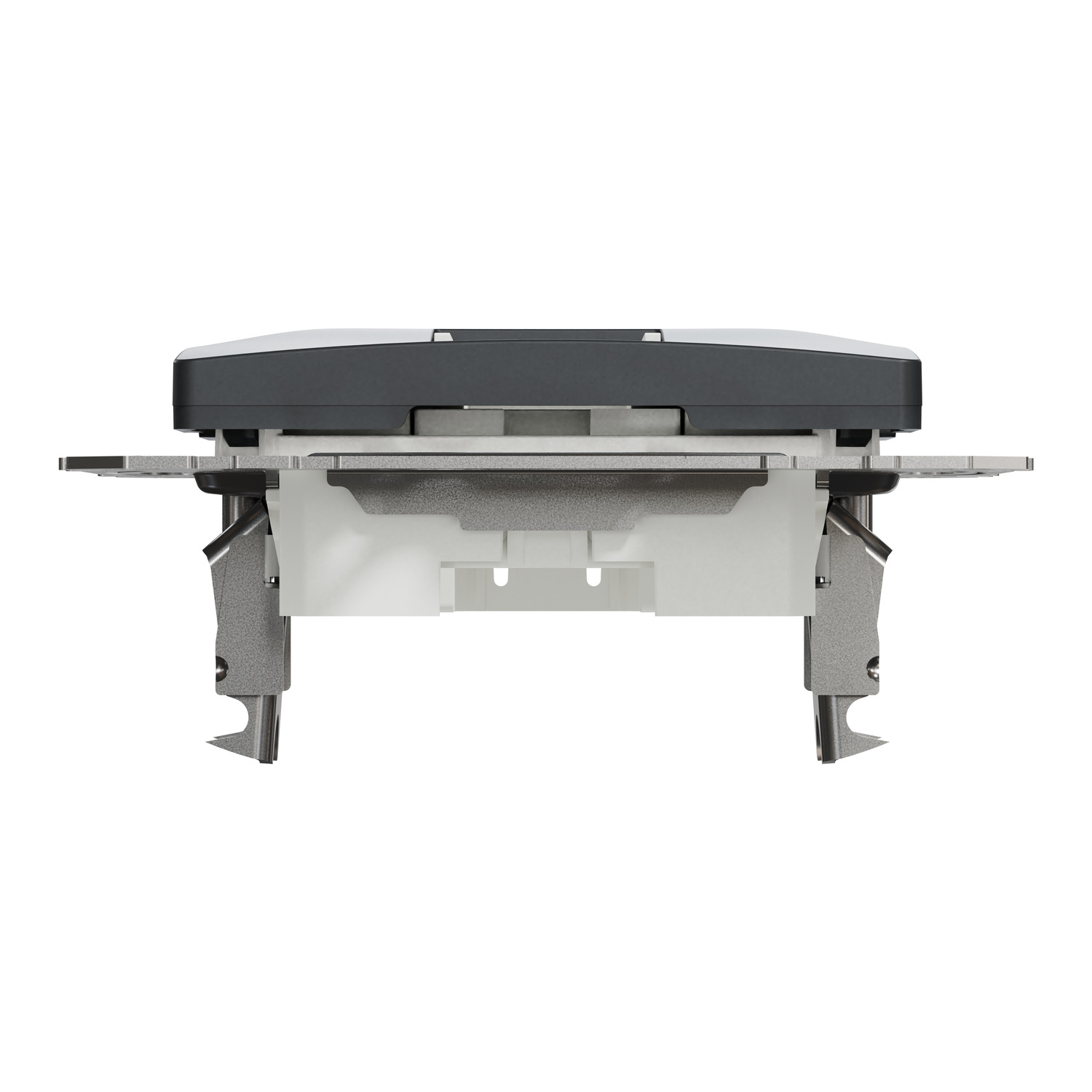

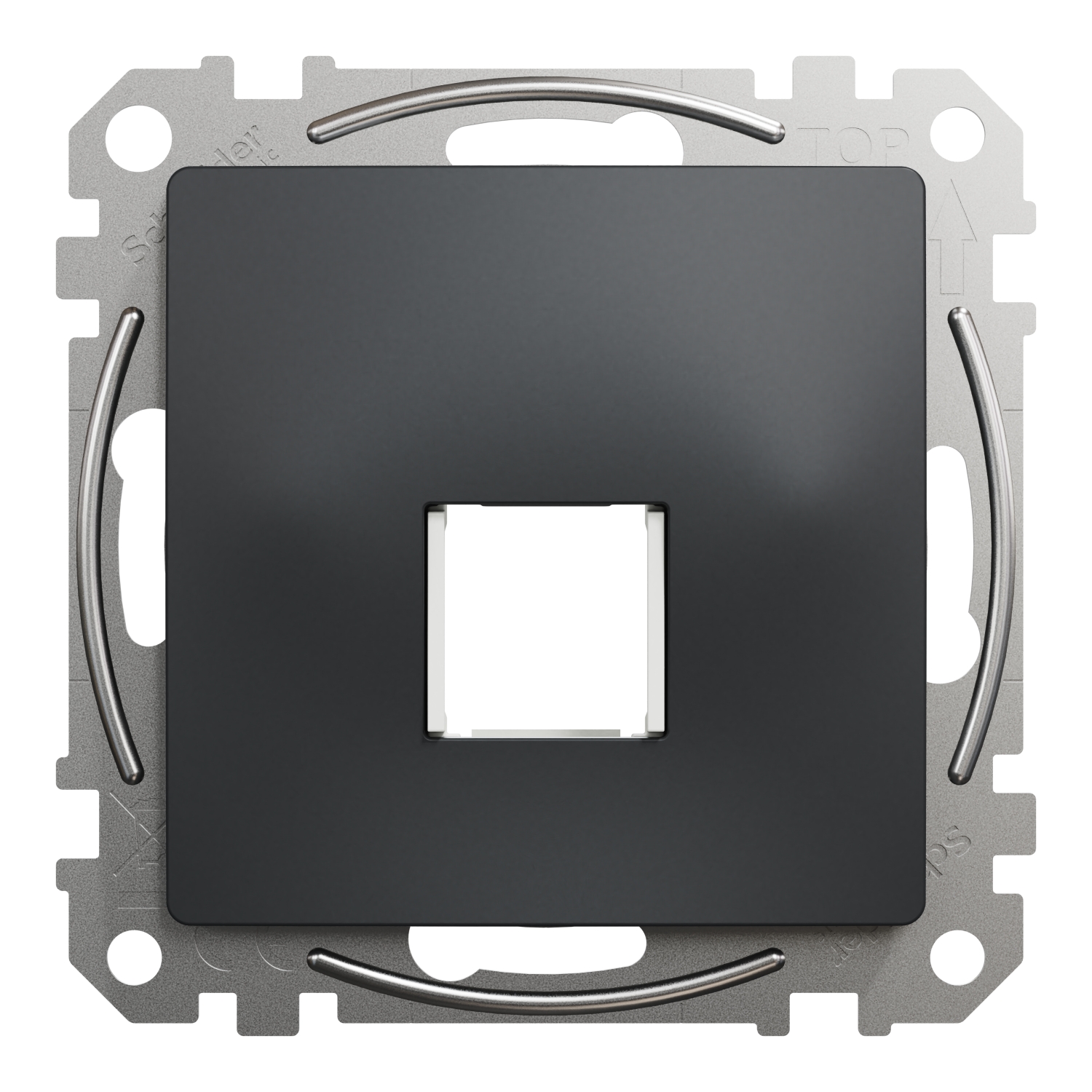

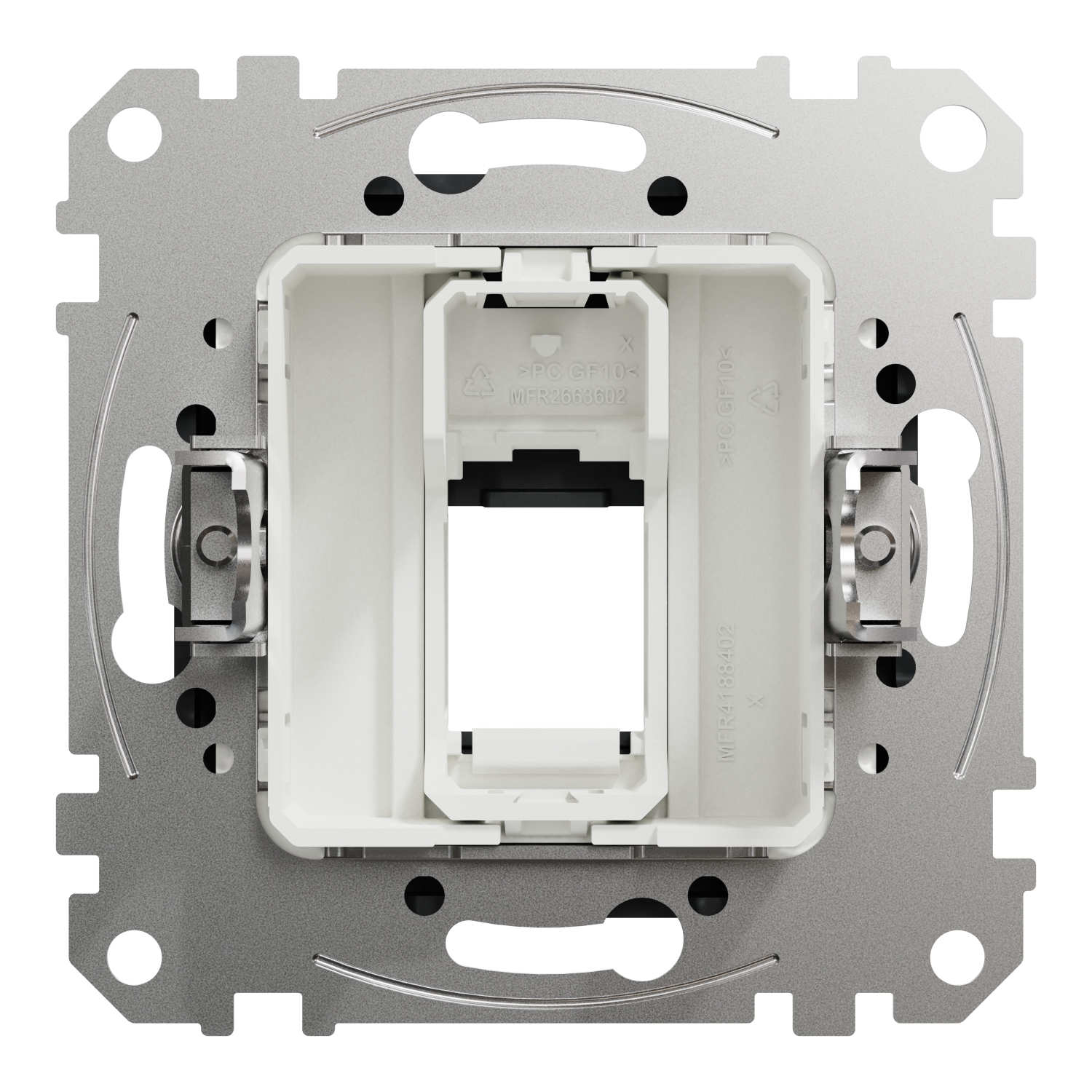

Sedna Design, Placa pentru RJ45, HDMI, VGA, antracit
Documente
Fisa tehnica
Declaratie de conformitate
Alte surse
Specificatii
| Material | |
| Surface protection | Other |
| Surface finishing | Matt |
| Material | Plastic |
| Halogen free | Yes |
| Material quality | Thermoplastic |
| Model/type | |
| With hinged lid | No |
| With strain relief | No |
| With lighting | No |
| Number of modules (module system) | - |
| With dust cover | No |
| With imprint | No |
| Assembly arrangement | Other |
| With buses/couplings | No |
| Options | |
| Luster terminal | No |
| Support ring | No |
| Imprintable label | Without indication field |
| Shielded buses | No |
| Shielded housing | No |
| Anti-bacterial treatment | No |
| Protection | |
| Suitable for degree of protection (IP) | IP20 |
| Application | |
| Utilization | For data connection housing |
| Colour | |
| RAL-number (similar) | 7021 |
| Transparent | No |
| Colour | Anthracite |
| Measurements | |
| Device depth | 35 mm |
| Min. depth of built-in installation box | - |
| Device width | 73 mm |
| Device height | 73 mm |
| Mounting/installation | |
| Type of fastening | Mounting with claw and screw |
| Mounting method | Flush-mounted |
| Other | |
| Outlet direction | Straight |
| Impact strength | IK02 |
| Connection | |
| Suitable for number of connectors | 1 |
| Package 1 | |
| volume | 256 cm3 |
| weight | 48 g |
| length | 8 cm |
| width | 8 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481480194 |
| Package 2 | |
| volume | 4833,125 cm3 |
| weight | 566 g |
| length | 27,5 cm |
| width | 18,5 cm |
| qmax | 10 |
| qmin | 10 |
| um | BX |
| gtin | 13606481480191 |
| Package 3 | |
| volume | 72000 cm3 |
| weight | 7,439 kg |
| length | 60 cm |
| width | 40 cm |
| qmax | 120 |
| qmin | 120 |
| um | CT |
| gtin | 23606481480198 |
| Package 4 | |
| weight | 41,756 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 480 |
| qmin | 480 |
| um | PF |
