Descriere

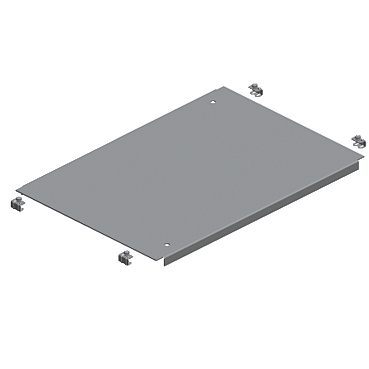

Placa trecere cabluri simpla PanelSeT SFN / SF, W = 600 mm, D =800 mm, fixare cu cleme.
Documente
Fisa tehnica
Declaratie de conformitate
Specificatii
| Material | |
| Surface protection | Galvanised |
| Material | Steel |
| Measurements | |
| Width | 600 mm |
| Height | 30 mm |
| Depth | 710 mm |
| Connection | |
| Thread type | None |
| Suitable for nominal thread metric/PG | - |
| Number of connector holes | 0 |
| Model/type | |
| Model | Other |
| Type | Straight |
| Protection | |
| Degree of protection (NEMA) | Other |
| Options | |
| Pre-stamping | No |
| Package 1 | |
| volume | 9585 cm3 |
| weight | 4,16 kg |
| length | 71 cm |
| width | 45 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606485126029 |
| Package 2 | |
| volume | 576000 cm3 |
| weight | 75 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 15 |
| qmin | 15 |
| um | PF |
