Descriere

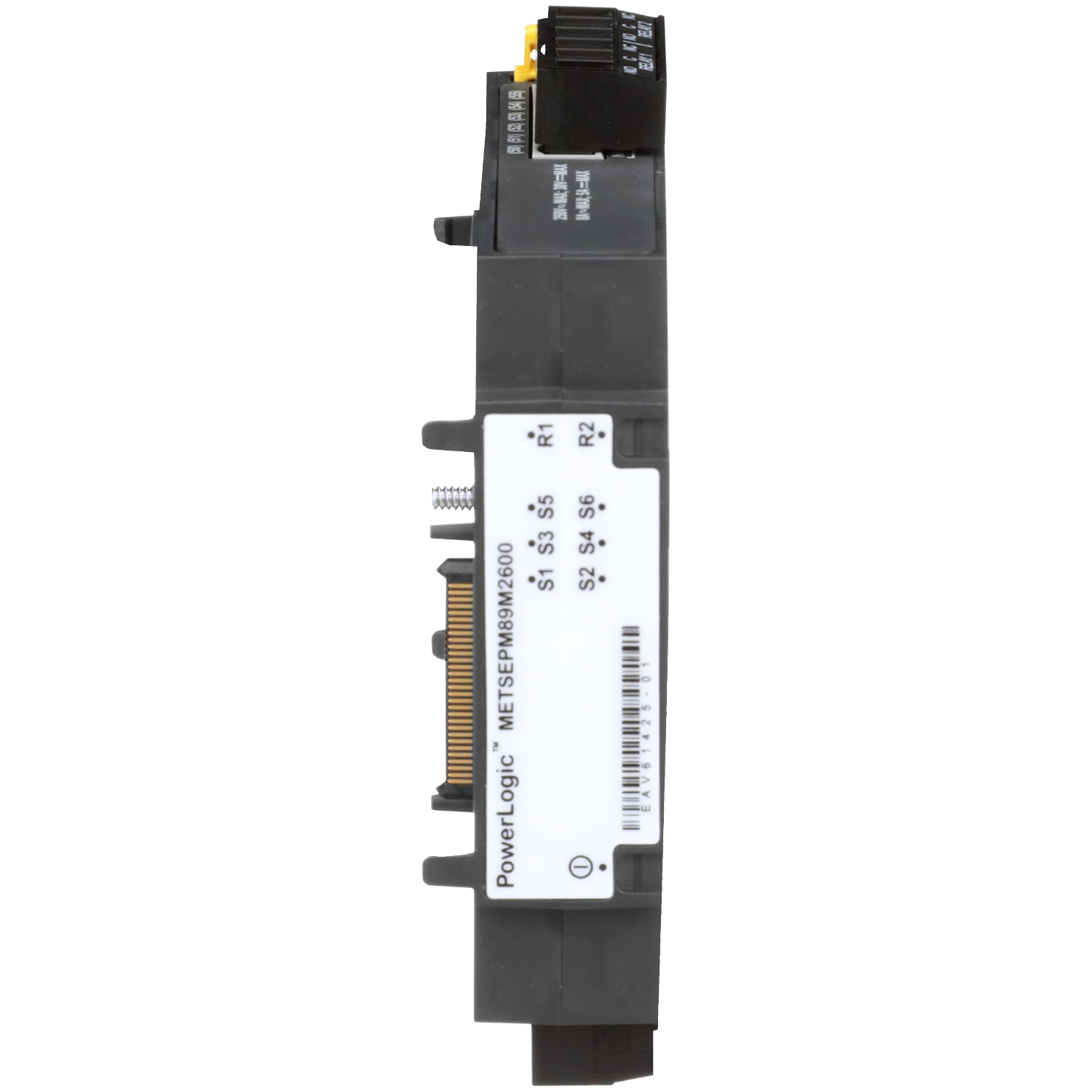

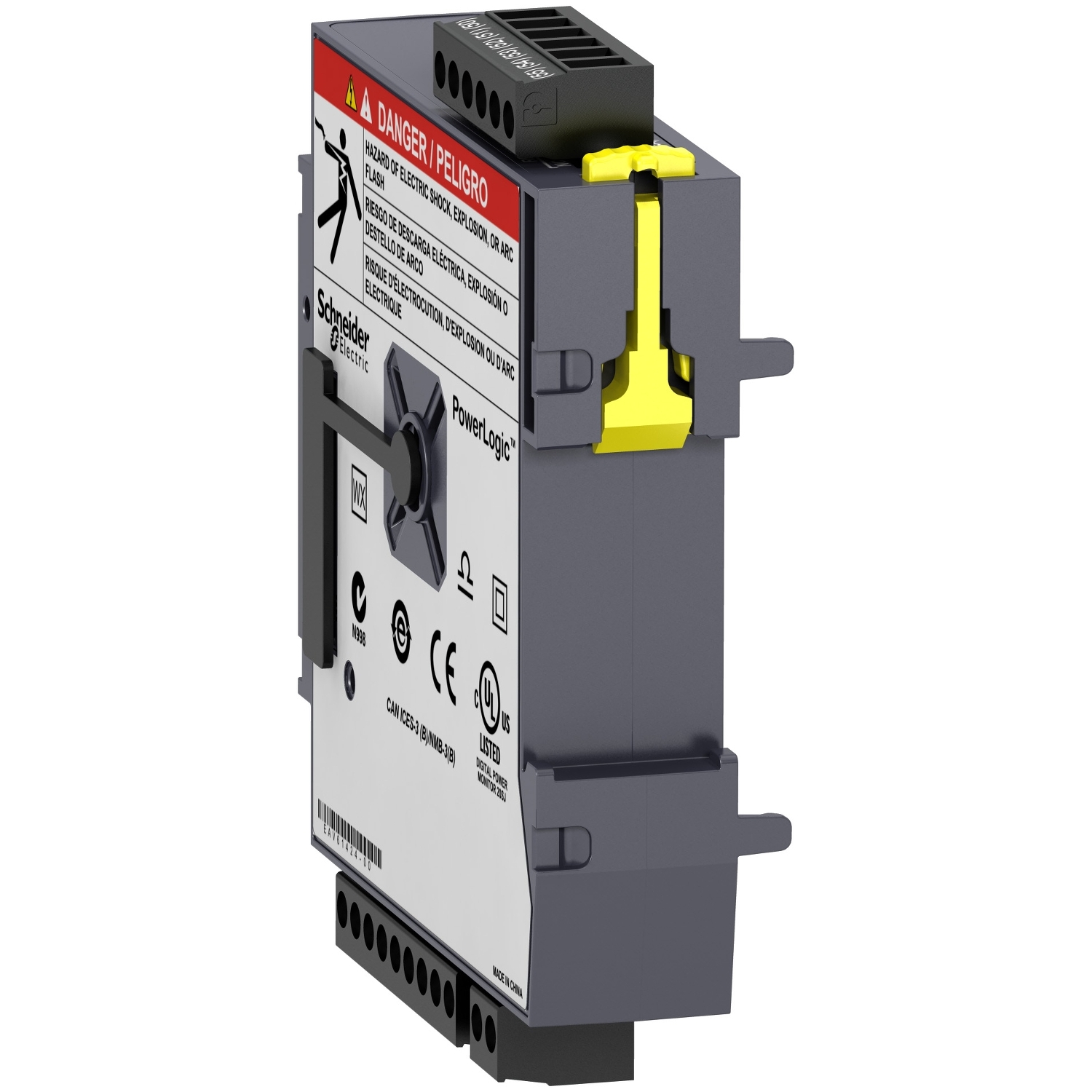

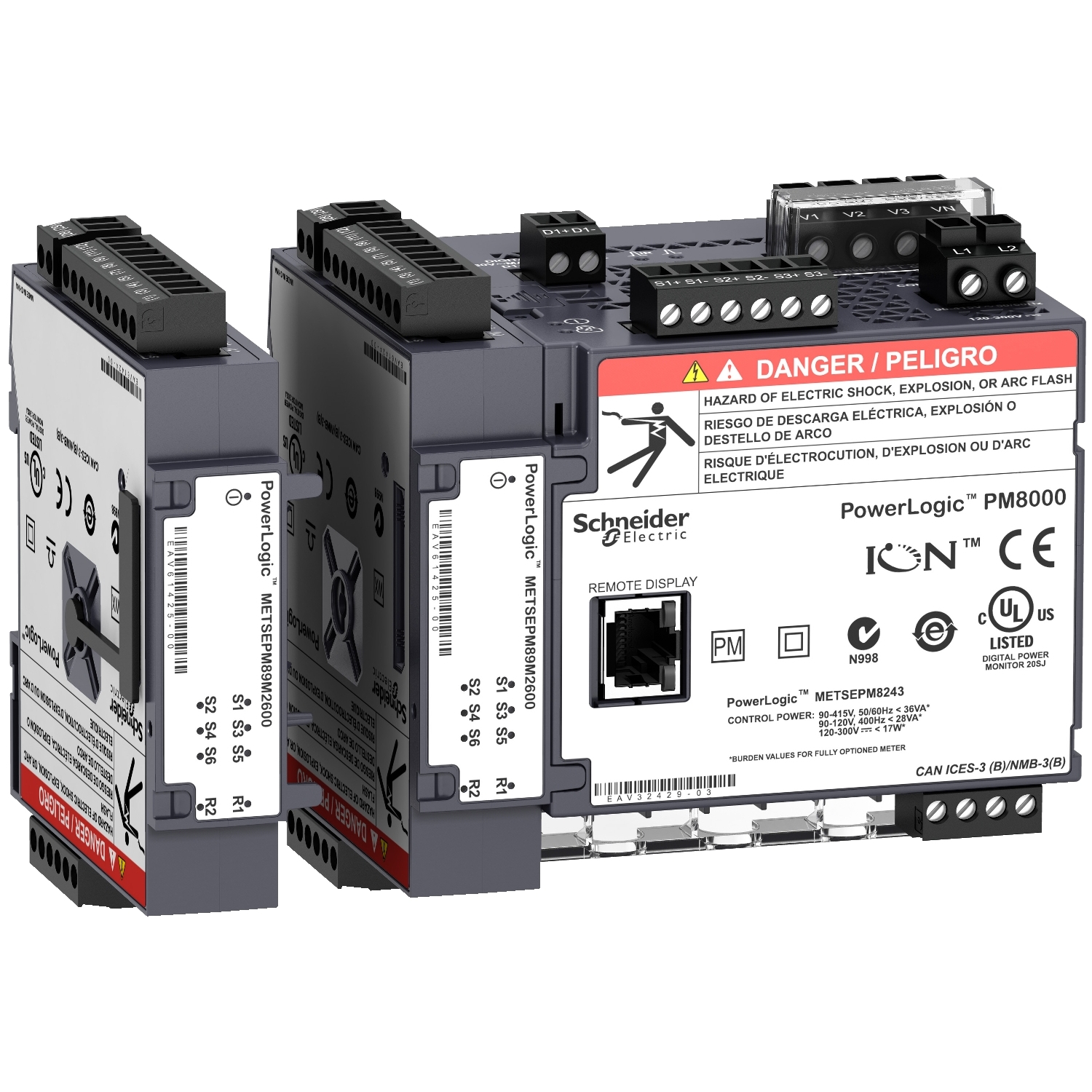

PowerLogic PM8000 - Intrare/Iesire Modul - Digital - 6 intr + 2 relays ies
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Input current at signal 1 | 24 mA |
| Output current | 8 A |
| Voltage type (supply voltage) | DC |
| Permitted voltage at output | 250 V |
| Supply voltage AC 50 Hz | 0 V |
| Permitted voltage at input | 30 V |
| Supply voltage AC 60 Hz | 0 V |
| Type of voltage (input voltage) | AC/DC |
| Type of output voltage | AC |
| Supply voltage DC | 16 V |
| Connection | |
| Type of electric connection | Screw connection |
| Short-circuit protection, outputs available | No |
| Number of digital outputs | 2 |
| Number of digital inputs | 6 |
| Approval/certification | |
| SIL according to IEC 61508 | None |
| Model/type | |
| Type of digital output | Relay |
| Options | |
| Digital inputs configurable | No |
| Digital outputs configurable | No |
| Redundancy | No |
| Performance | |
| Performance level according to EN ISO 13849-1 | - |
| Other | |
| Appendant operation agent (Ex ia) | No |
| Time delay at signal change | - |
| Appendant operation agent (Ex ib) | No |
| Measurements | |
| Height | 112 mm |
| Width | 28 mm |
| Depth | 90 mm |
| Application | |
| Suitable for safety functions | No |
| Protection | |
| Explosion safety category for dust | None |
| Explosion safety category for gas | None |
| Package 1 | |
| volume | 661,2 cm3 |
| weight | 223,5 g |
| length | 12 cm |
| width | 9,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480701993 |
| Package 2 | |
| volume | 18000 cm3 |
| weight | 3,612 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 15 |
| qmin | 15 |
| um | CT |
| gtin | 43606480701991 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 65,8 kg |
| length | 60 cm |
| width | 80 cm |
| qmax | 240 |
| qmin | 240 |
| um | PF |
