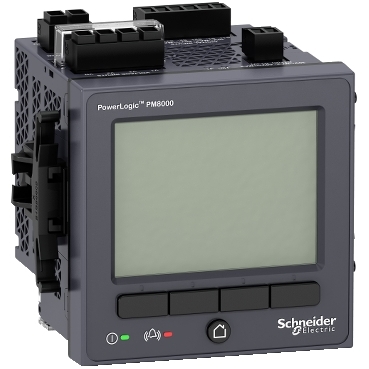

Powerlogic Pm8000 - Pm8240 Contor Cu Montare Pe Panou - Contorizare Intermediara
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Max. current (Imax) | 10 A |
| Voltage type | AC/DC |
| Nominal current (In) | 10 A |
| Options | |
| Effective power | Yes |
| Power factor | Yes |
| Min. value storage | Yes |
| Calibrated | Yes |
| Frequency measurement | Yes |
| Apparent power | Yes |
| Harmonics measurement | Yes |
| Measured value memory | Yes |
| Reactive power | Yes |
| Step angle (cos phi) | Yes |
| Max. value storage | Yes |
| Model/type | |
| Model | Measurement transformer |
| Pole type | Three conductor/four conductor |
| Measurement type load profile | Yes |
| Other | |
| Pulse output | Electrical |
| Measuring range | 100 V |
| Indication | Graphic |
| Measurements | |
| Height | 96 mm |
| Width | 96 mm |
| Communication | |
| Wth communication interface M-Bus | No |
| With communication interface according to EN 62056-21 | No |
| Supporting protocol for Modbus | Yes |
| With communication interface RS-485 | Yes |
| Supporting protocol for LON | No |
| With communication interface KNX | No |
| Mounting/installation | |
| Mounting method | Front mounting |
| Performance | |
| Accuracy class | 0.2 |
| Package 1 | |
| volume | 3421,575 cm3 |
| weight | 840,5 g |
| length | 18,5 cm |
| width | 13,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480701931 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 7,124 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 8 |
| qmin | 8 |
| um | CT |
| gtin | 43606480701939 |

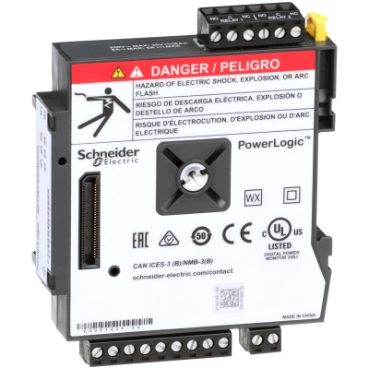

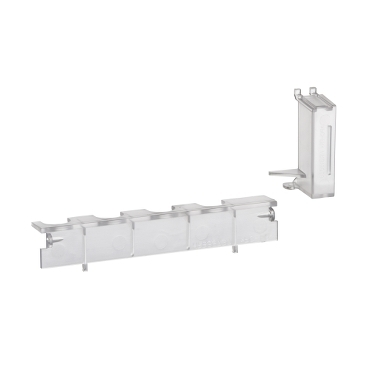

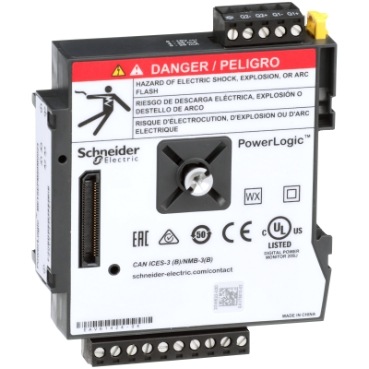

Accesorii
