Descriere

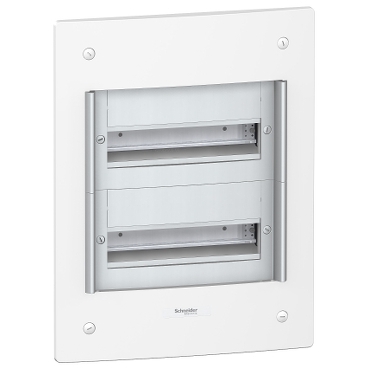

Cofret cu Montaj Incastrat Pragma, Ip40, 2X13 Module, fara Usa
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Specificatii
| Mounting/installation | |
| With mounting plate | No |
| Mounting method | Flush-mounted |
| Measurements | |
| Built-in depth | 86 mm |
| Width in number of modular spacings | 13 |
| Built-in height | - |
| Height | 480 mm |
| Inner depth | 84 mm |
| Width | 366 mm |
| Built-in width | - |
| Depth | 21 mm |
| Model/type | |
| Type of covering | Cover |
| Transparent cover/door | No |
| Cover model | With notch |
| Type of closure | Other |
| Number of rows | 2 |
| With lock | No |
| EMC-version | No |
| Earthing terminal block | Yes |
| Neutral terminal block | No |
| Options | |
| Extension possible | No |
| Signal passing door | - |
| DIN-rail | Yes |
| Colour | |
| RAL-number | 7004 |
| Colour | Grey |
| Protection | |
| Degree of protection (IP) | IP40 |
| Material | |
| Housing material | Plastic |
| Package 1 | |
| volume | 30051 cm3 |
| weight | 3,64 kg |
| length | 53 cm |
| width | 42 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3303432391812 |
| Package 2 | |
| volume | 1152000 cm3 |
| weight | 124,84 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 31 |
| qmin | 31 |
| um | PF |
