Descriere

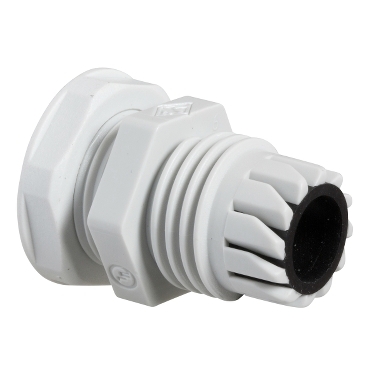

Presetupa Cablu, Pg21
Documente
Fisa tehnica
Altele
Declaratie de conformitate
Specificatii
| Material | |
| Surface protection | - |
| Glass-fibre reinforced | No |
| Material | Plastic |
| Halogen free | Yes |
| Material quality | Polyamide (PA) |
| Options | |
| Bend radius protection/trumpet flare | - |
| For armoured cable | No |
| Multi seal area | No |
| Separable screw gland | Yes |
| Screened | No |
| Snapping in opening | No |
| Model/type | |
| With strain relief | No |
| Model | Straight |
| With locknut | Yes |
| Type of sealing | Sealing ring |
| Flat cable coupling | No |
| EMC-version | No |
| Protection | |
| For Ex-zone gas | None |
| Shock resistant | Yes |
| Degree of protection (IP) | IP65 |
| For Ex-zone dust | None |
| Explosion-tested version | No |
| Measurements | |
| Wrench width | 33 mm |
| Suitable for cable diameter | 14 mm |
| Hexagon angular dimension | - |
| Nominal thread size metric/PG | 21 |
| Nominal thread size inch/gas pipe thread | Other |
| Thread length | 11 mm |
| Operating conditions | |
| Operating temperature | -25 °C |
| Colour | |
| RAL-number | 7035 |
| Colour | Grey |
| Connection | |
| Thread type | PG |
| Pitch thread | 1.59 mm |
| Package 1 | |
| volume | 200 cm3 |
| weight | 27,8 g |
| length | 10 cm |
| width | 5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3303430839958 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 5,387 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 175 |
| qmin | 175 |
| um | CT |
| gtin | 43303430839956 |
