Descriere

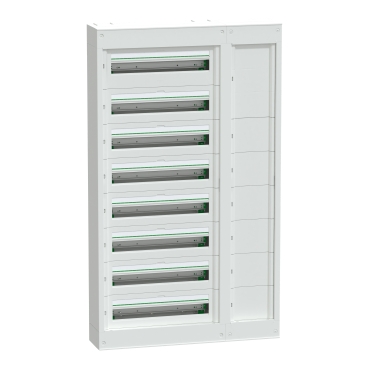

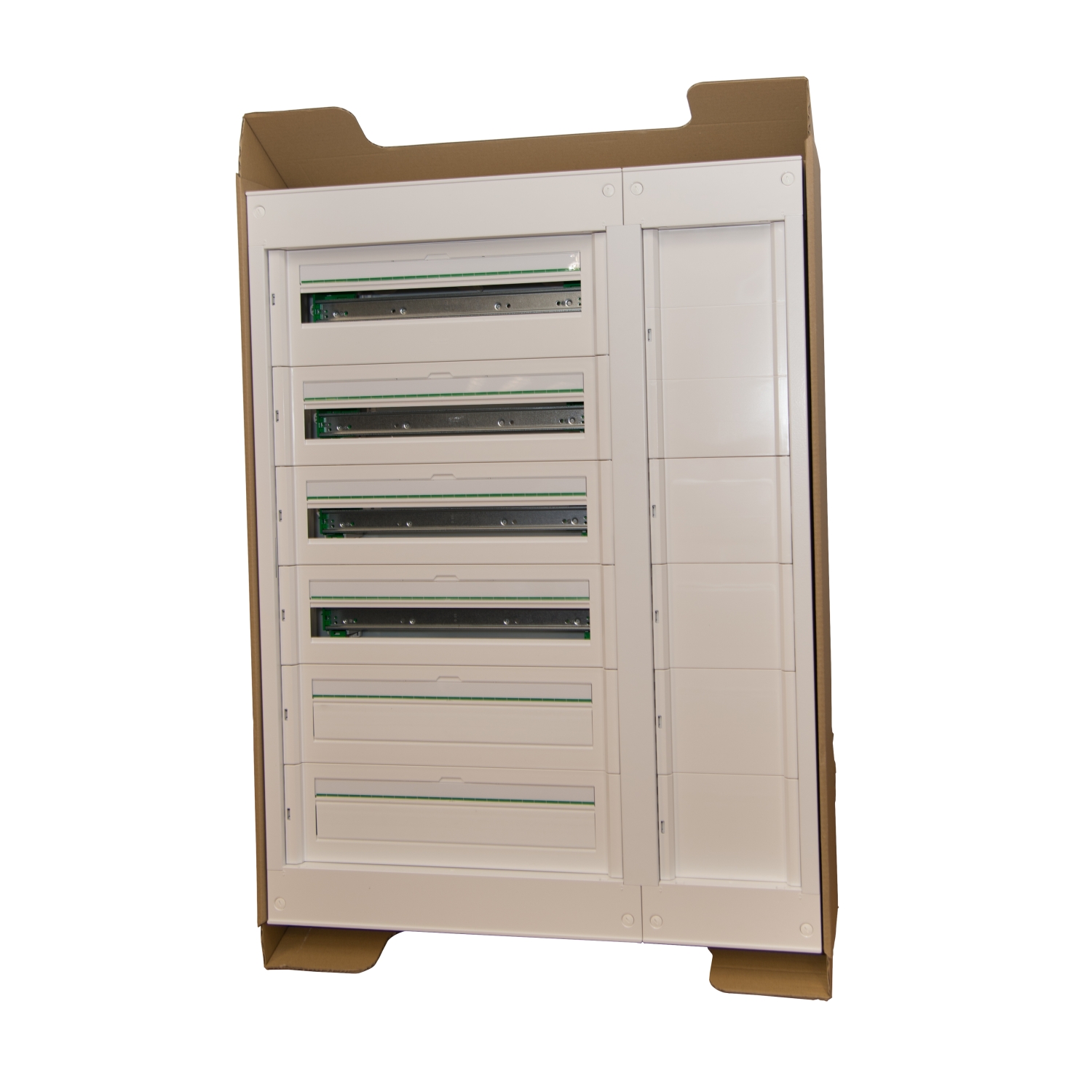

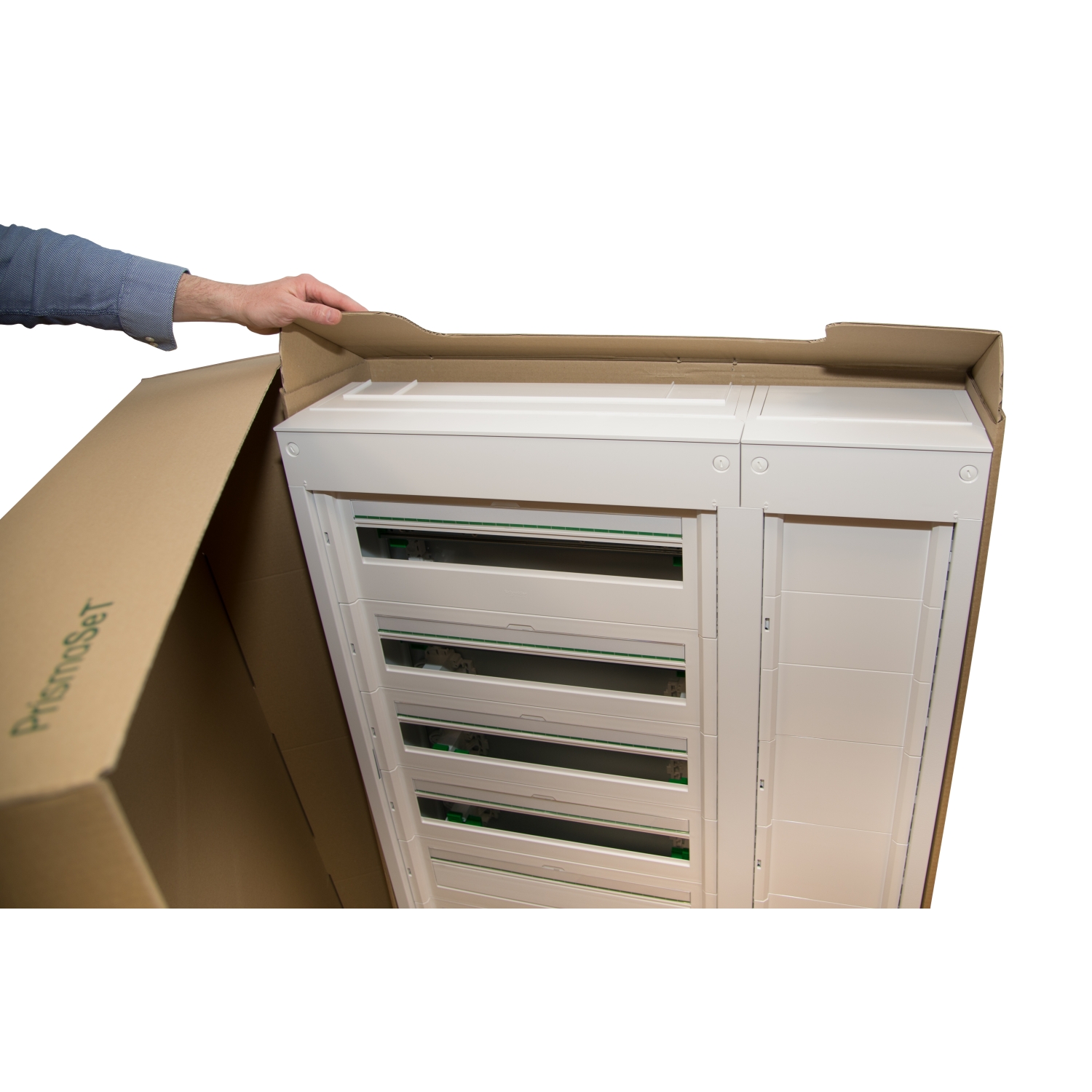

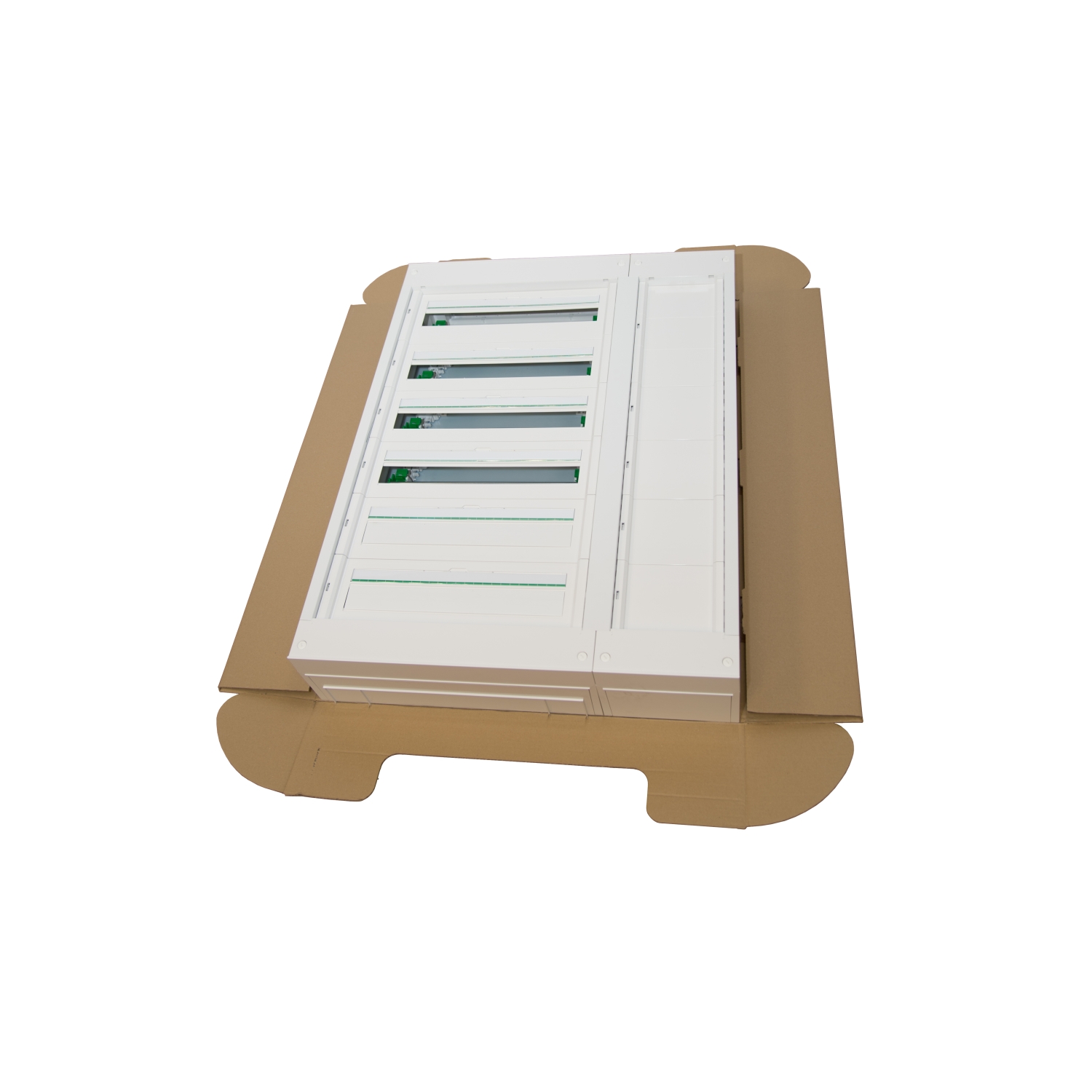

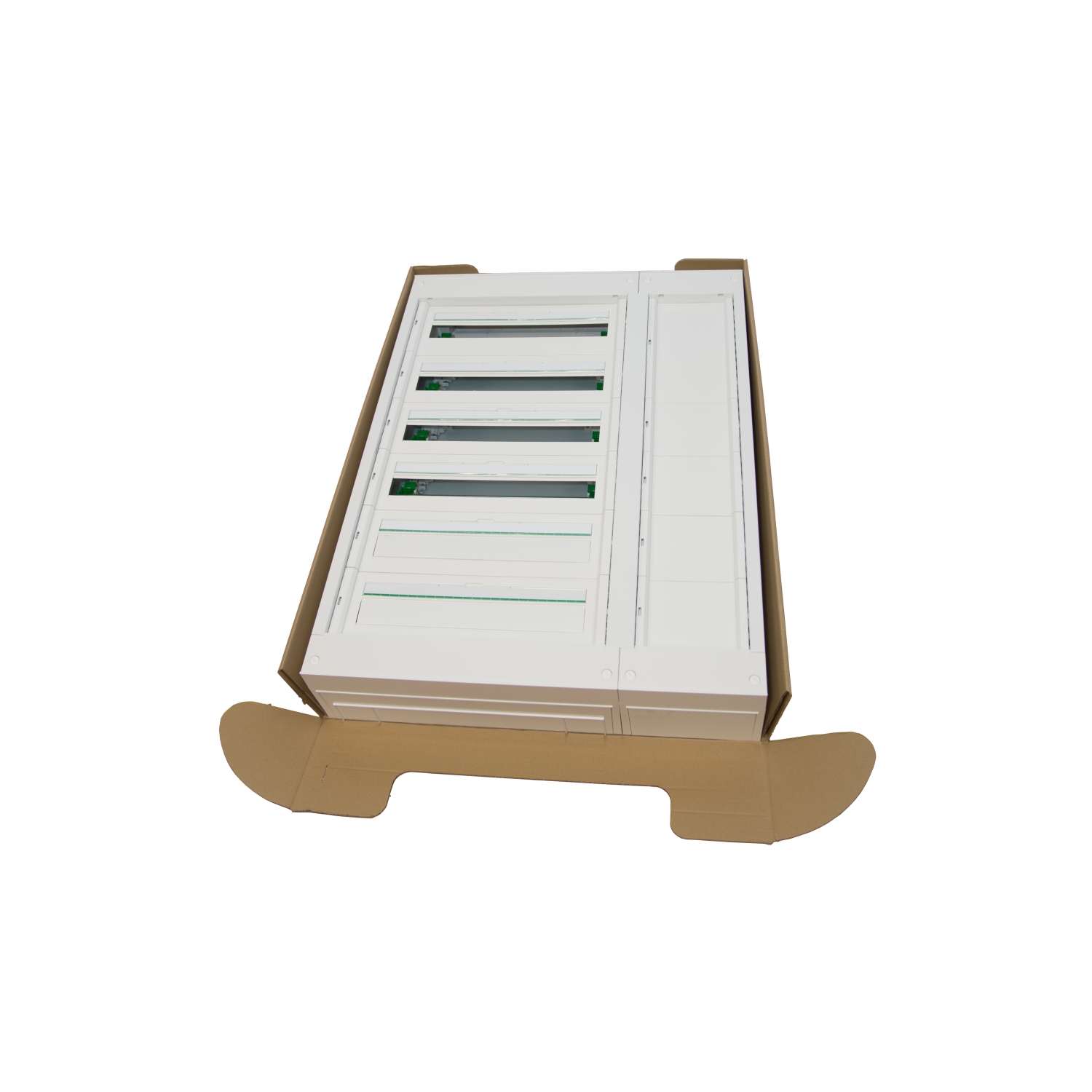

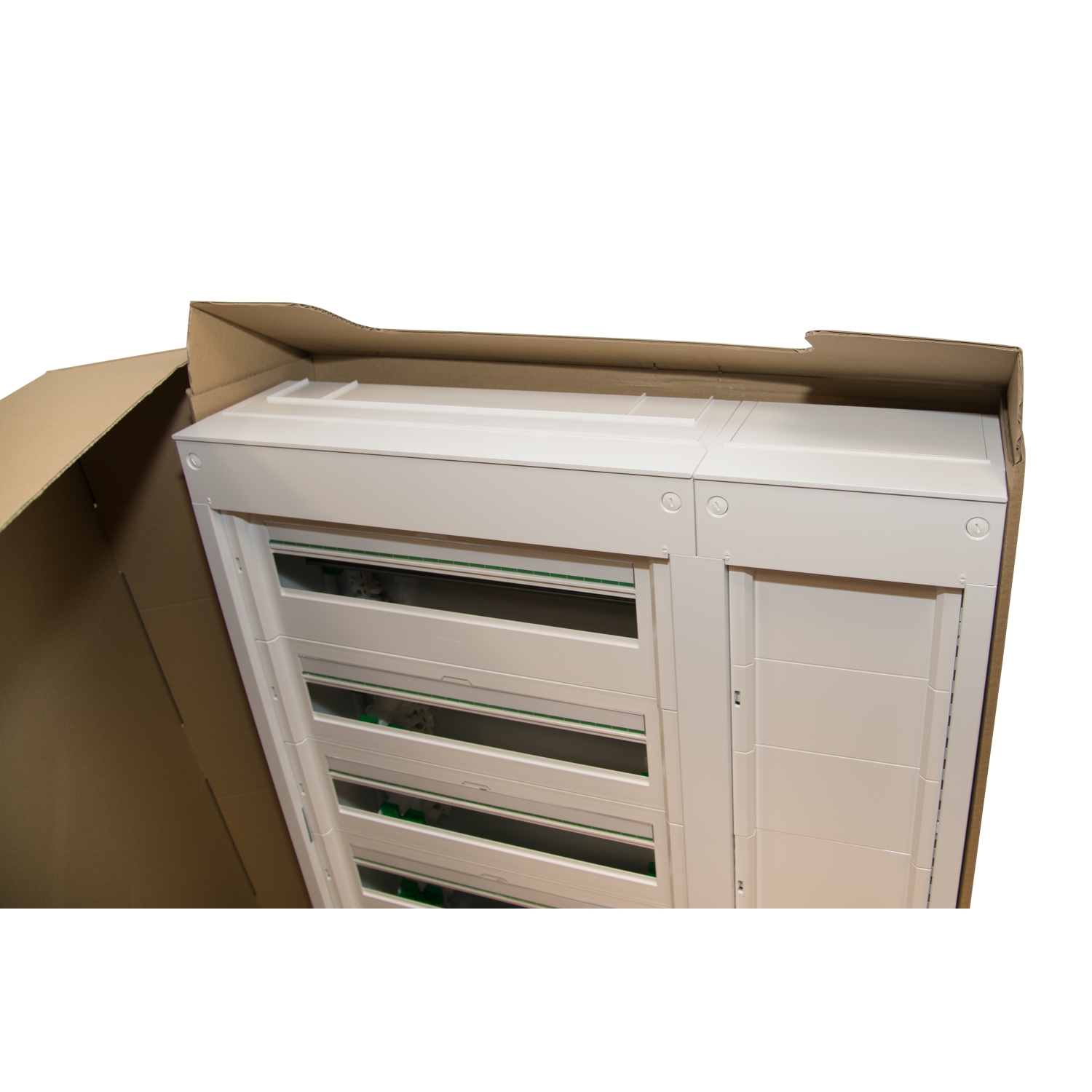

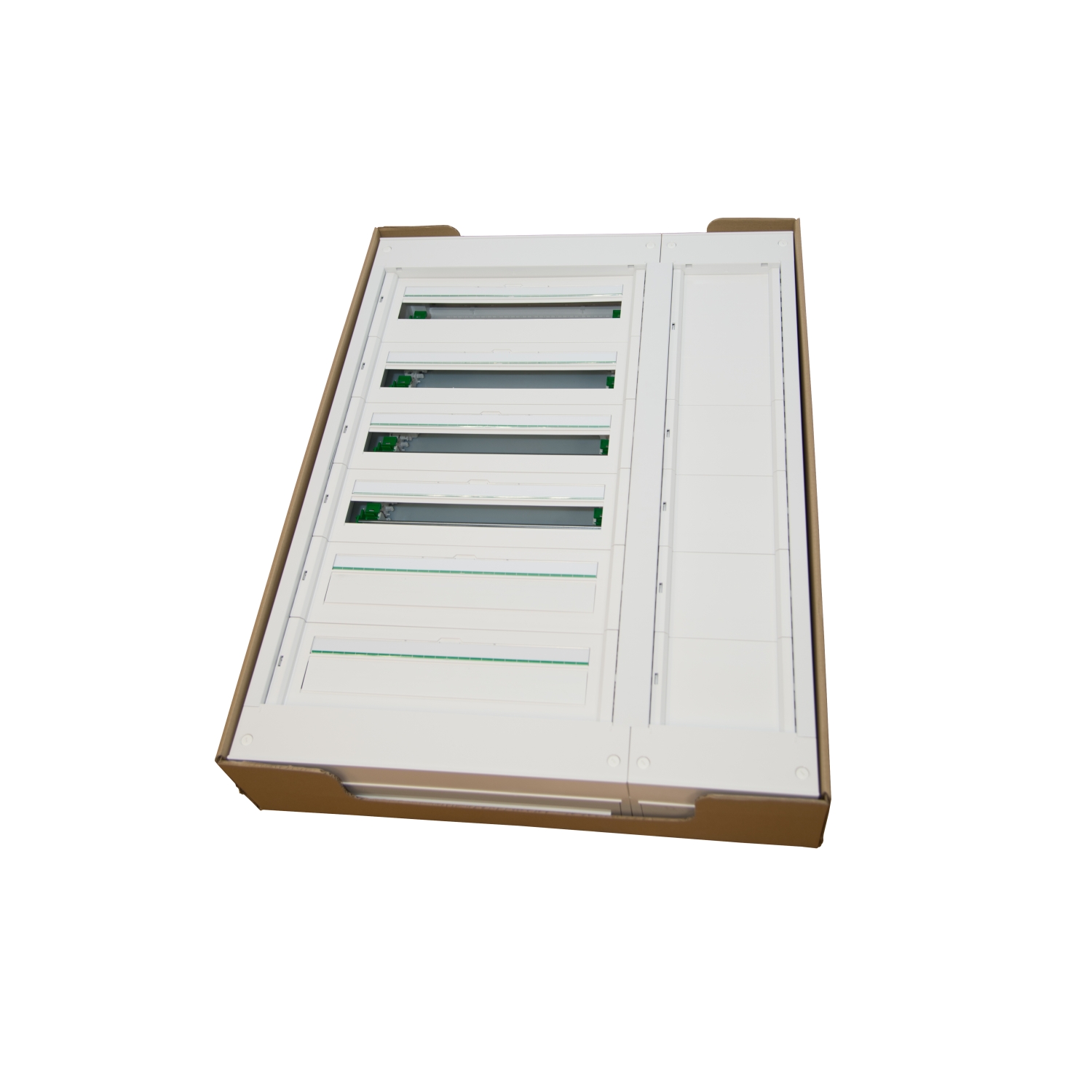

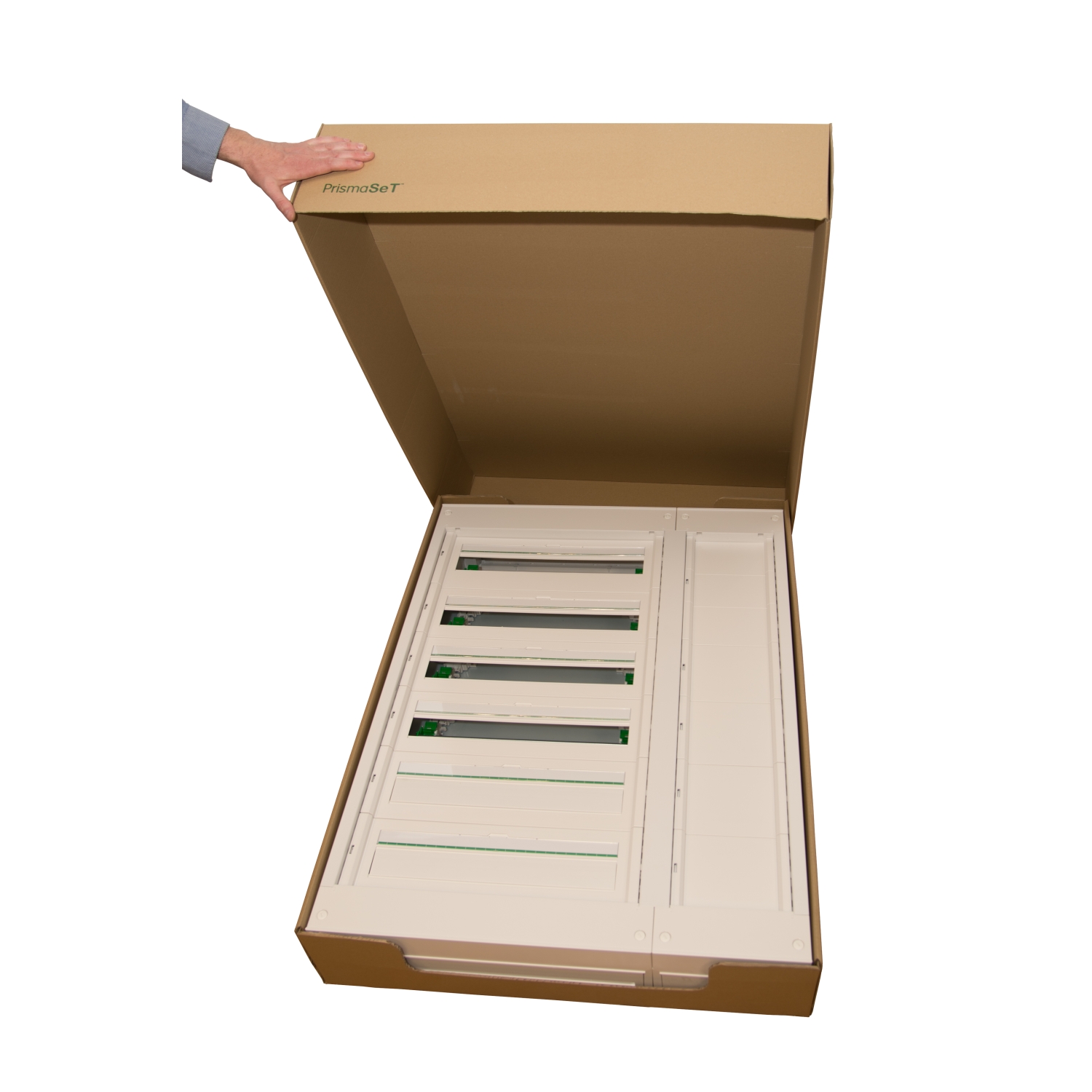

PrismaSet S, PT, 8R, 24M, metal
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Specificatii
| Mounting/installation | |
| With mounting plate | No |
| Mounting method | Surface mounted |
| Model/type | |
| Type of covering | Cover |
| Transparent cover/door | No |
| Cover model | With notch |
| Type of closure | - |
| Number of rows | 8 |
| With lock | No |
| EMC-version | No |
| Earthing terminal block | Yes |
| Neutral terminal block | No |
| Measurements | |
| Built-in depth | - |
| Width in number of modular spacings | 24 |
| Built-in height | - |
| Height | 1406 mm |
| Inner depth | - |
| Width | 820 mm |
| Built-in width | - |
| Depth | 191 mm |
| Options | |
| Extension possible | Yes |
| Signal passing door | No |
| DIN-rail | Yes |
| Colour | |
| RAL-number | 9003 |
| Colour | White |
| Protection | |
| Degree of protection (IP) | IP30 |
| Material | |
| Housing material | Steel |

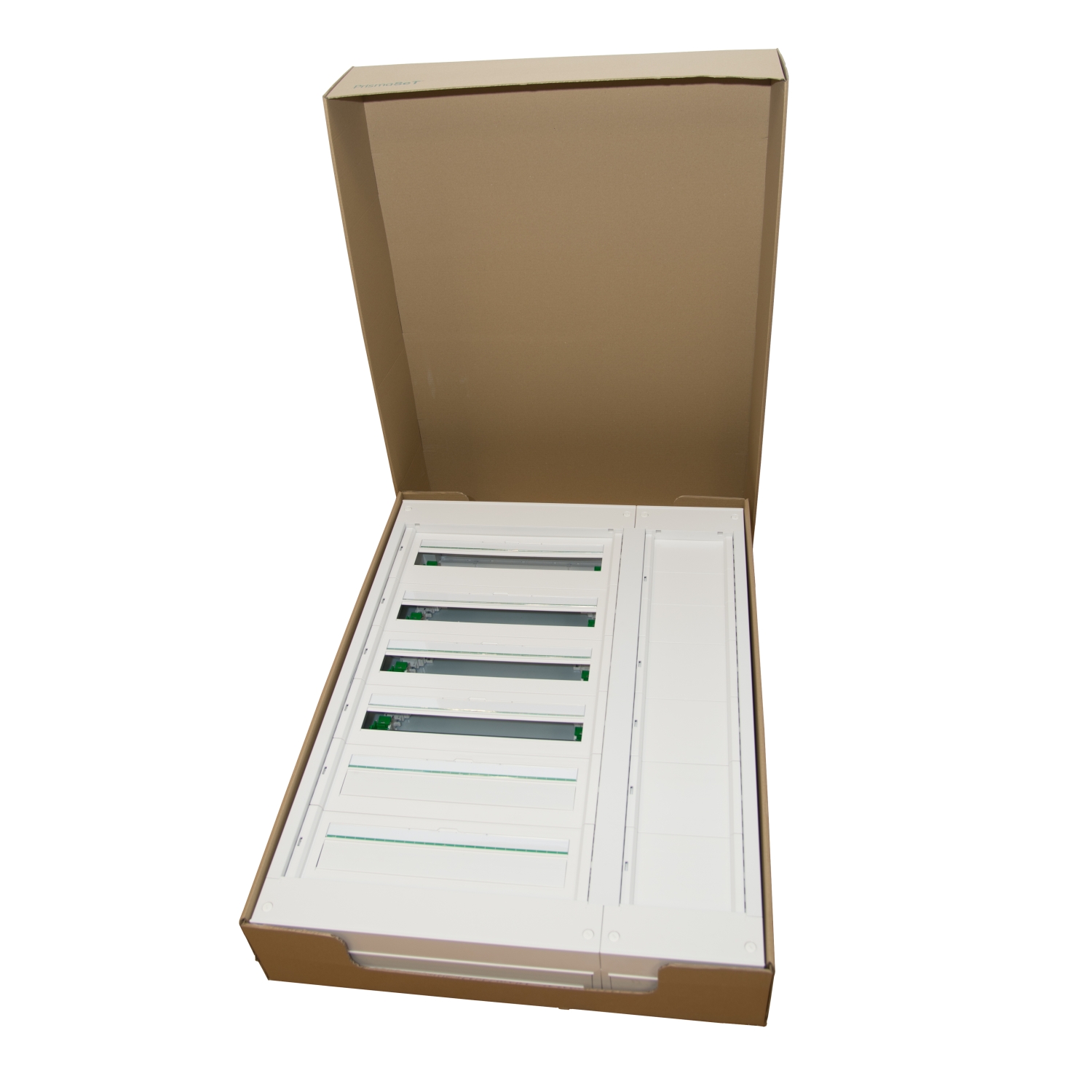

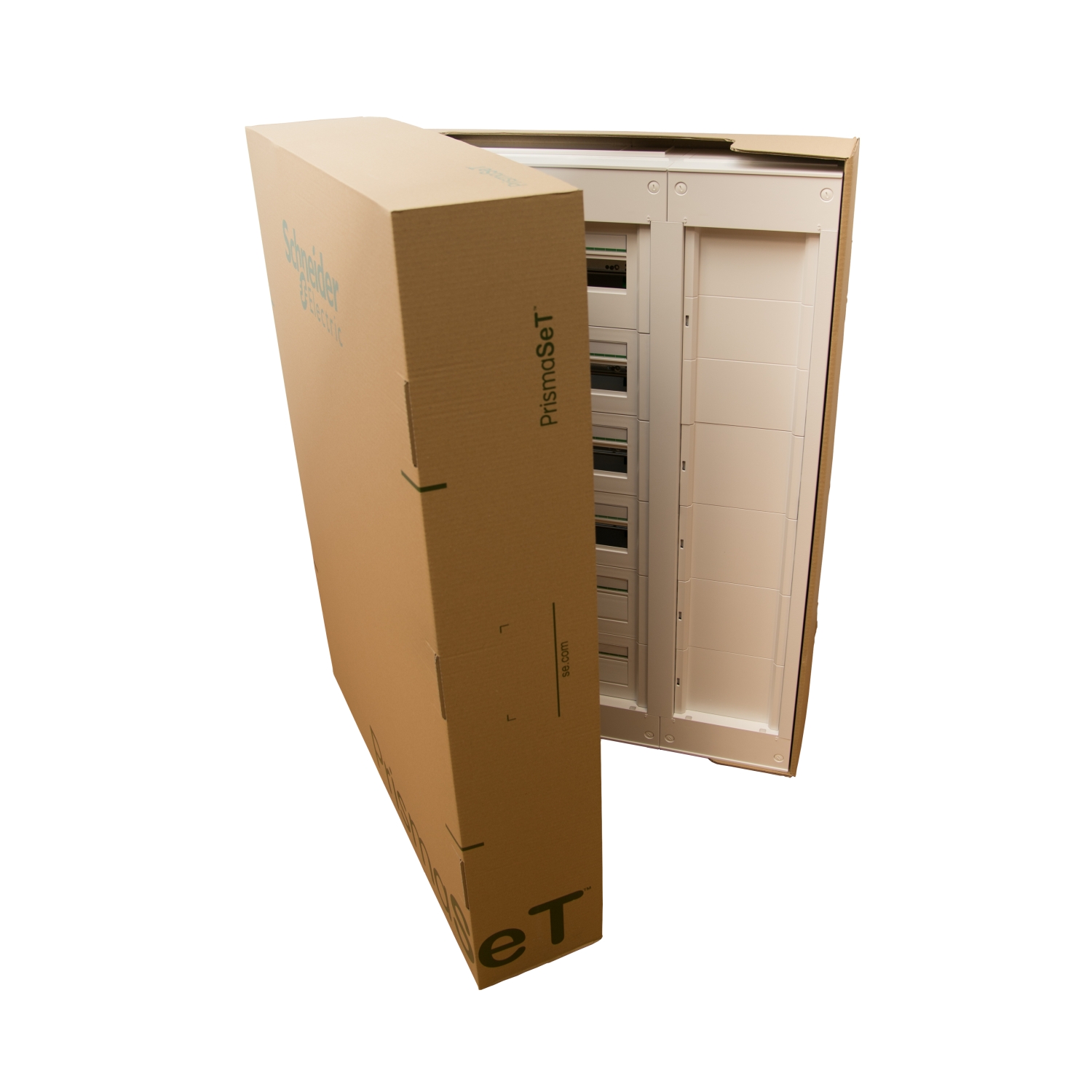

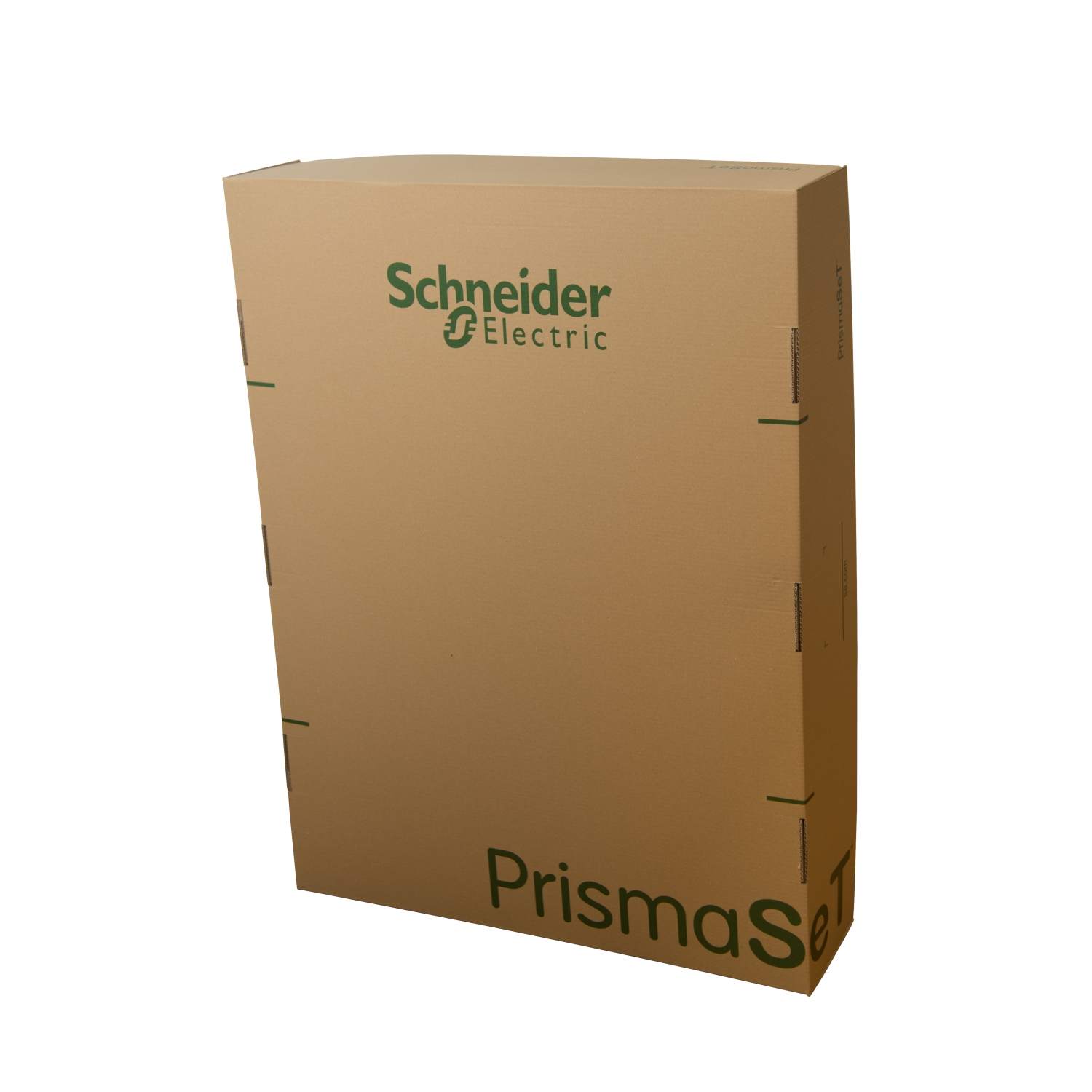

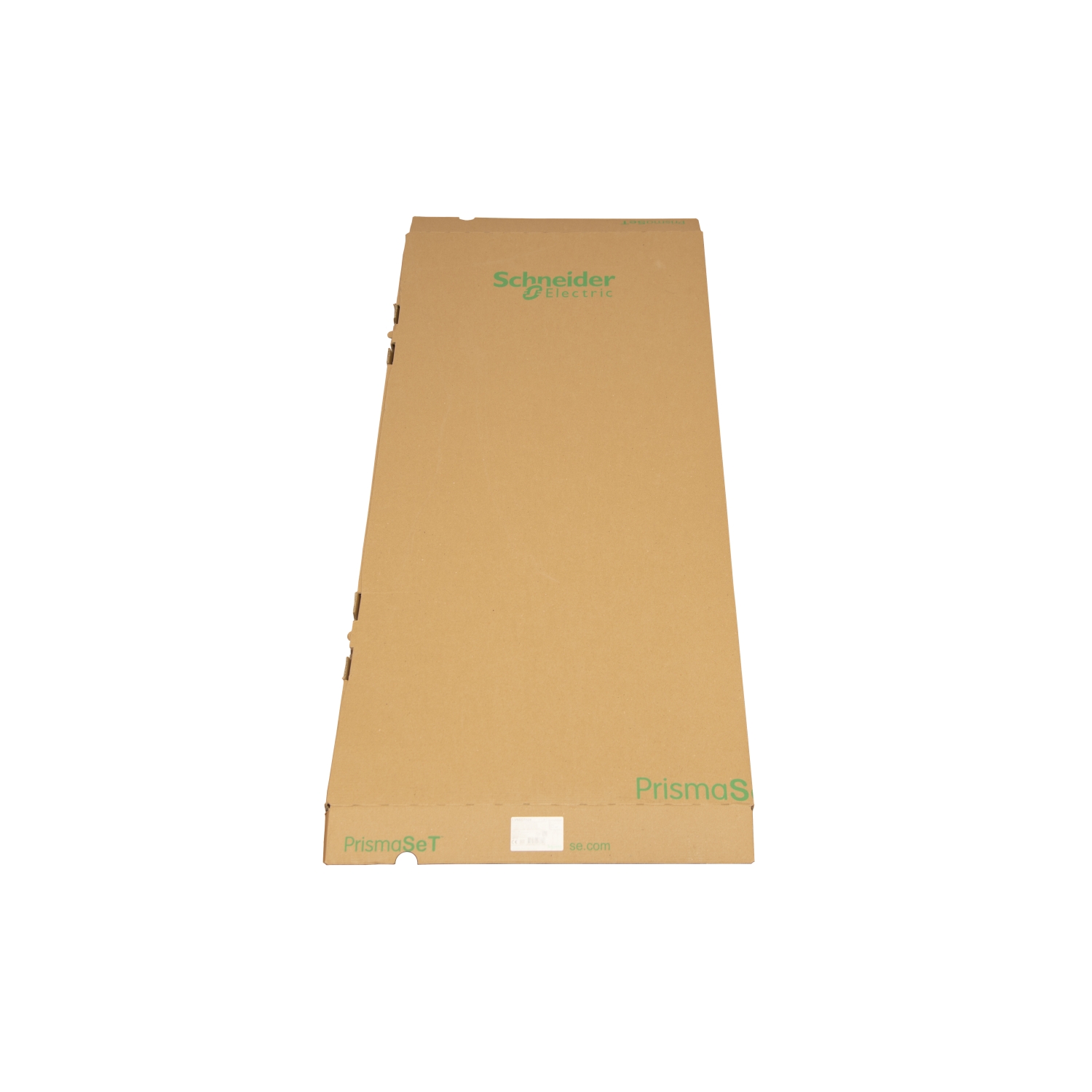

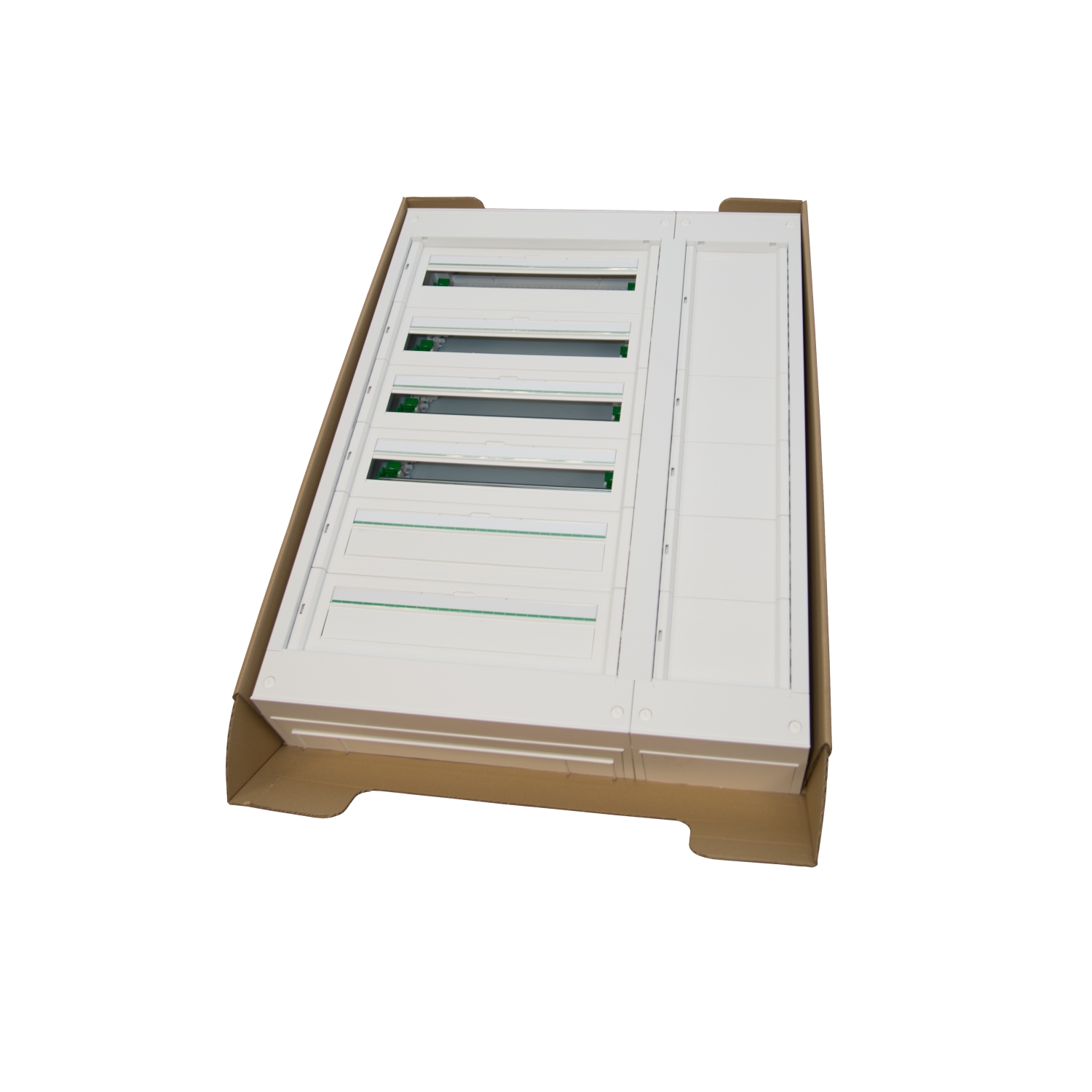

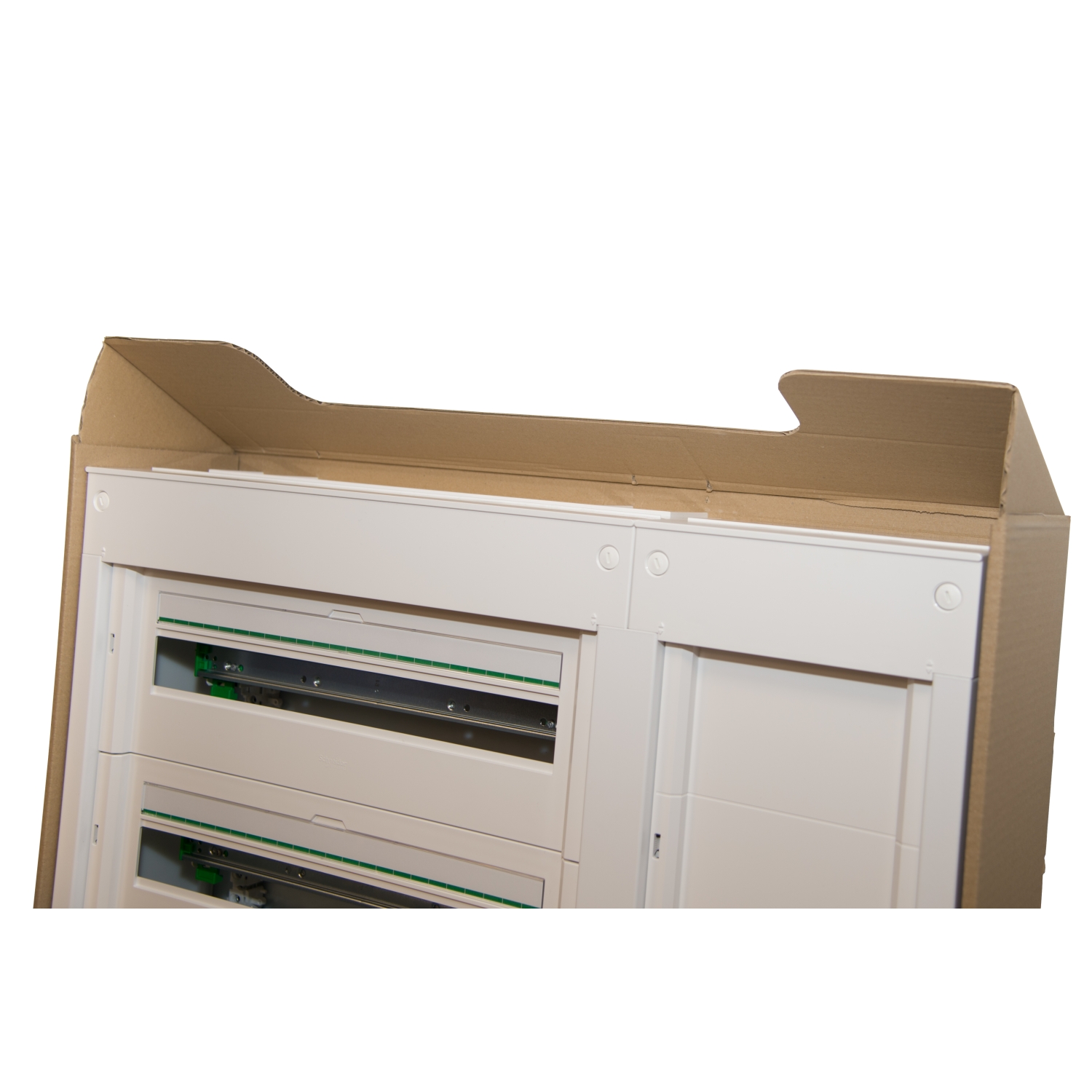

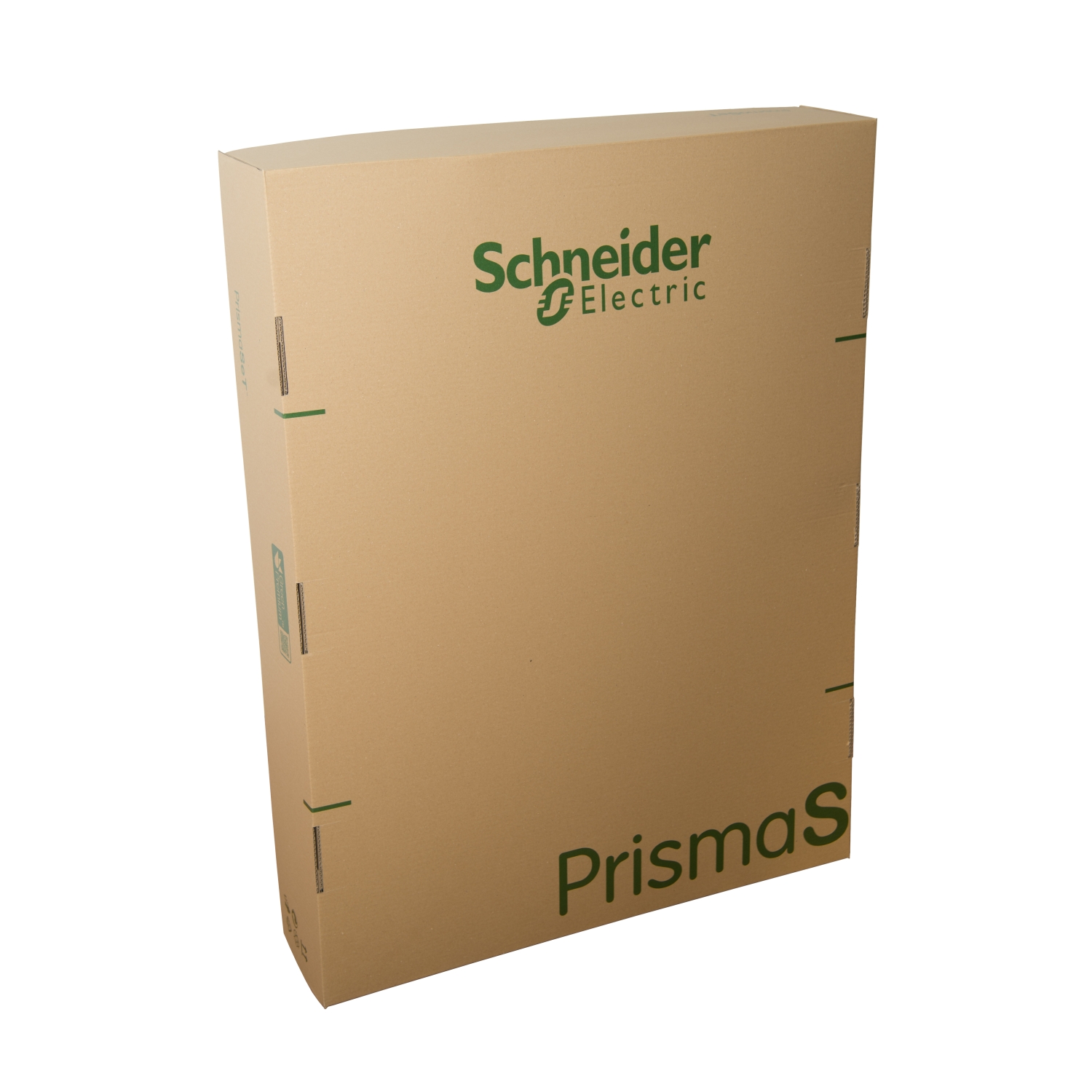

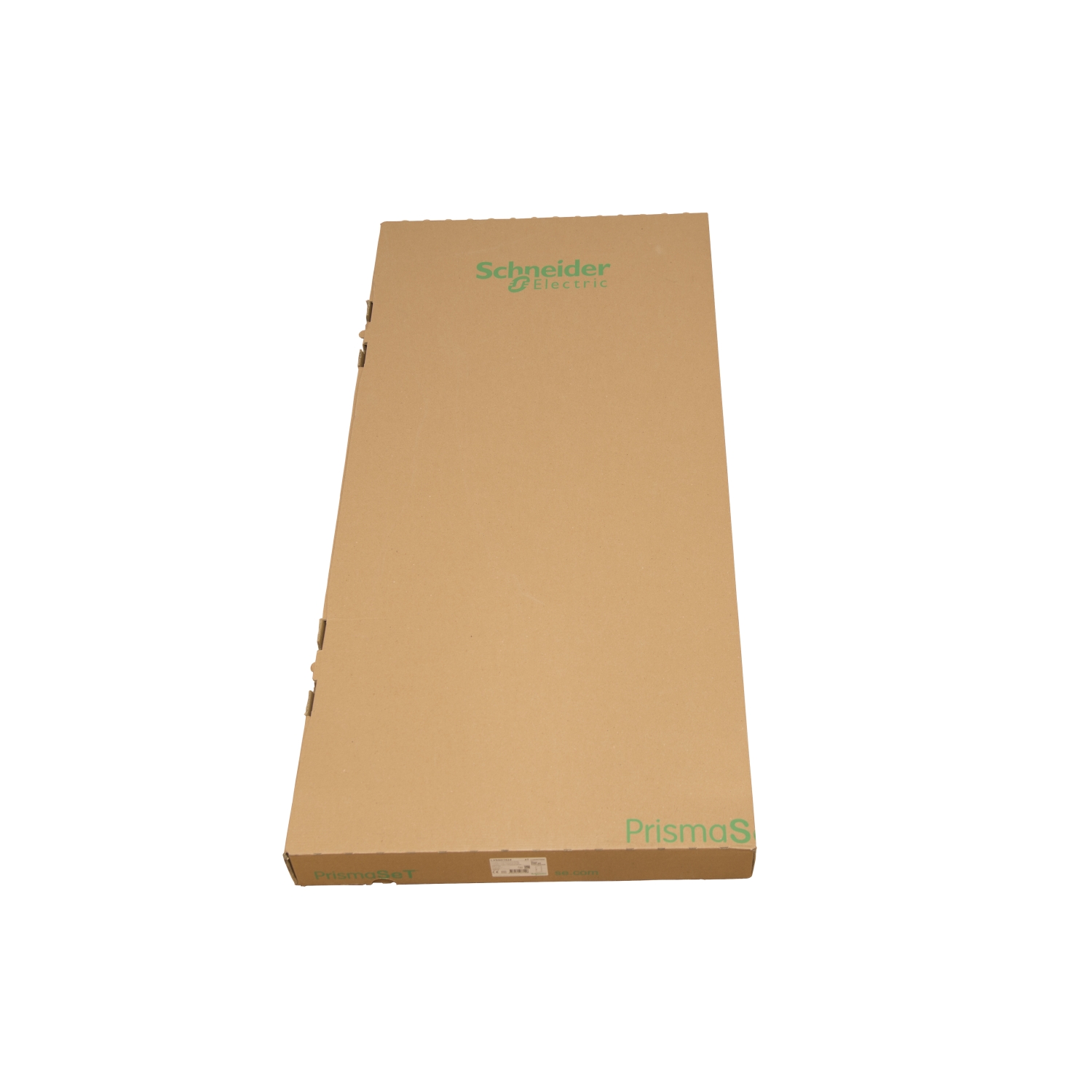

| Package 1 | |
| volume | 261870 cm3 |
| weight | 37,25 kg |
| length | 145 cm |
| width | 86 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481077042 |
| Package 2 | |
| volume | 2352000 cm3 |
| weight | 169 kg |
| length | 200 cm |
| width | 120 cm |
| qmax | 4 |
| qmin | 4 |
| um | PF |
