Descriere

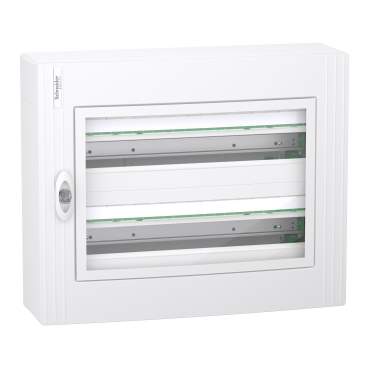

PrismaSet XS, Cofret cu montaj aparent, 2x24 Module, material plastic, usa transparenta, cu 1 bloc terminal
Documente
Fisa tehnica
Instructiuni
Declaratie de conformitate
Specificatii
| Mounting/installation | |
| With mounting plate | No |
| Mounting method | Surface mounted |
| Model/type | |
| Type of covering | Door |
| Transparent cover/door | Yes |
| Type of closure | Other |
| Cover model | Closed |
| Number of rows | 2 |
| With lock | No |
| EMC-version | No |
| Earthing terminal block | Yes |
| Neutral terminal block | No |
| Measurements | |
| Built-in depth | - |
| Width in number of modular spacings | 24 |
| Built-in height | - |
| Height | 450 mm |
| Inner depth | 155 mm |
| Width | 550 mm |
| Built-in width | - |
| Depth | 168 mm |
| Options | |
| Extension possible | No |
| Signal passing door | Yes |
| DIN-rail | Yes |
| Colour | |
| RAL-number | 9003 |
| Colour | White |
| Protection | |
| Degree of protection (IP) | IP40 |
| Material | |
| Housing material | Plastic |
| Package 1 | |
| volume | 77760 cm3 |
| weight | 10,2 kg |
| length | 64 cm |
| width | 54 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606481072924 |
| Package 2 | |
| volume | 988800 cm3 |
| weight | 91 kg |
| length | 120 cm |
| width | 80 cm |
| qmax | 8 |
| qmin | 8 |
| um | PF |
